4.REPLACEMENT OF PARTS
4.2.8.3 Sheet-document / Paper-weight-assy / Spring-PW-ADF

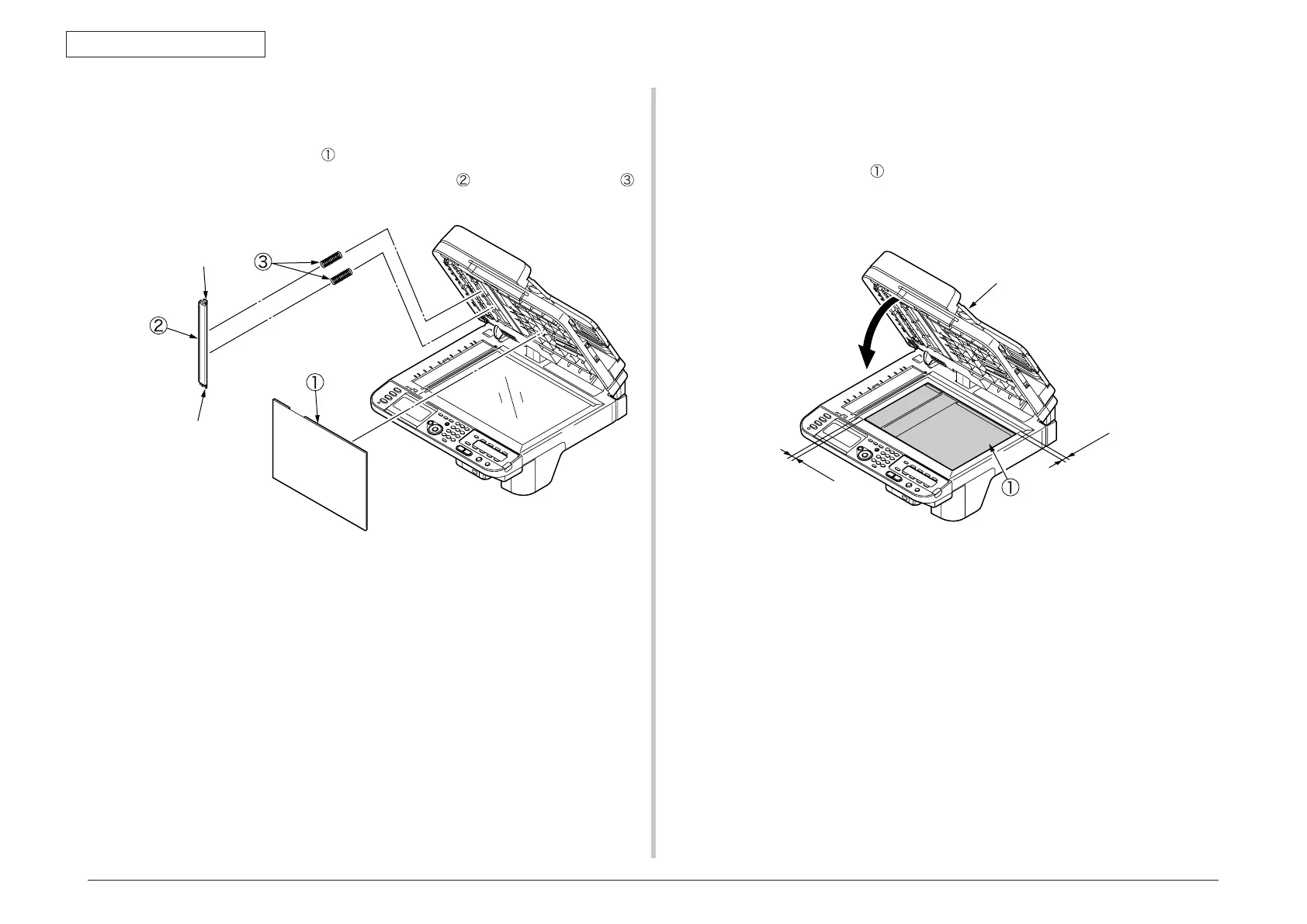

(1) Open the ADF-unit.
(2) Remove the sheet-document
.
(3) Remove two claws to remove the paper-weight-assy
and two spring-PW-ADF .
Claw
Claw
ADF-unit
0.
5
m
m
0
.5
m
m
<Attention of affix the sheet-document>
(1) Degrease the affix area of ADF-unit.
(2) Remove the peeling-off sheet.
(3) Set the sheet-document
(see the figure below).
(4) Close the ADF-unit.
