10.2.3.3 How to Replace Parts
This section describes how to replace parts shown in the following disassembling
procedure.
In the part replacement procedure, parts on which a part number is displayed in white
figure in the black circle are RSPL.
Second Tray unit Roller-Pick-Up, Roller-Feed-Now (3.3.1)
Guard-Connector, Connector(9715S-08Z02-G4C) (3.3.2)
Board-GOG (3.3.3)
CONN Cord-AMP8P-AMP8P (3.3.4)
Gear-Assy-Clutch (Hop , Regist ) , Motor - Pulse (3.3.5)
Frame-Assy-Retard, Spring-Retard (3.3.6)

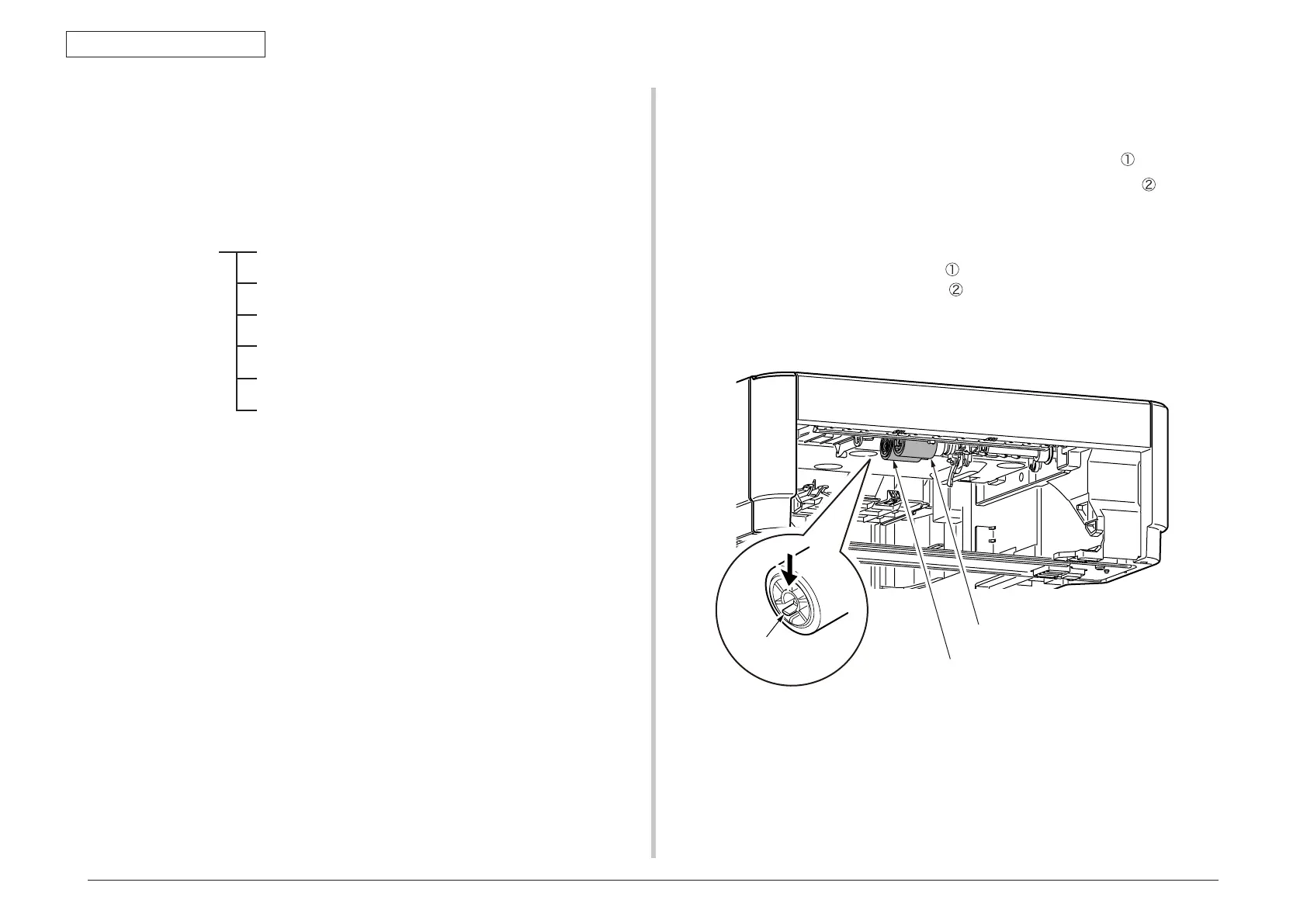

10.2.3.3.1 Roller-Pick-Up, Roller-Feed-Now
(1) Remove Cassette-Assy.
(2) Push the tab in the direction of the arrow to remove Roller-Pick-Up
.
(3) Push the tab in the direction of the arrow to remove Roller-Feed-NOW
.
(4) As for reinstalling, take the opposite sequence to removal sequence.
(Precautions on reinstalling)
1. When reinstalling Roller-Pick-Up
, push it until it clicks.
2. When installing Roller-Feed-Now
, push it until it clicks.
Tab
②
①
