44871001TH Rev.6
4-51
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS

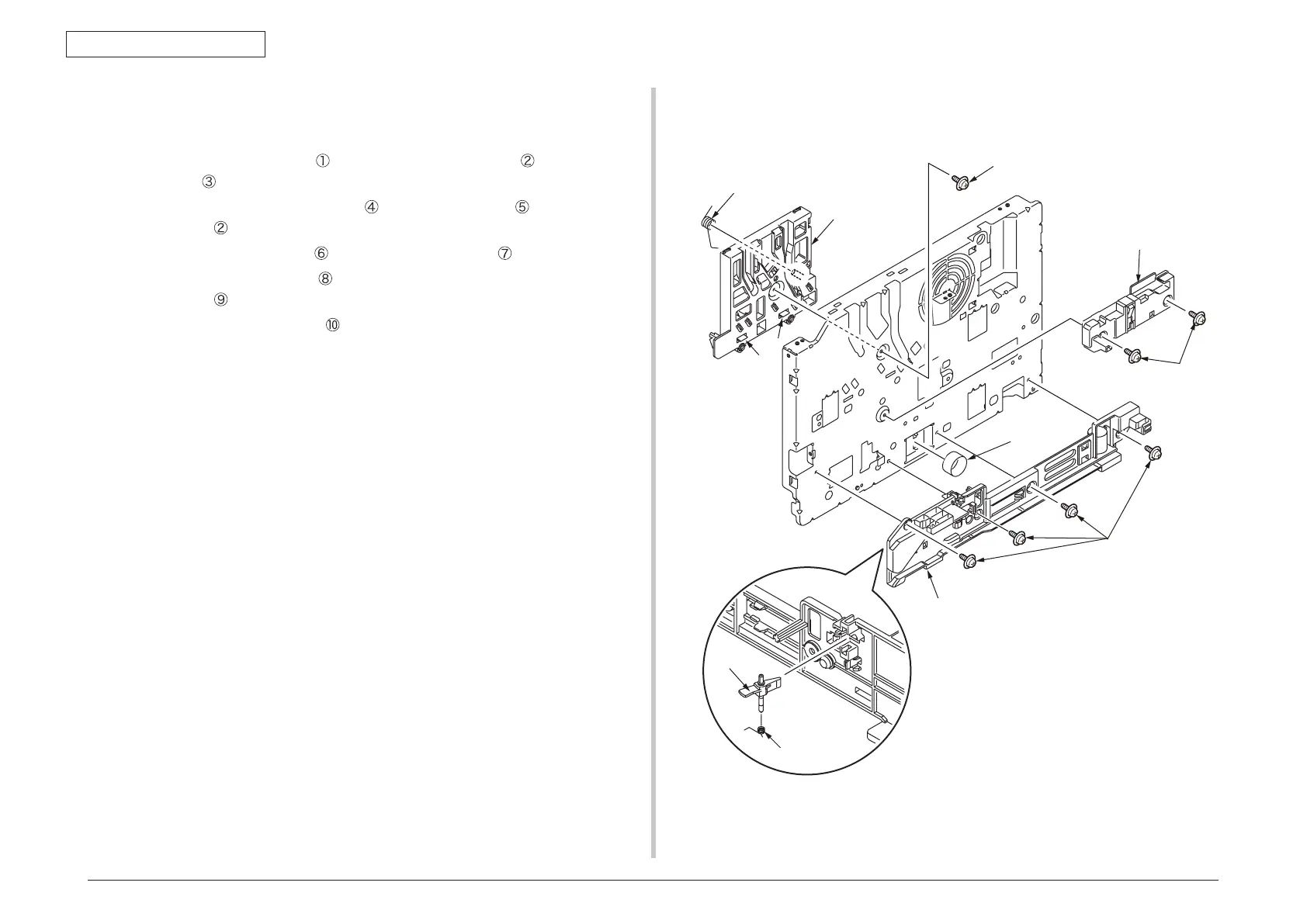

4.2.24 Plate Side L Assy
(1) Separate the Plate Side L Assy. (Refer to 4.2.23)
(2) Remove four screws (Silver)
. Remove the Guide-Cassette-L and Spring-Lock-
Cassette .
(3) Remove Lever-Sensor Cassette
and Spring-Sensor from the Guide-
Cassette-L .
(4) Remove two screws (Silver)
. Remove the Frame-inner-L .
(5) Remove the screw (Black)
, disengage the two tabs (a and b), and remove
Guide-ID-L .
(6) Remove the Spring-ID-Lock-L
.
(7) Installing is performed by the inverse procedure with removing.
Note!
1. Beware of not to touch the DC motor inattentively (Do not rotate motor).
①
⑤
④
②
③
⑥
⑨
⑩
⑦
a
b
To Next Page
