Oki MB461 - Scanner

Oki Data CONFIDENTIAL
44871001TH Rev.6
5-11

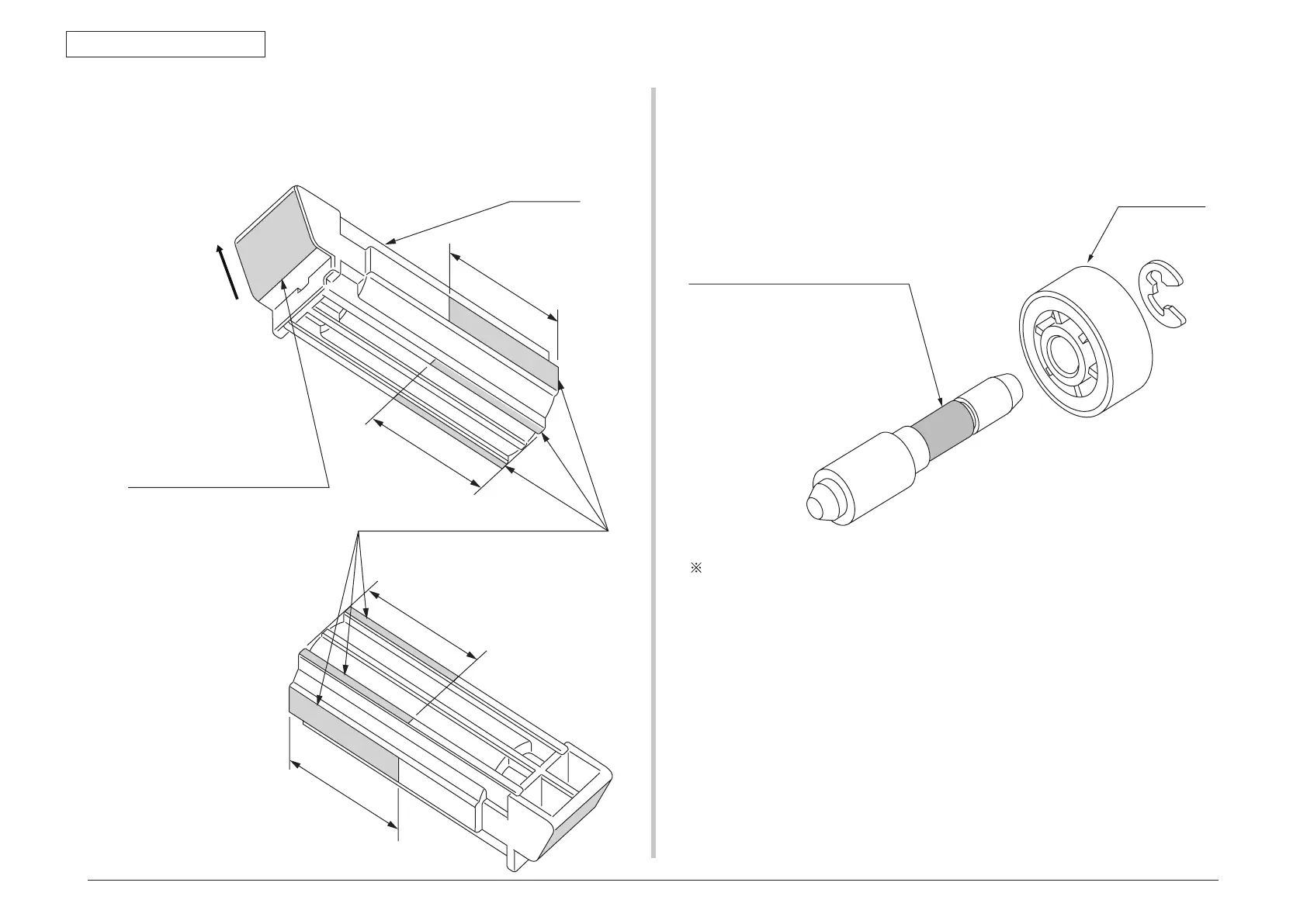

5. Lubricating point
①
44909201PA Plate Assy-Stay (R) : [FN296/7]
②
44659101PA Gear-Idle-Assy
5.1.2 Scanner
Slider-Hinge
EM-D110 Class C
Apply a small amount of MPLYKOTE
(EM-D110) to the sliding surface.
(hatched areas)
EM-D110 Class C
Apply a small amount of MPLYKOTE
(EM-D110) to the sliding surface.
(hatched areas)
Application Direction
(30)
(30)
(30)
(30)
Gear-Planet
SF-133 Class C
Apply a normal amount of HANARL
(SF-133) to the hatched area.
(all circumference of post)
Leave it for about 3minutes (drying time) after painting HANARL SF-133, and then
assemble the Gear-Idle-Assy.
