4.REPLACEMENT OF PARTS
4.2.7 SW Assy

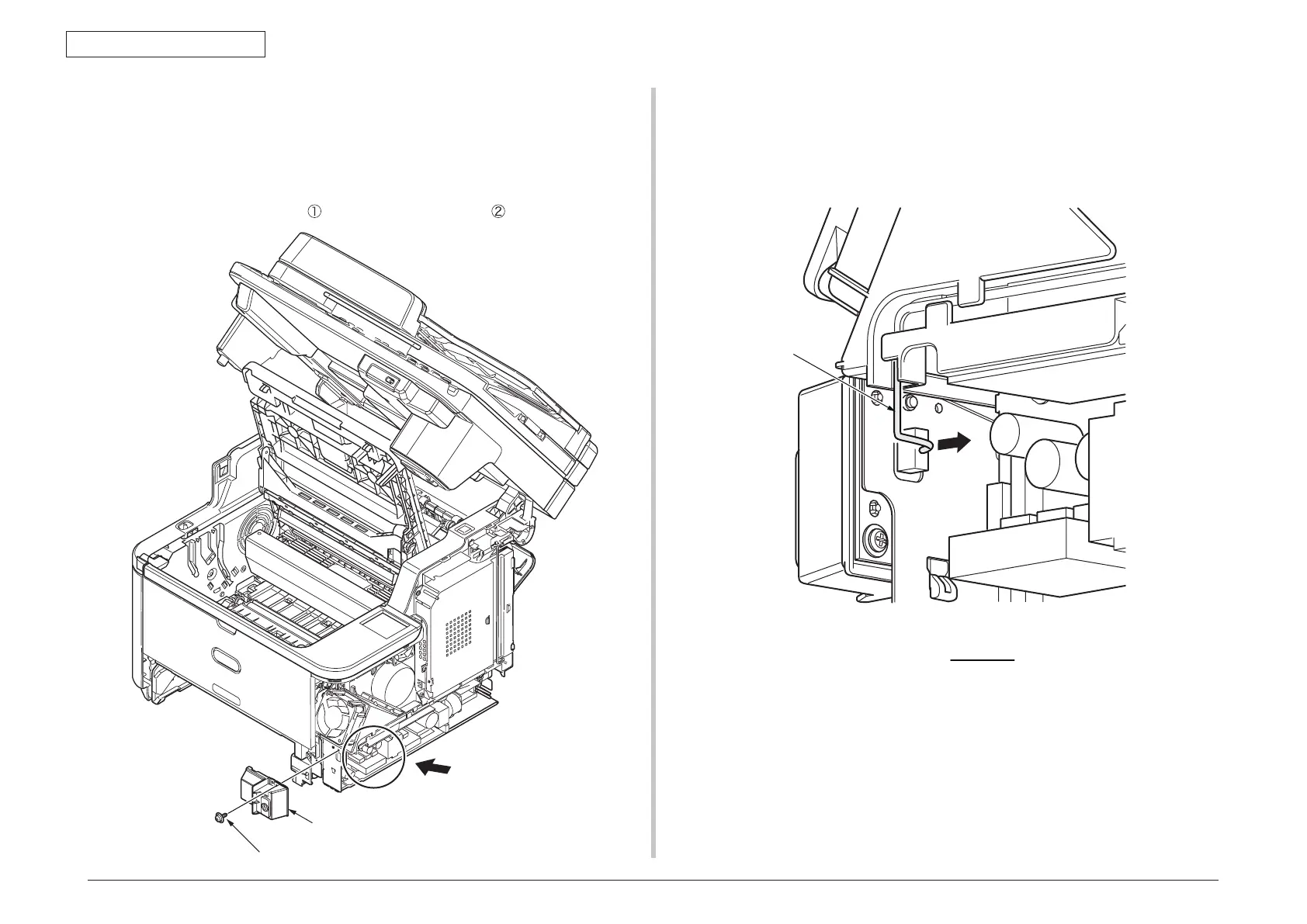

(1) Remove the Cover Side (R). (Refer to 4.2.2)
(2) Close the Frame-Assy-MPT.
(3) Remove the Cable.
(4) Remove the Screw (Silver)
and to detach the SW Assy .
①
②
View A
Cable
View A
