44871001TH Rev.6
4-24
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS

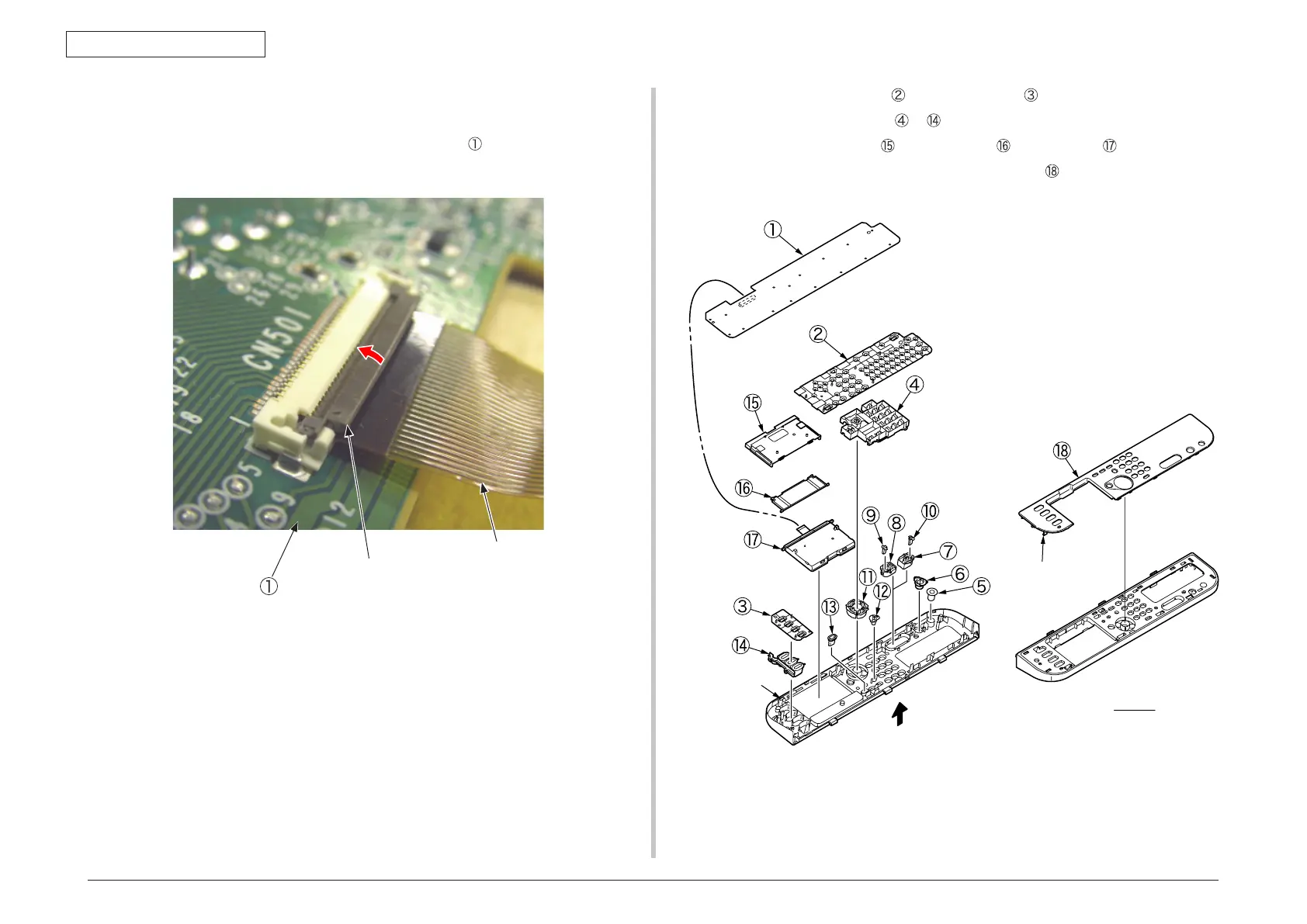

4.2.8.12 Frame-OP-panel / OPE board
(MB441/MB461/MB461+LP/ES4161 MFP)
(1) Remove eight claws to remove the OPE board (OPM) .
(2) Remove the LCD cable, while part A is raised in the direction of arrow.
ViewA
ViewA
8 × claws
11 × Latches
Method of removing LCD cable
(3) Remove the rubber-pad (R)
and rubber-pad (L) .
(4) Remove the button and lens
to .
(5) Remove the cover bottom
and cover-cable
and LCD-assy .
(6) Remove eleven latehes to remove the cover-op-panel
.
Part A
LCD cable
To Next Page
