6. MAINTENANCE MENUS
44871001TH Rev.6
6-13
6.4 Self-diagnostic mode
This section describes LEVEL 0 and LEVEL 1.

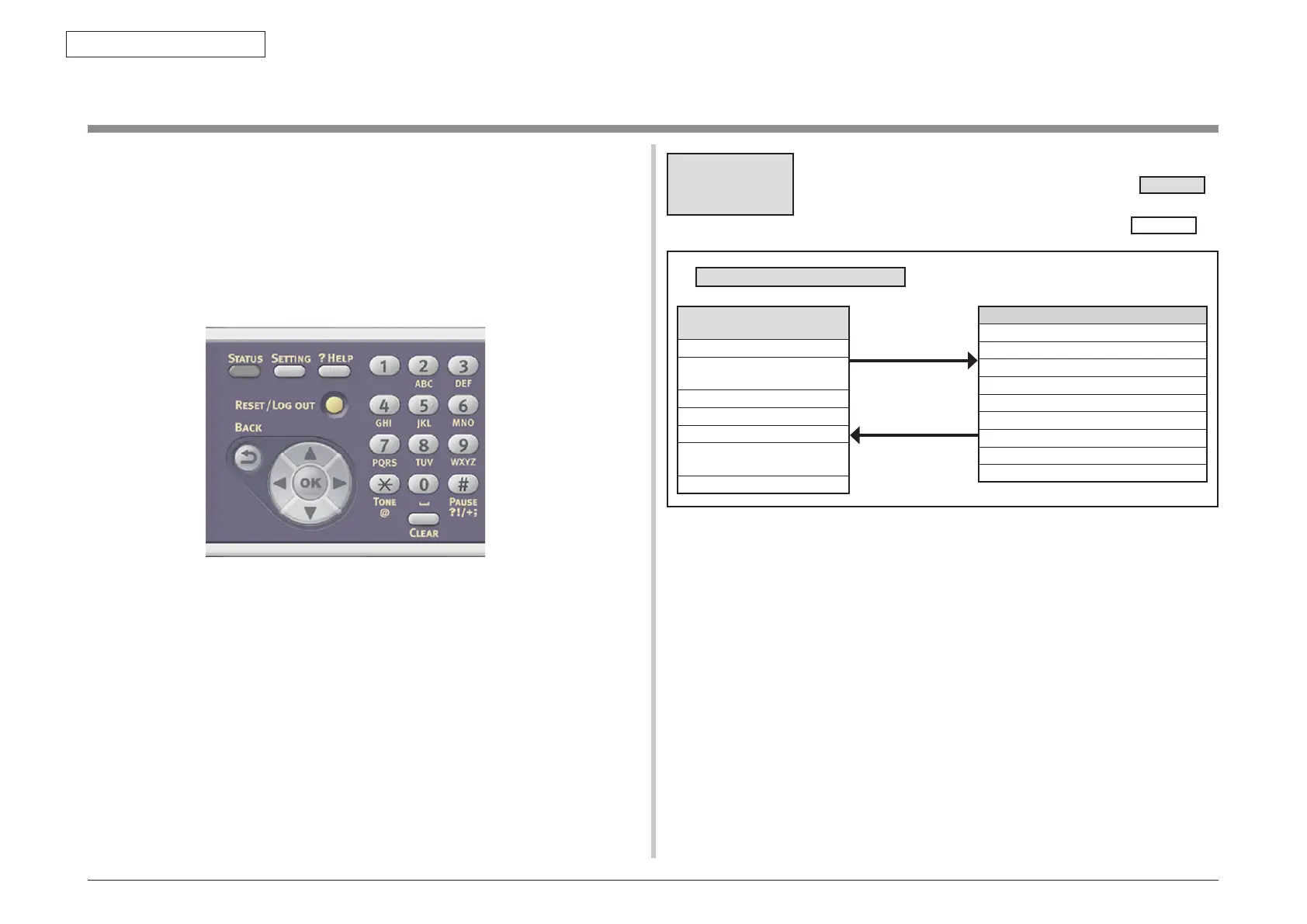

6.4.1 Operator Panel
The following operational description on the self-diagnostic is premised on the following
operator panel layout:
Example : MB461
Self-diagnostic
mode layout (entire)
(1) Menu option switching
Only while displayed as shown in a shaded area (
XXXXX
),
the level of the self-diagnostic mode can be switched. [2] or [8] is
used to switch to the option in a non-shaded area (
XXXXX
).
LEVEL0- engine status
display
Engine status display
Respective voltages display
during print
Toner sensor monitor
Toner pulse count monitor
Toner TAG noise test monitor
Motor controls evaluation
function
Error detail
LEVEL1-ENGINE DIAG MODE XX.XX
SWITCH SCAN
MOTOR & CLUTCH TEST
TEST PRINT
CONSUMABLE STATUS
PRINTER STATUS
FACTORY MODE SET
SENSOR SETTING
LED HEAD DATA
NVRAM PARAMETER
Normal operation mode
[6]
[6]
