Oki MB461 - ADF-Unit

44871001TH Rev.6
4-15
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS
4.2.8.2 ADF-unit

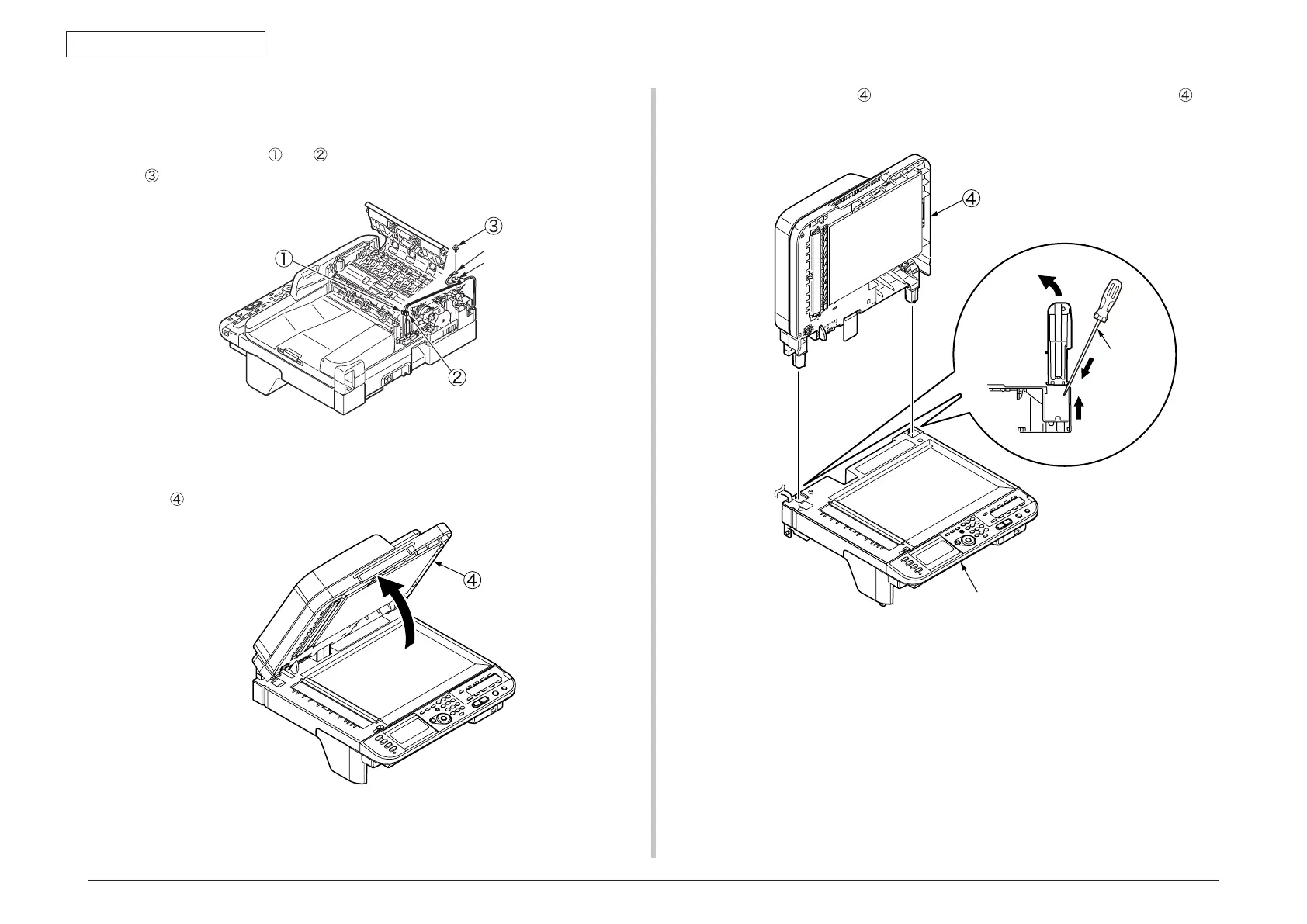

(1) Remove the cover-ADF-R-assy. (See 4.2.8.1)
(2) Detach a connector
and from the ADF board (MHD), and remove the screw
to remove the FG cable.
FG cable
Clamp cable
(3) Remove the clamp cable and pull the cables out of the hinge, and Open the ADF-
unit .
(4) Remove the ADF-unit by insert the screwdriver to gap between ADF-unit and
flatbed-unit.
Flatbed-unit
Screwdriver (-)
