Oki MB461 - Hopping Clutch; MPT Clutch; Regist Clutch

44871001TH Rev.6
4-34
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS
①
②
③④
⑤
⑥
⑦

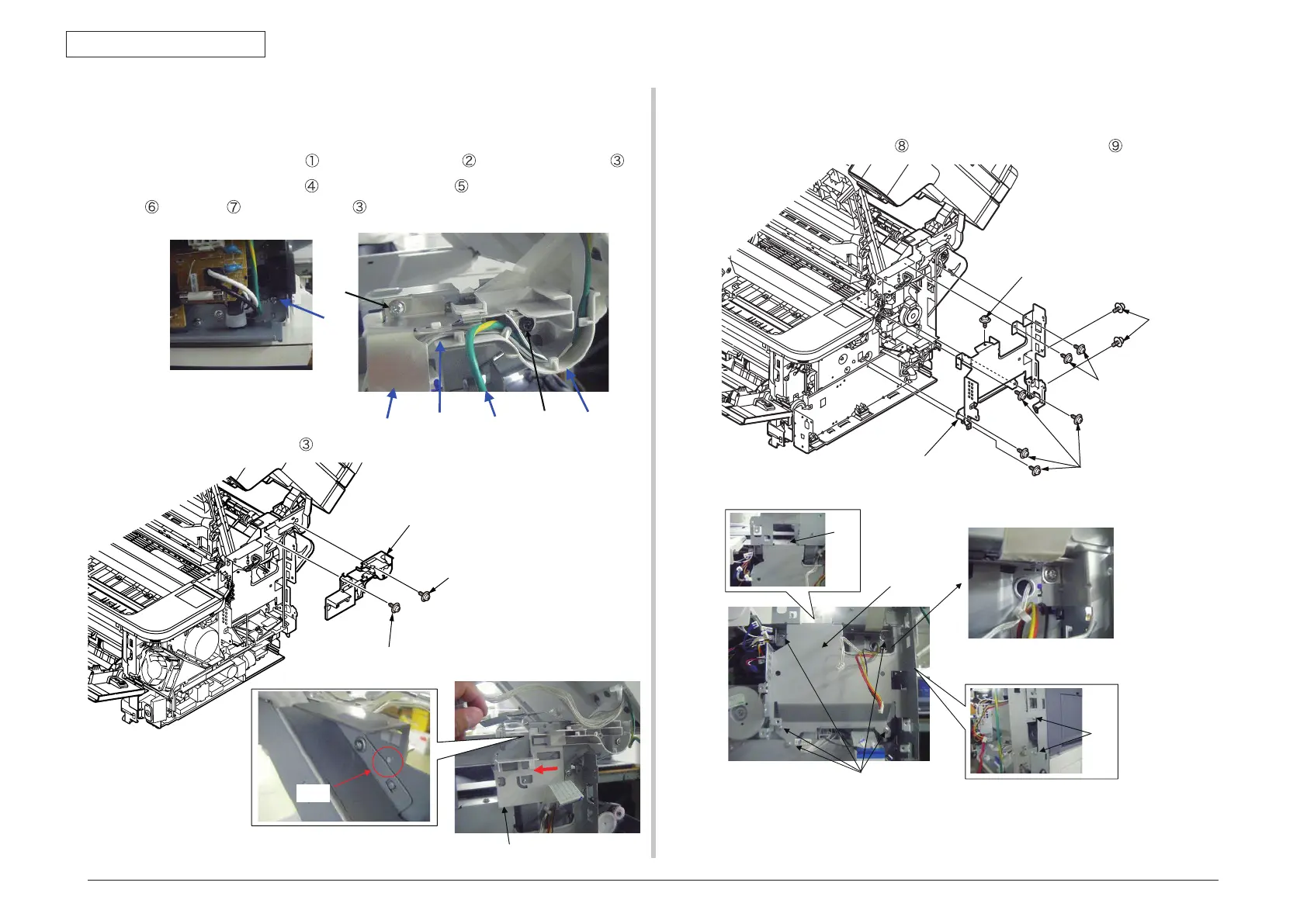

4.2.14 Hopping Clutch / MPT Clutch / Regist Clutch
(1) Remove the Board MHE. (Refer to 4.2.3).
(2) Remove the screw (Silver)
, and remove FG-Cable from the Guide Cable .
(3) Remove the screw (Black)
and the screw (Silver) , and remove FG_Film (FFC)
and Cable from Guide Cable .
(4) Remove the Guide Cable
.
③
④
⑤
Push
③
(5) Remove the PWR unit-ACDC Switch. (Refer to 4.2.4)
(6) Remove the DC Motor . (Rever to Refer to 4.2.13)
(7) Remove nine screws (silver)
to detach the Plate Bracket (CU)
.
⑧
⑧
⑧
⑨
Clamp together the screw and the FG-Film.
Note to assemble
⑨
⑧
⑧
⑧
⑧
