Oki MB461 - Cover Assy Rear

44871001TH Rev.6
4-45
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS

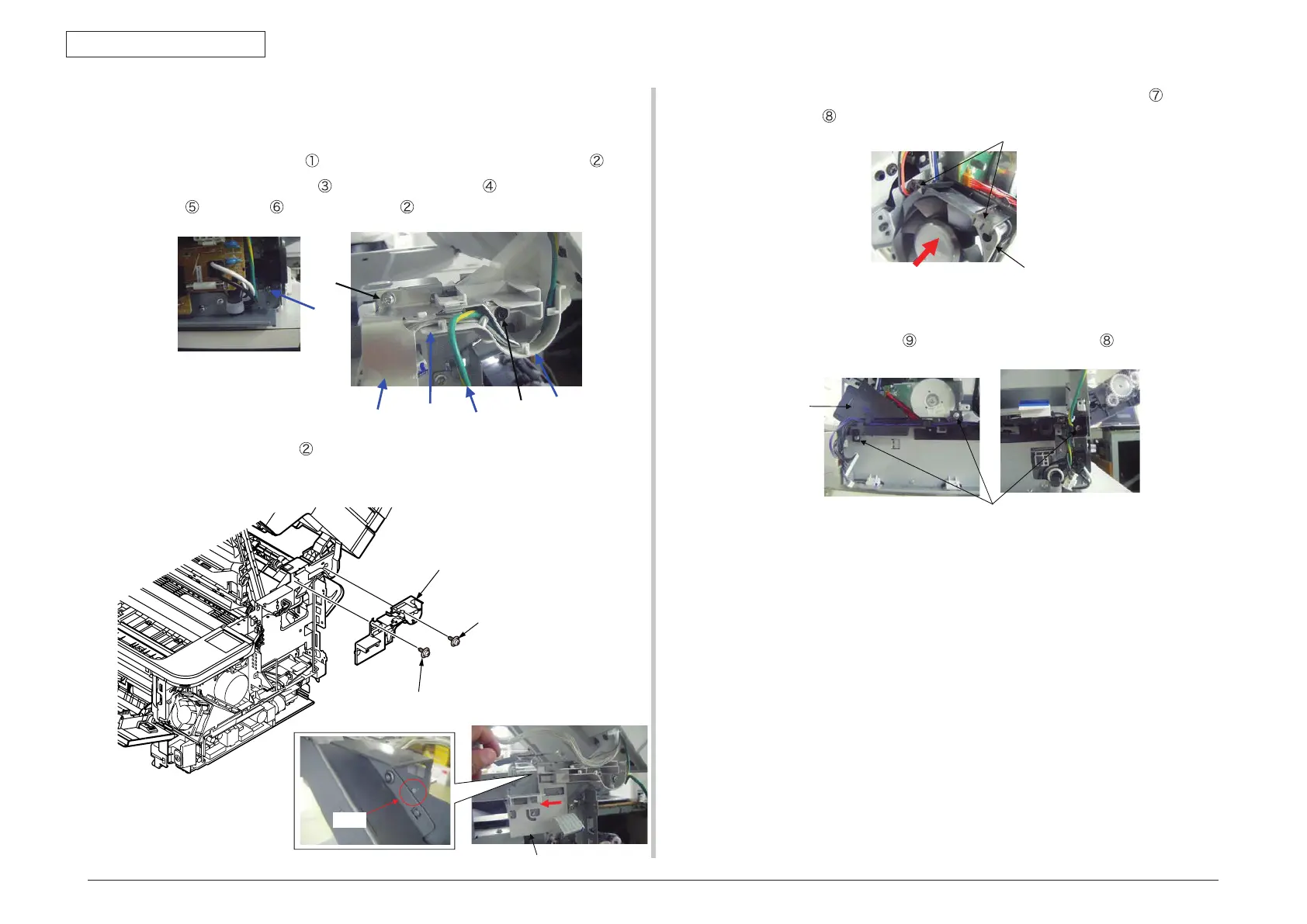

4.2.20 Cover Assy Rear
(1) Remove the CU/PU Board. (Refer to 4.2.3)
(2) Remove the screw (Silver)
and remove the FG-Cable from Guide Cable .
(3) Remove the screw (Black)
and the screw (Silver) , and remove FG_Film
(FFC) and Cable from Guide Cable .
(4) Remove the Guide Cable
.
(5) Remove the PWR unit-ACDC Switch. (Refer to 4.2.4)
(6) Unlatch the claws (2 portions), and remove the Motor-FAN (60 x 25)
from the
Duct Fan Power .
(7) Remove three screws (Silver)
to detach the Duct Fan Power .
①
③
⑥
⑤
④
FG-cable
②
Air
⑦
Craw
⑧
⑨
②
③
④
Push
②
