Oki MB461 - Plate Stay L; Plate Assy Stay R

44871001TH Rev.6
4-30
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS
4.2.9 Plate Stay L / Plate Assy Stay R

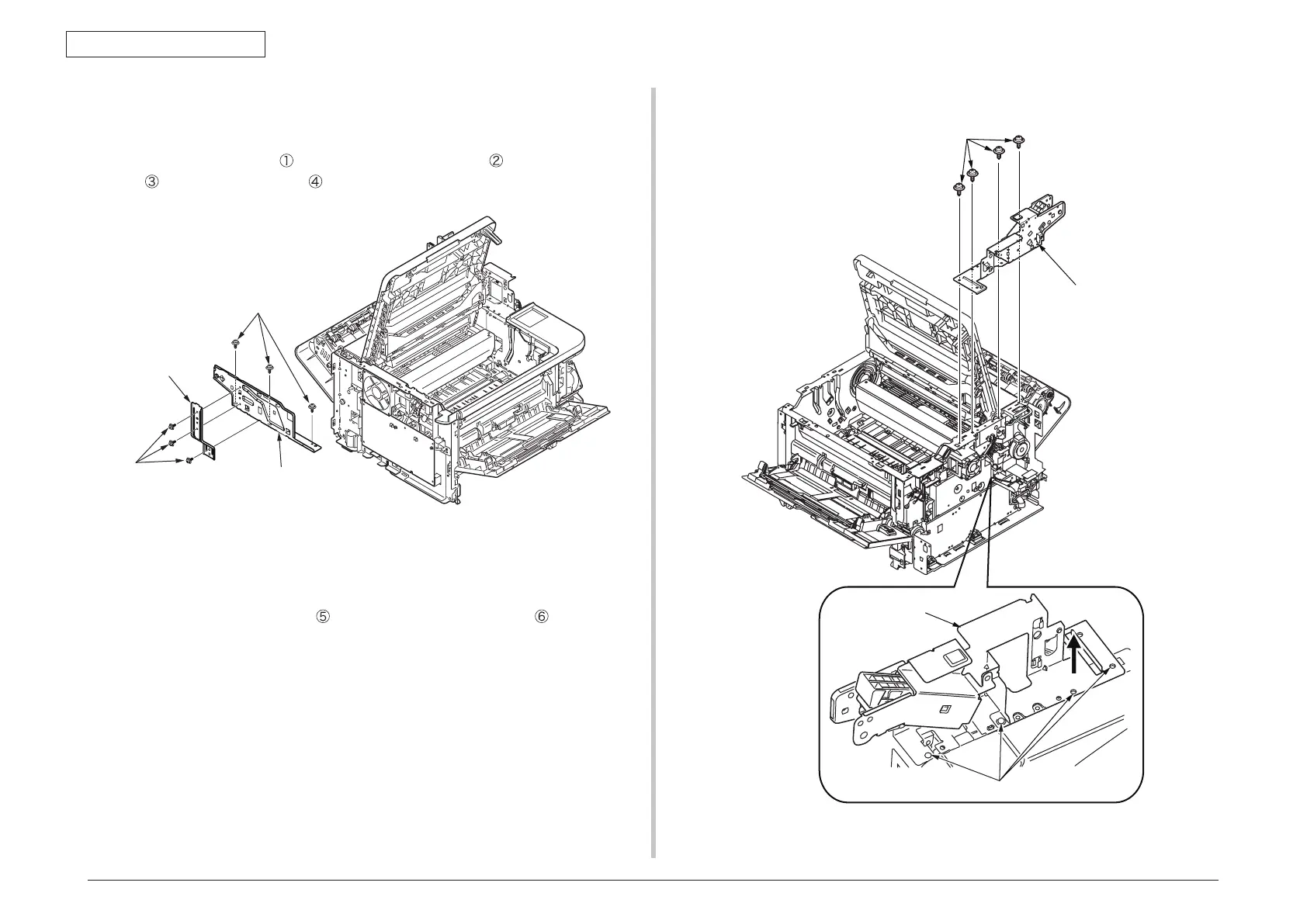

(1) Remove the Scanner unit. (Refer to 4.2.8)
(2) Remove three screws
and remove the plate support L . Remove three screws
and remove plate stay L .
(3) Remove the Cover Front (TOP). (Refer to 4.2.6)
(4) Remove the Plate Bracket (CU). (Refer to 4.2.14)
(5) Remove four screws (Silver)
to detach the Plate Assy Stay (R) .
②
③
④
①
⑤
⑥
⑤
⑥
