Oki MB461 - Checking and Indication of the Revision Number; Stamp of Maintenance Board Indication

Oki Data CONFIDENTIAL
44871001TH Rev.6
9-14
9. CONNECTION DIAGRAMS
9.3.3 Checking and indication of the revision number

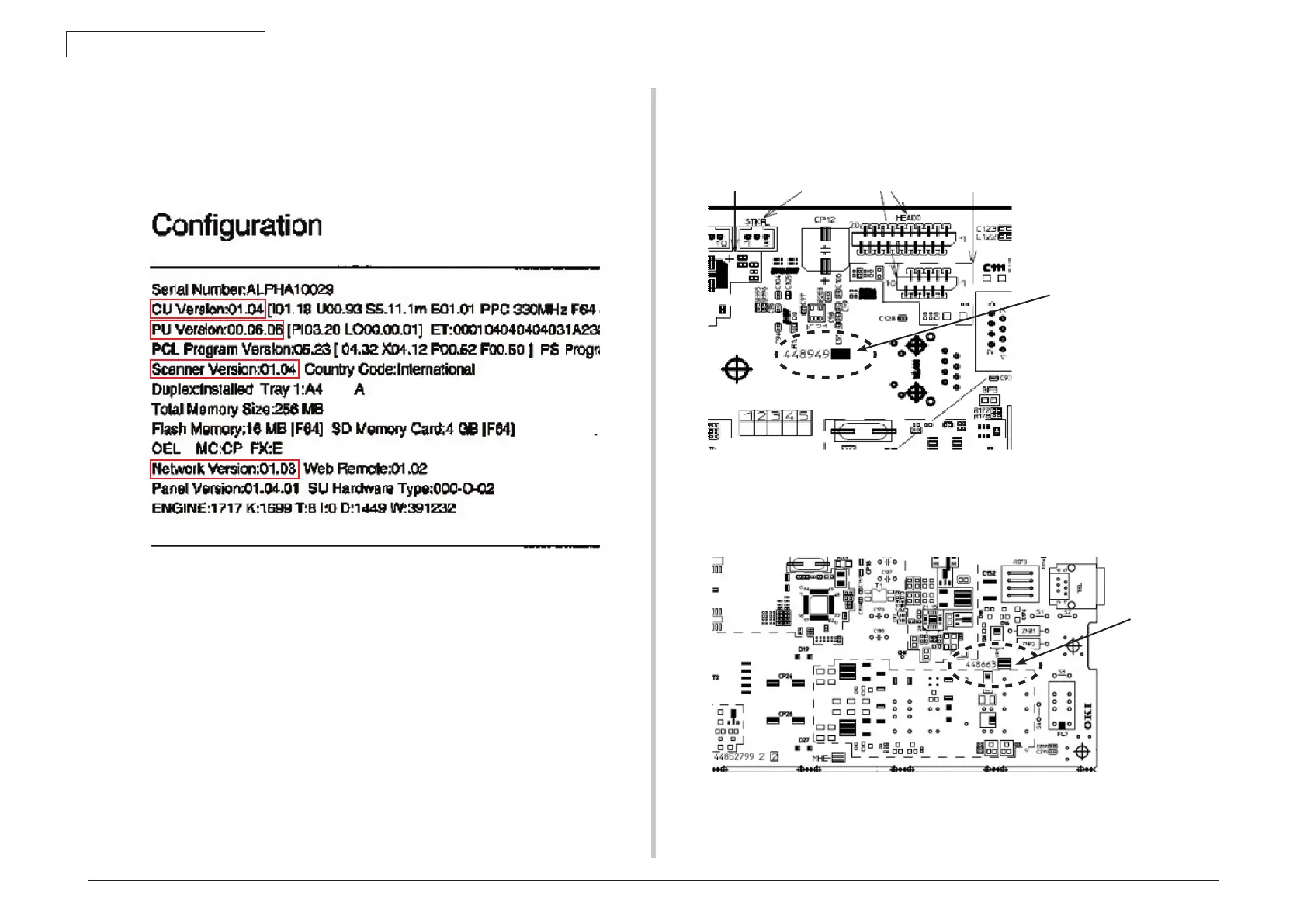

(1) Print out MenuMap and check to make sure that the firmware revision number has
been updated.
9.3.4 Stamp of maintenance board indication
A designated article number is stamped in the area for maintenance board indication on the
CU/PU board (98M) in accordance with the 44894901YA.
Designated stamping
location
A designated article number is stamped in the area for maintenance board indication on the
SU board (MHE) in accordance with the 44866301YA.
Designated
stamping
location
