10.2 Maintenance Manual for Second Tray unit
10.2.1 Overview
10.2.1.1 Function
The extended paper feed unit is installed under the printer. the device performs the auto
paper feed by the operation of the pulse motor (hopping) to control a signal from the printer.
The main function is as follows:
• Availablepaper:
[Paper Type]
• Standardpaper : (Reamweight55to105kg)A4,A5,B5,Custom,LETTER,
Executive, LEGAL 13, LEGAL 13.5, LEGAL14, 16K
*The custom is 148 to 215.9mm for width and 210 to 355.6 mm
for length.
[Weight/ Thickness]
• Standardpaper(Reamweight55to105kg)

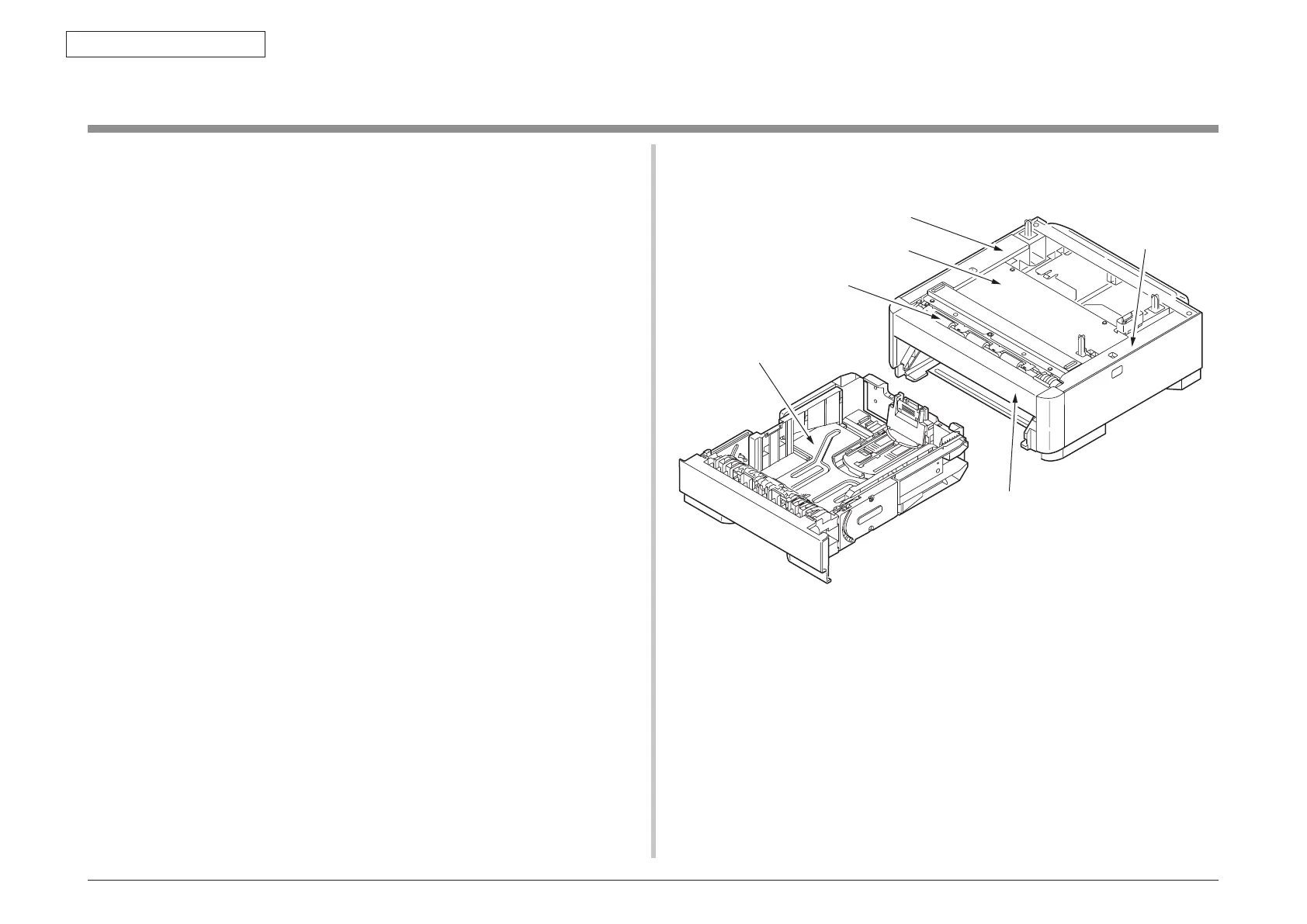

10.2.1.2 Exterior and Parts Name
Plate-Recieve
Roller-Feed
Plate-Top
Cover-Blind-L
Cover-Blind-R
Cover-Front
