Oki MB461 - Plate Side R Assy

44871001TH Rev.6
4-52
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS
4.2.25 Plate Side R Assy

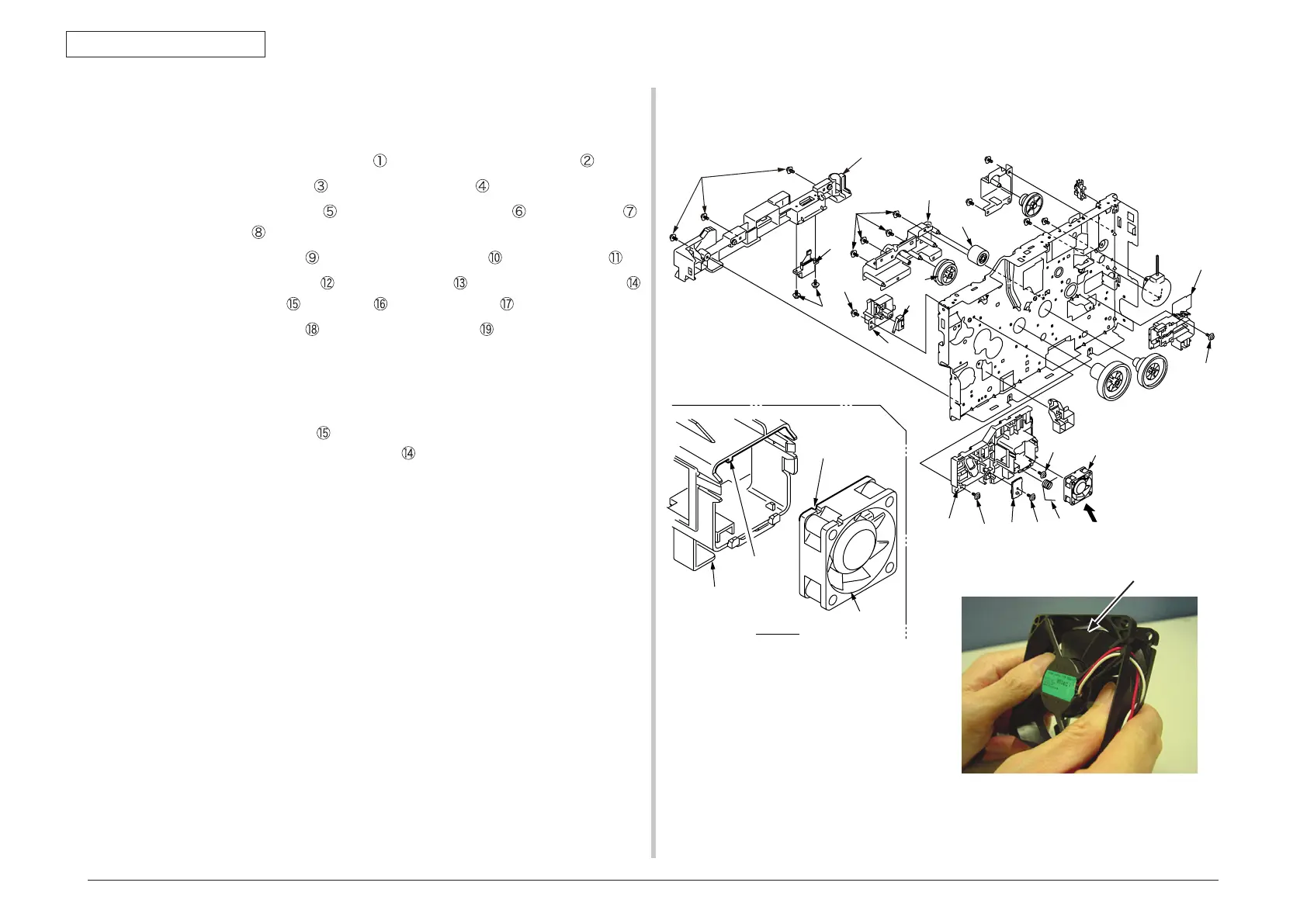

(1) Separate the Plate Side R Assy. (Refer to 4.2.23)
(2) Remove two (or three) screws (Silver)
. Remove the Guide-Cassette-R .
(3) Remove two screws (Black)
. Remove the Connector .
(4)
Remove four screws (Silver) . Remove the Plate-ID-Gear , Gear-Idle-Z21 ,
Gear-Idle-Z30-33 .
(5) Remove the screw (Silver)
. Remove the Holder-Switch and Micro switch .
(6) Remove two screws (Silver)
, the screw (Black) . Remove the Guide-ID-R
and Motor-Fan (40×15) , Board-974 , Spring-ID Lock R .
(7) Remove the screw (Silver)
. Remove the Guide-Cable .
(8) Installing is performed by the inverse procedure with removing.
Note!
1. Beware of not to touch the DC motor inattentively (Do not rotate motor).
2. Install Motor-FAN (40×15)
with the label side inward and with its notch fitted to
the appropriate projection of Guide-ID-R
.
3. While removing or installing FAN, do not press impeller of the FAN as shown by
the following photo. In case of the impeller unfastened by mistake, do not reuse it
and install a new FAN.
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑲
⑪
⑫
⑫
⑭
⑯
⑰
⑮
⑬
⑭
⑮
View A
View A
Projection
Notch
()
(

)
(⑱)
Impeller
