4.REPLACEMENT OF PARTS
4.2.8.5 Cover-ADF-F / Guide-assy-exit-sub / ADF-assy / ADF
board (MHD)

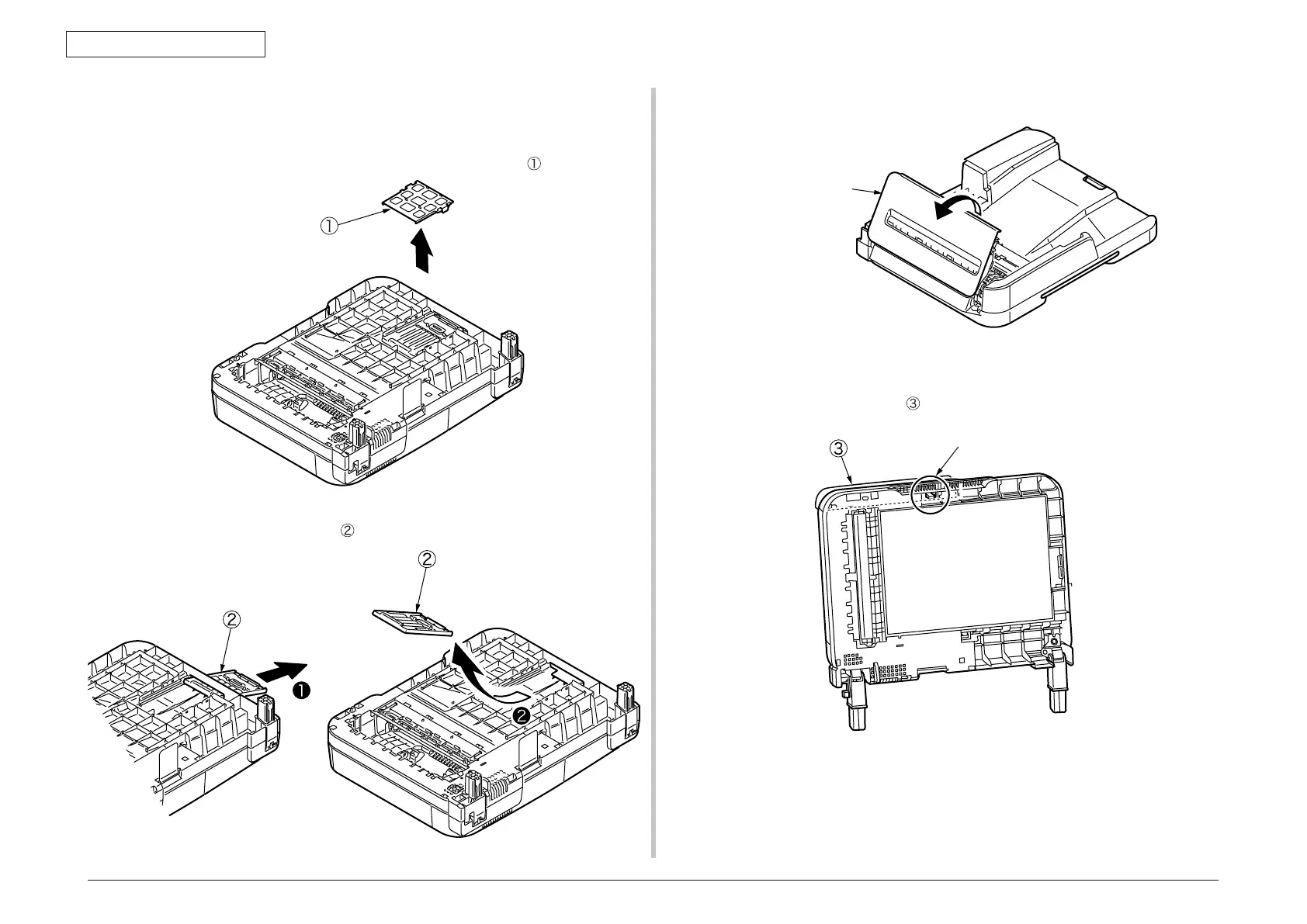

(1) Turn the ADF unit upside down and remove the support-sponge .
(2) Remove the guide-assy-exit-sub by pull it in the direction of the arrow.
(3) Open the cover-top-ADF .
(4) Push the claw of cover-ADF-F .
Cover-top-ADF
Claw
