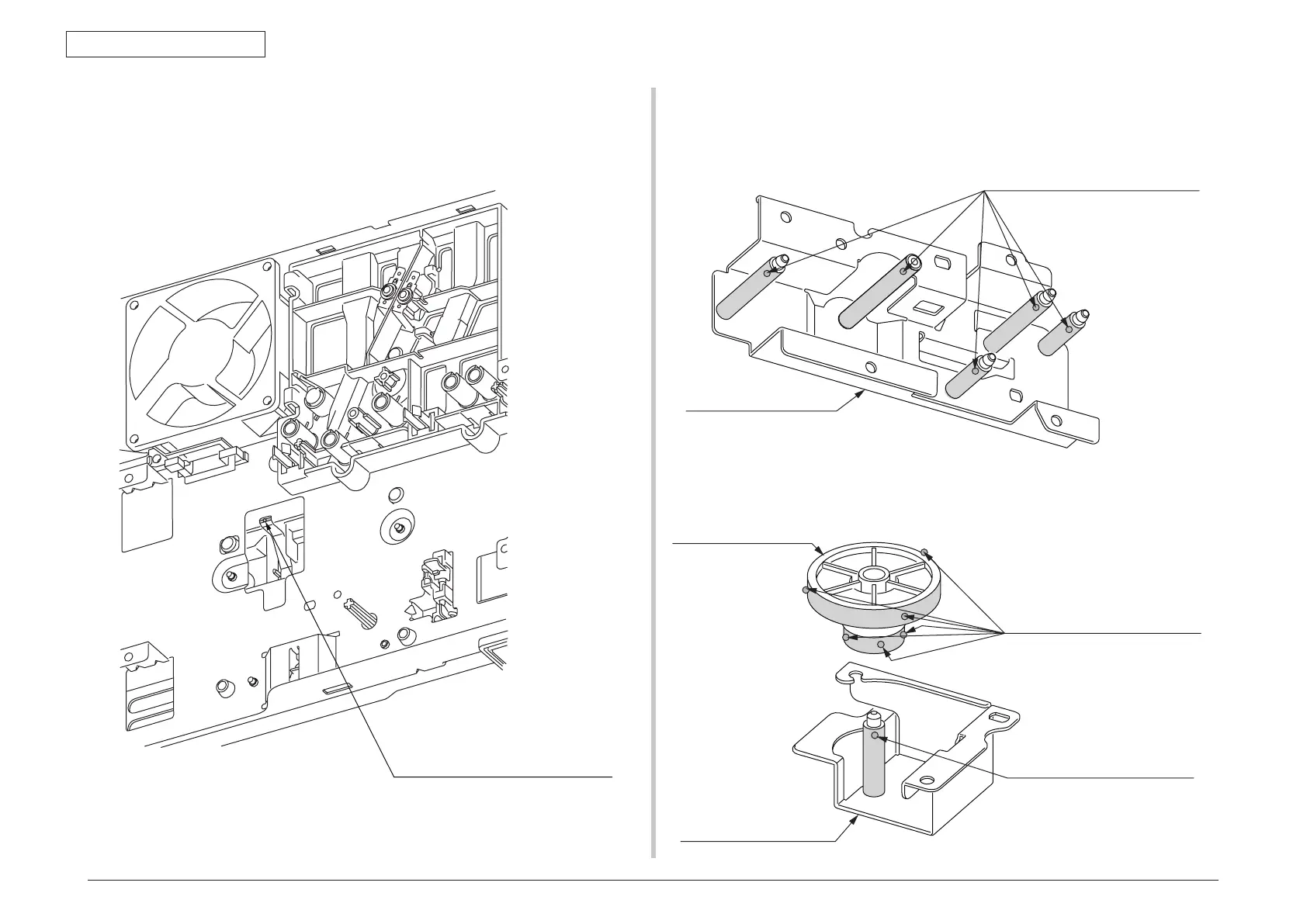

5. Lubricating point
②
-1 44563501PA Plate-Assy-Side-R
C-9300 or C-5005 Class A
Apply a normal amount of Tetra (C-9310
or C-5005) to the hatched areas.
(Contact surface)
EM-30LP Class C
Apply a normal amount of MOLY KOTE
(EM-30LP) to the hatched areas.
(Shaft end surface side)
Plate-ID-Gear (Caulking)
②
-2 44563501PA Plate-Assy-Side-R
EM-30LP Class C
Apply a normal amount of
MOLYKOTE (EM-30LP) to the
hatched areas.
(Shaft end surface side)
EM-30LP Class C
Apply a normal amount of
MOLYKOTE (EM-30LP) at the 3
places (120˚ divide) on the hatched
areas. (Gear tooth surface)
Gear-Reduction-Z14-Z70
Plate-Gear-Eject_Caulking
5.1.1 Printer
①
44563401PA Plate-Assy-Side-L
