44871001TH Rev.6
4-40
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS
②
⑥
⑤
①
②
③
④

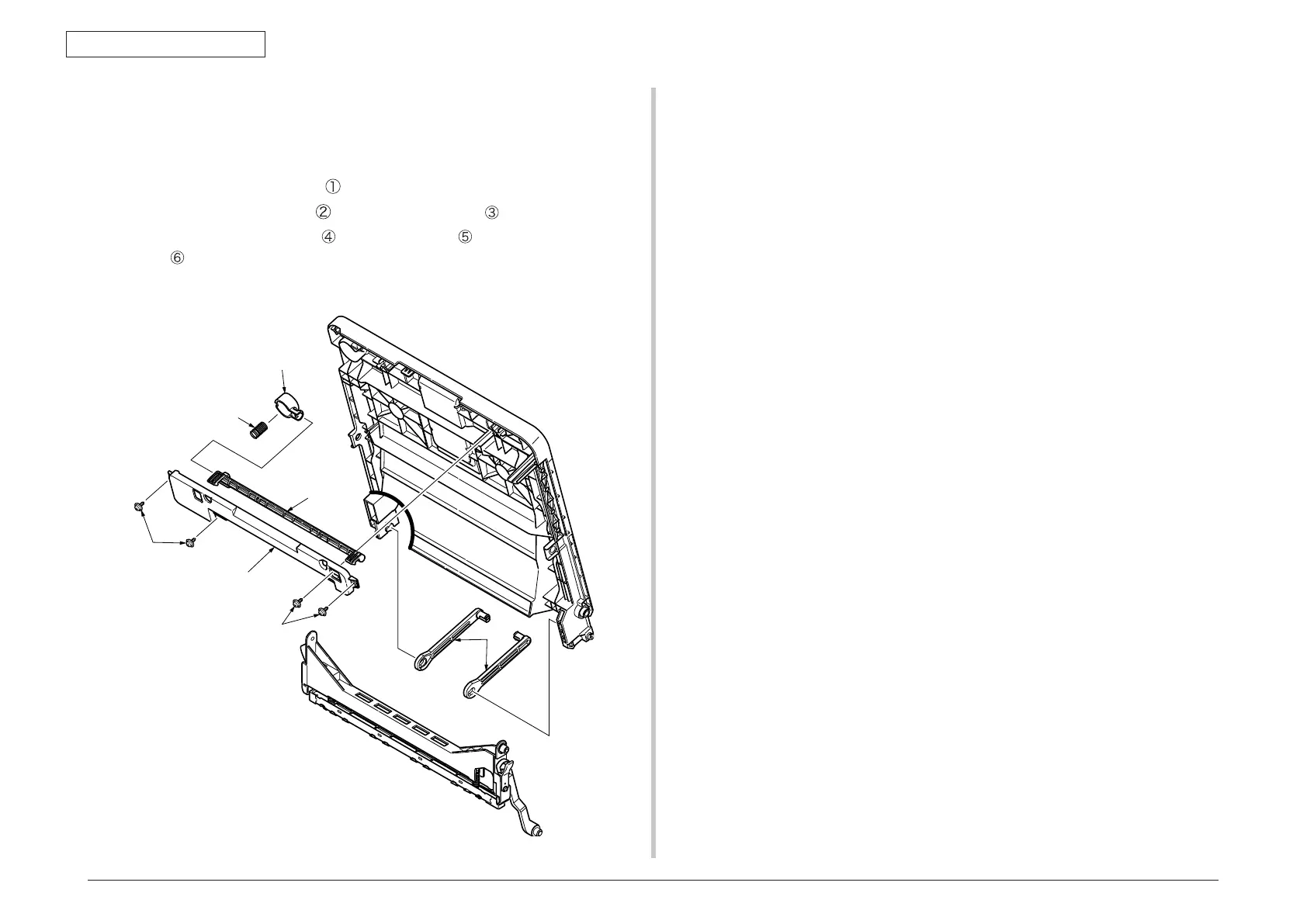

4.2.17 Stacker Cover
(1) Remove the Cover Assy Stacker. (Refer to 4.2.16)
(2) Remove the LED Head. (Refer to 4.2.10)
(3) Remove the Lever-Link-Fuser
(on both sides).
(4) Remove four screws (Black)
, remove the Cover-Lever .
(5) Remove the Lever-Lock-Top
, Lever-Lock-Button . Remove the Spring-Lever-
Top .
(6) Installing is performed by the reverse procedure with removing.
To Next Page
