4.REPLACEMENT OF PARTS

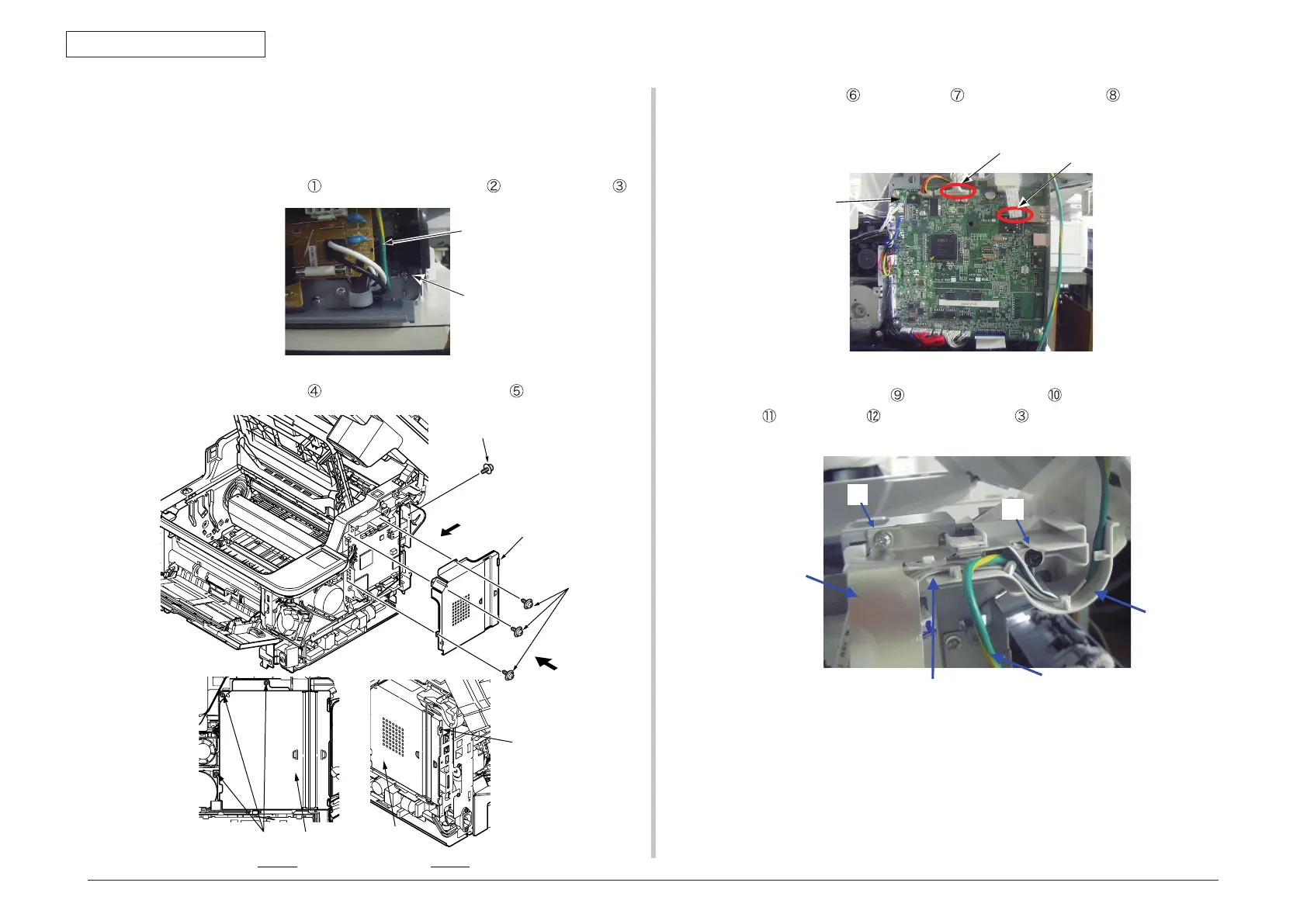

4.2.8 Scanner unit
(1) Remove the Cover Side (L) and the Cover Side (R). (Refer to 4.2.1 and 4.2.2)
(2) Remove the Cover Stay (R) and Cover Stay (L). (Refer to 4.2.5)
(3) Remove the Screw (Silver)
, and remove the FG-Cable from Guide Cable .
(4) Remove the Screw (Silver)
, and remove Plate Shield (CU) .
(5) Disconnect the FFC
and the Cable from the CU/PU Board .
(6) Remove the Screw (Silver)
and the Screw (Black) , and remove the FG Film
(FFC) and the Cable from the Guide Cable .
①
②
⑥
⑧
⑩
⑨
②
⑫
③
⑪
L
AN
ACC
④
⑤
④
④
⑤
⑤
View A
View A View B
View B
To Next Page
