4.REPLACEMENT OF PARTS

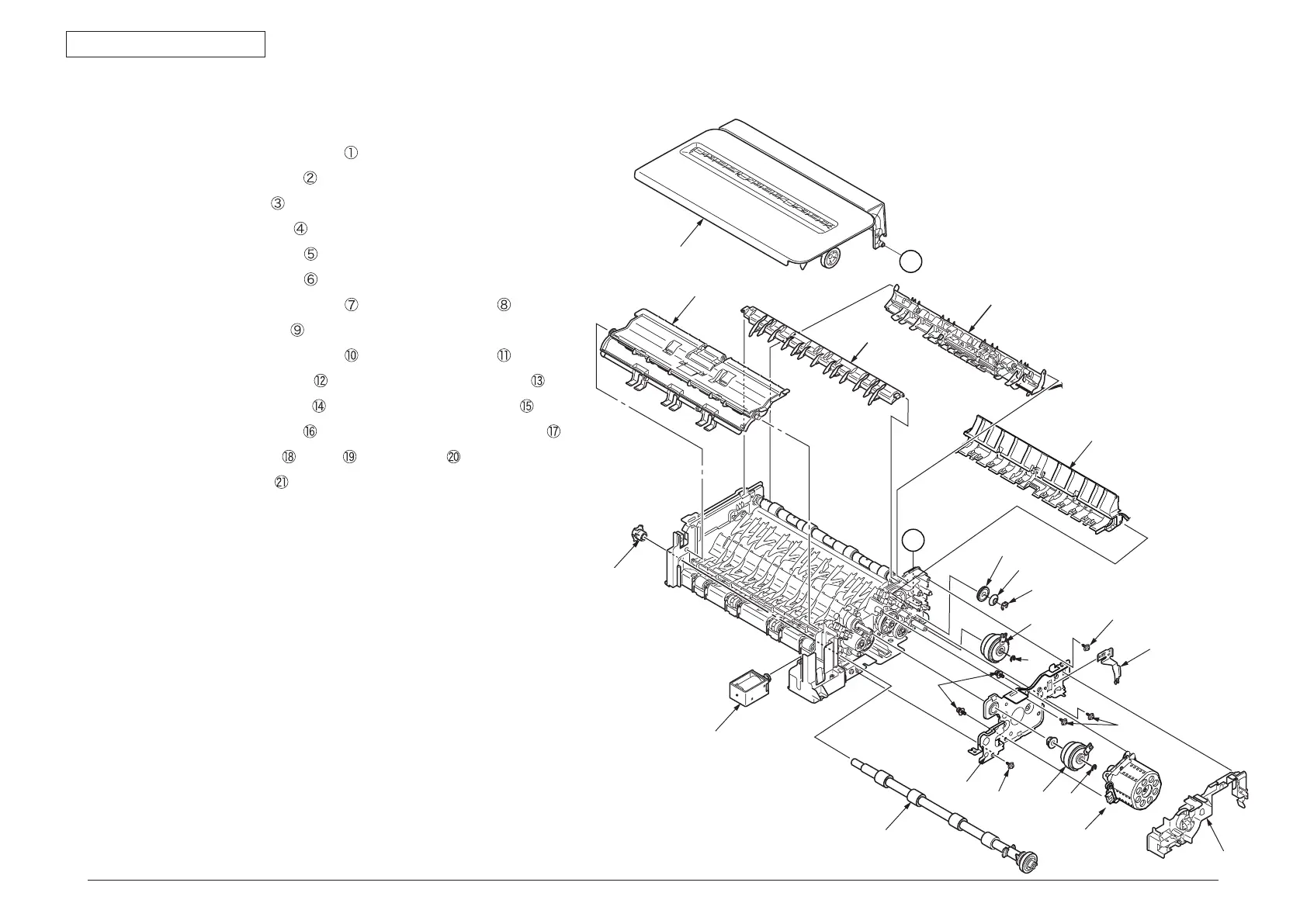

4.2.8.6 Cover-assy-top-ADF / Guide-assy / Roller / Motor / Clutch /
Solenoid
(1) Remove the cover-assy-top-ADF .
(2) Remove the guide-assy-A
.
(3) Remove the guide-B
.
(4) Remove the guide-cable
.
(5) Remove the guide-assy-C
.
(6) Remove the guide-assy-D
.
(7) Remove the E-type retaining ring
and remove the clutch .
(8) Remove the plate-FG-S
.
(9) Remove the E-type retaining ring
and remove the clutch .
(10) Remove four screws (black)
and remove the plate-motor-ADF .
(11) Remove two screws (silver)
and remove the Motor-KTL40M .
(12) Remove the bearing-shaft
and remove the roller-assy-eject-ADF .
(13) Remove the retainer-4
, spring and washer-A .
(14) Remove the solenoid
.
