44871001TH Rev.6

4-21

Oki Data CONFIDENTIAL

4.REPLACEMENT OF PARTS

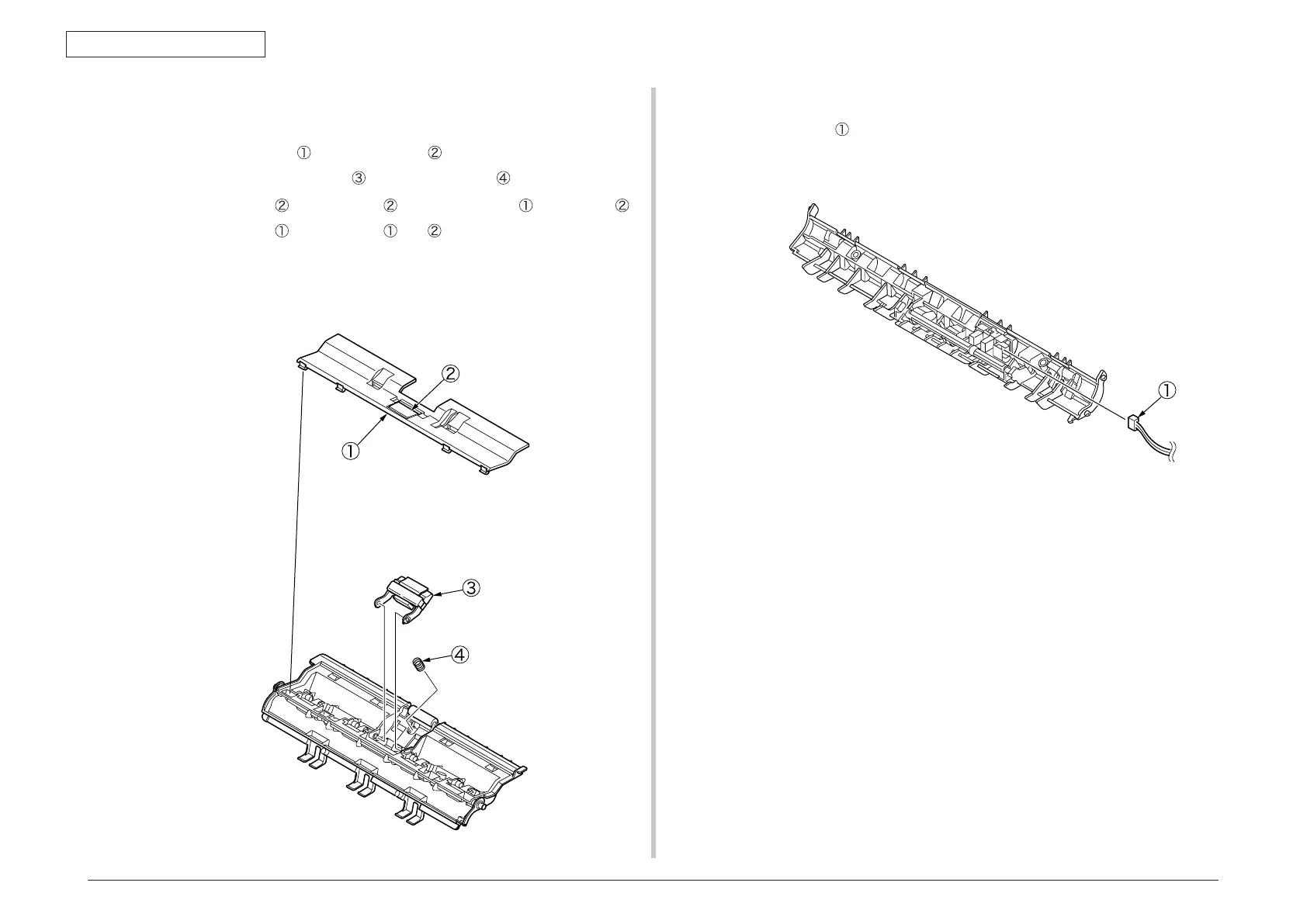

4.2.8.7 Guide-A-sub / Frame-assy-separator / Spring-separator /

Rubber-friction

(1) Remove the guide-A-sub with rubber-friction .

(2) Remove the frame-assy separator

and spring-separator .

Note! • Ifchangethe

… Remove the , then degrease the and afﬁx the .

 • Ifchangethe

… Remove the and together.

4.2.8.8 Cable (ADF-Rev SNS)

(1) Remove the cable .
