Chapter 4 Reprocessing Operations
ENDOSCOPE REPROCESSOR OER-Pro Operation Manual
Figure 4.23
For setup of “OSF-V60”, “two channel endoscope”, and
“ultrasonic endoscope”, refer to the “OER-Pro Quick
Reference Guide”.
7. Make sure that the endoscope is located below the index bars that mark the
disinfectant liquid level (see Figure 4.24).

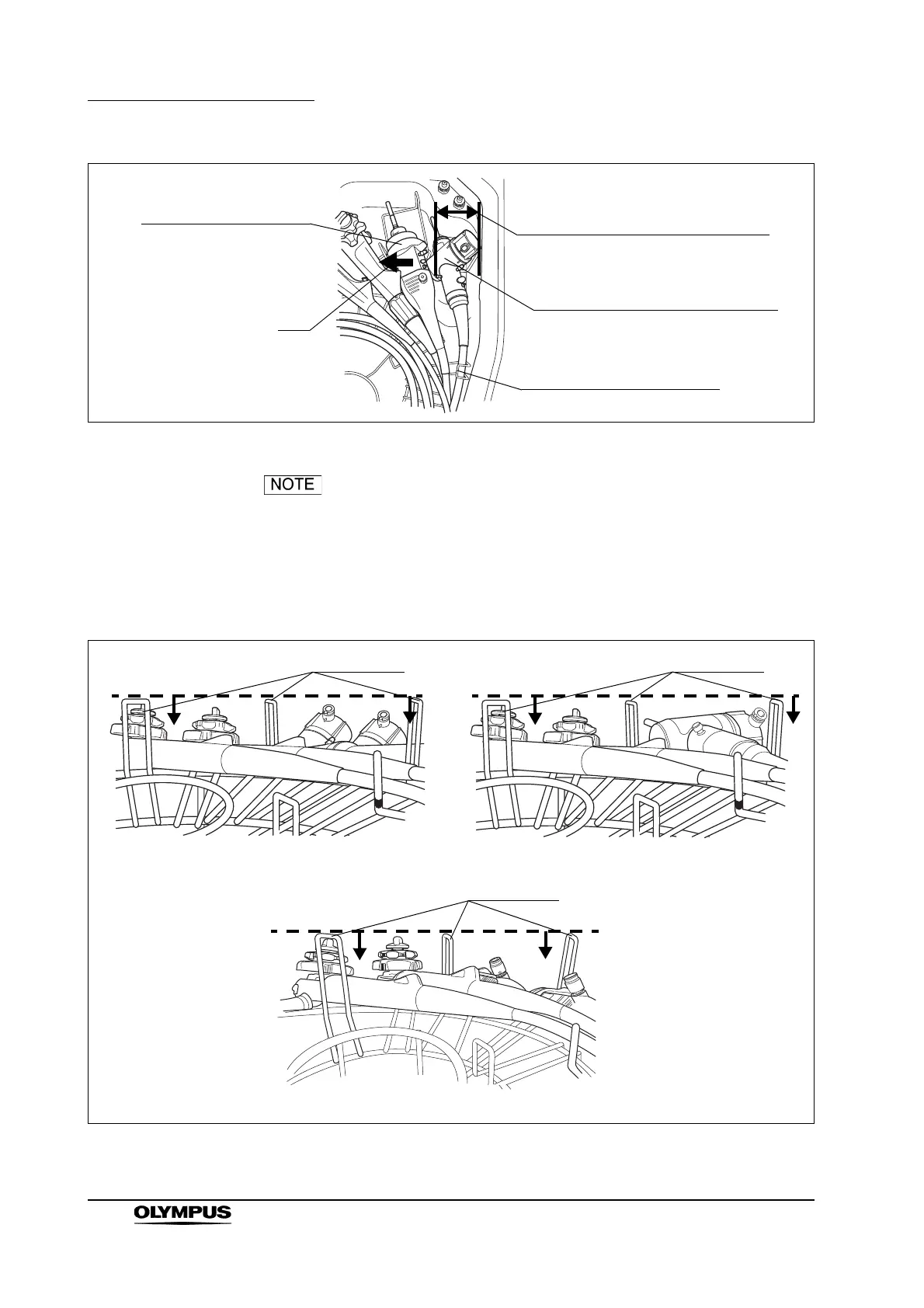

Figure 4.24
Endoscope connector of the 180 or
older series endoscope (second
endoscope)
Place the universal cord on
the inside of the hook
1
Put the endoscope connector of the
second endoscope in this area
Endoscope connector
of the 190 series
1
(first endoscope)
Index bars
Index bars
180 or older series endoscopes
190 series endoscopes
1
Index bars
1 190 series endoscopes may not be available in some areas.
