Endoscope setup sequence and positions

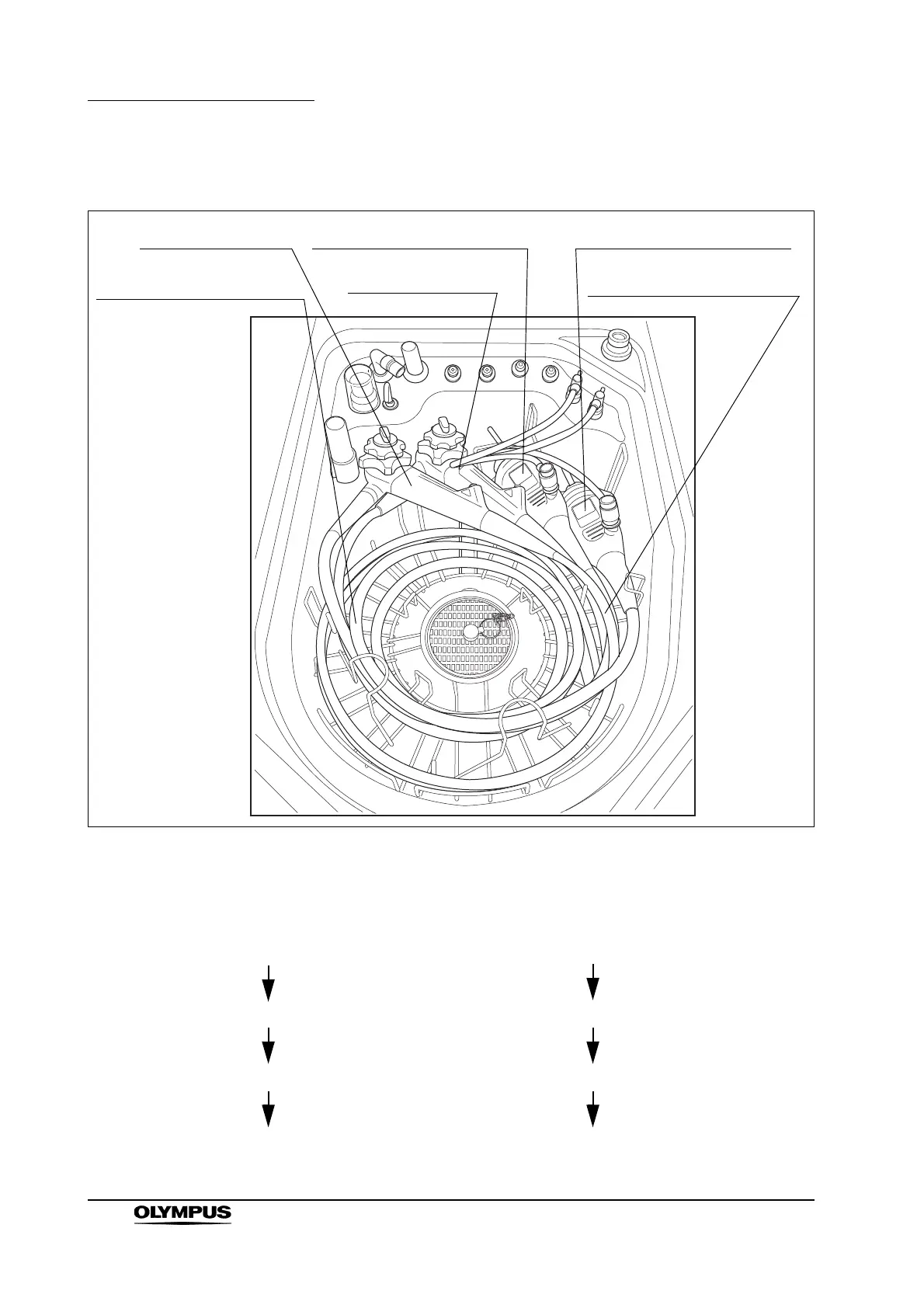

Figure 4.11
(2) Insertion tubes
(1st and 2nd endoscopes)
(6) Endoscope connector
(2nd endoscope)
(3) Universal cords
(1st and 2nd endoscopes)
(1) Control section
(1st endoscope)
(5) Control section
(2nd endoscope)
(4) Endoscope connector
(1st endoscope)
When placing one endoscope, place the
components in the reprocessing basin in the
following order:
When placing the second endoscope, place
the components in the reprocessing basin in
the following order:
(5) Control section (2nd endoscope)
(2) Insertion tube
(3) Universal cord
(6) Endoscope connector
(2nd endoscope)
(1) Control section (1st endoscope)
(3) Universal cord
(4) Endoscope connector
(1st endoscope)
(2) Insertion tube
