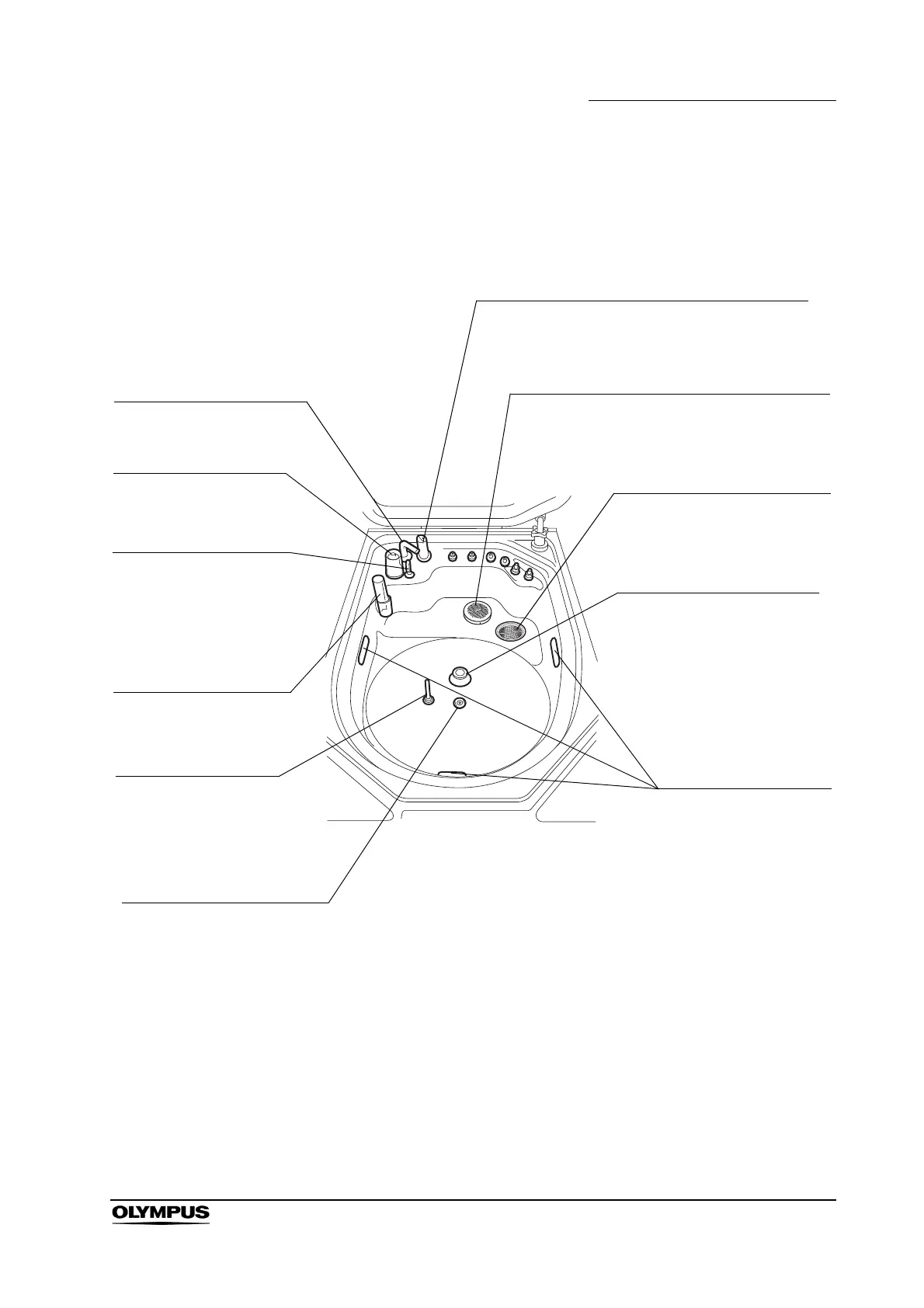

Circulation port
Aspirates the cleaning fluid or disinfectant solution
for circulation during cleaning or disinfection.
Water supply/circulation nozzle
Supplies water for cleaning and washing. Also
supplies the cleaning fluid or disinfectant solution
aspirated through the circulation port for circulation.
Disinfectant solution nozzle
Supplies disinfectant solution
to the reprocessing basin.
Float switch
Detects abnormal fluid
levels in the reprocessing
basin.
Detergent nozzle
Fluid level sensor
Temperature sensor
Detects the temperature
of disinfectant solution in
the reprocessing basin to
control it.
Washing case mount
Mount for the Washing case that
is used to hold the endoscope
accessories including valves for
reprocessing.
Water level scales ( 3)
Marks for confirming that
the equipment is level.
Drain port
Drains liquid from the reprocessing
basin. Disinfectant solution is
loaded through this port.
Water supply piping
disinfection connector
Connect the water supply
piping disinfection hose here.
Supplies detergent to the
reprocessing basin.
Detects the fluid level in the
reprocessing basin to
control it.
