Omron K3HB Applications Manual

Basic Application Methods
Basic Application Methods
3.2 Panel thickness inspection
3-5

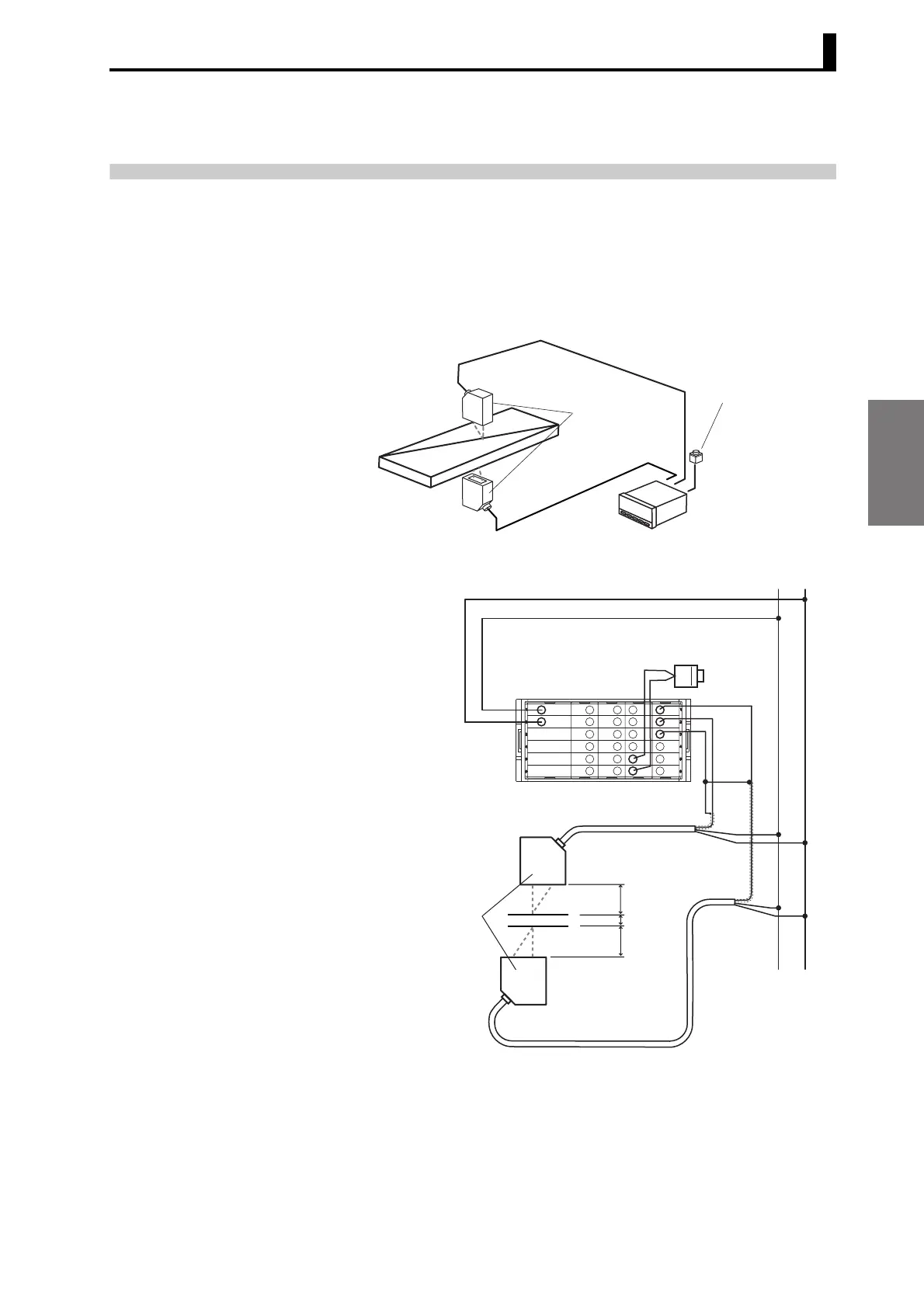

3.2 Panel thickness inspection
Advantages of Using the K3HB-S
• Calculation mode K-(A+B) can be used to convert panel thickness
to actual size and measure it from the outputs of two displacement
sensors.
• The forced-zero function can be used for one-touch deviation
measurement from a reference panel thickness.
K3HB-S
Displacement Sensor
Z4W-V25R
Forced-zero
pushbutton switch
24 VDC
Input A
Input B
Operating power
supply
Operating power
supply
COM
COM
K3HB-S
+ -
Brown
Brown
Blue
Blue
Black Black
Shield wire
Displacement Sensor
Z4W-V25R
Sensor A
Sensor B
Units (mm)
25
+
-
ZERO
Forced-zero
pushbutton switch
2025

Omron K3HB Specifications

General

Input Type	Thermocouple, RTD, Voltage, Current
Control Output	Relay, Voltage, Current
Communication	RS-485
Mounting	Panel
Humidity	25% to 85%
Supply Voltage	100-240 VAC, 24 VDC
