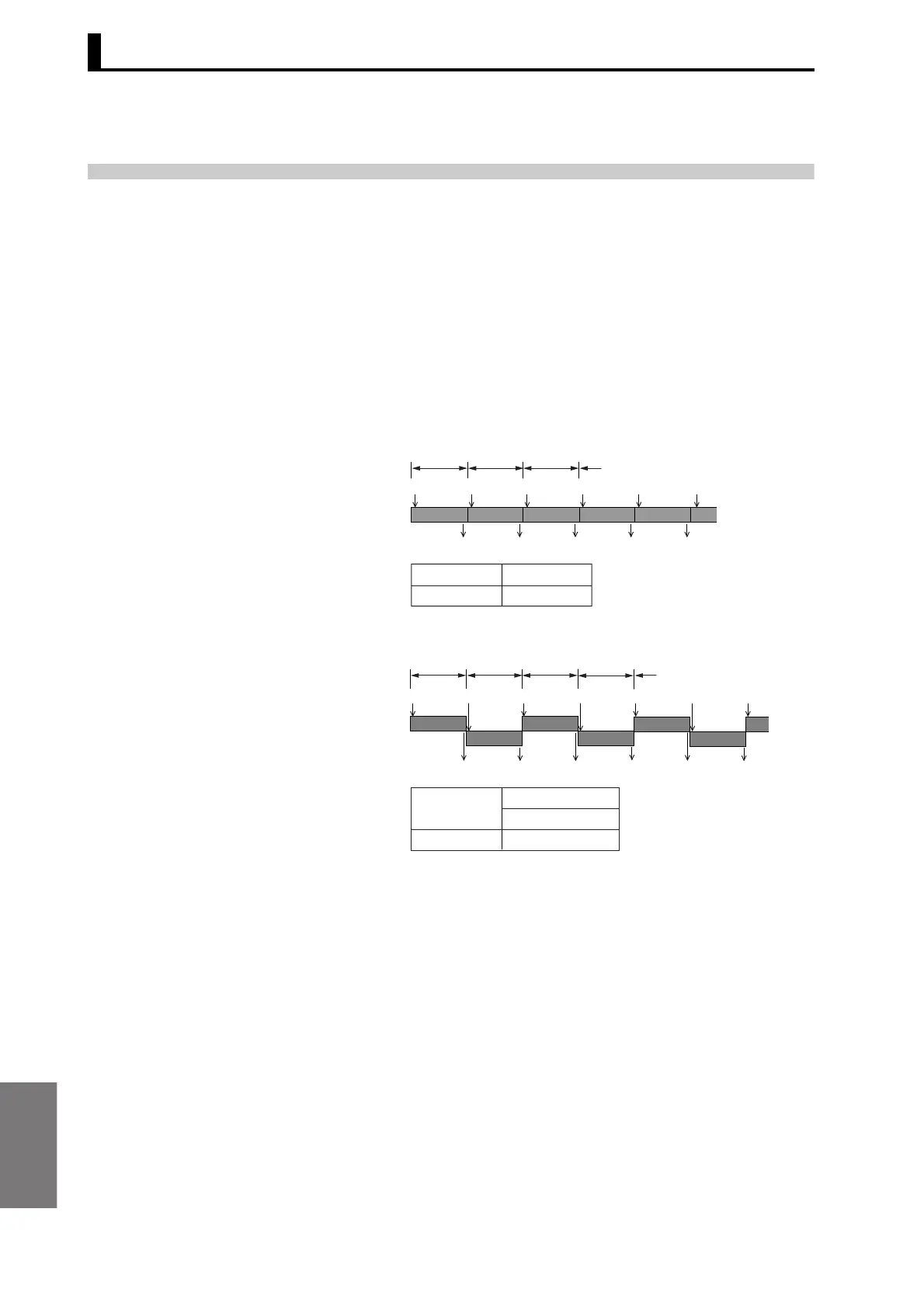

Sampling and comparative output response times
The K3HB-S sampling and comparative output response times differ
depending on the calculations, timing hold type, and, for simple
averaging, the averaging times. Refer to the following description for
details.
■
Output refresh period
The K3HB-S repeats input reads, calculation, and judgement output
processing. The output refresh period differs depending on whether
there are one or two inputs, as outlined below.
Input A
or
Input B
Input
0.5 ms 0.5 ms 0.5 ms
Input
Input
Input
Input
Input read
Every 0.5 ms
● Two inputs
Every 0.5 ms
● One input
Output refresh
Output Output
Output
Output
Output
Input
Input A
Input B
Input
0.5 ms 0.5 ms 0.5 ms
InputInput
Input
Input
Output Output Output
Output
Output
Output
Input
Input
Input read
Input B: every 1 ms
Input A: every 1 ms
Output refresh
Every 0.5 ms
