5.6 Not Performing Measurements for Set Intervals
5-21
5.6 Not Performing Measurements for Set Intervals
With this function measurement is not performed until a set time has
passed after the S-TMR input turns ON. (The function starts at the
rising edge of the S-TMR input and the PV display is "-----" while no
measurement has been performed.)
The time is set using the next parameter.
If the power is turned ON while the S-TMR input is ON, it functions as
a startup compensation timer. Measurement will not start until the time
set for s-tmr passes after the power is turned ON.
This function can be used for applications such as when the K3HB-S and
a rotating body are turned ON at the same time and the rotating body is to
be in standby mode until the correct rotation speed has been reached.

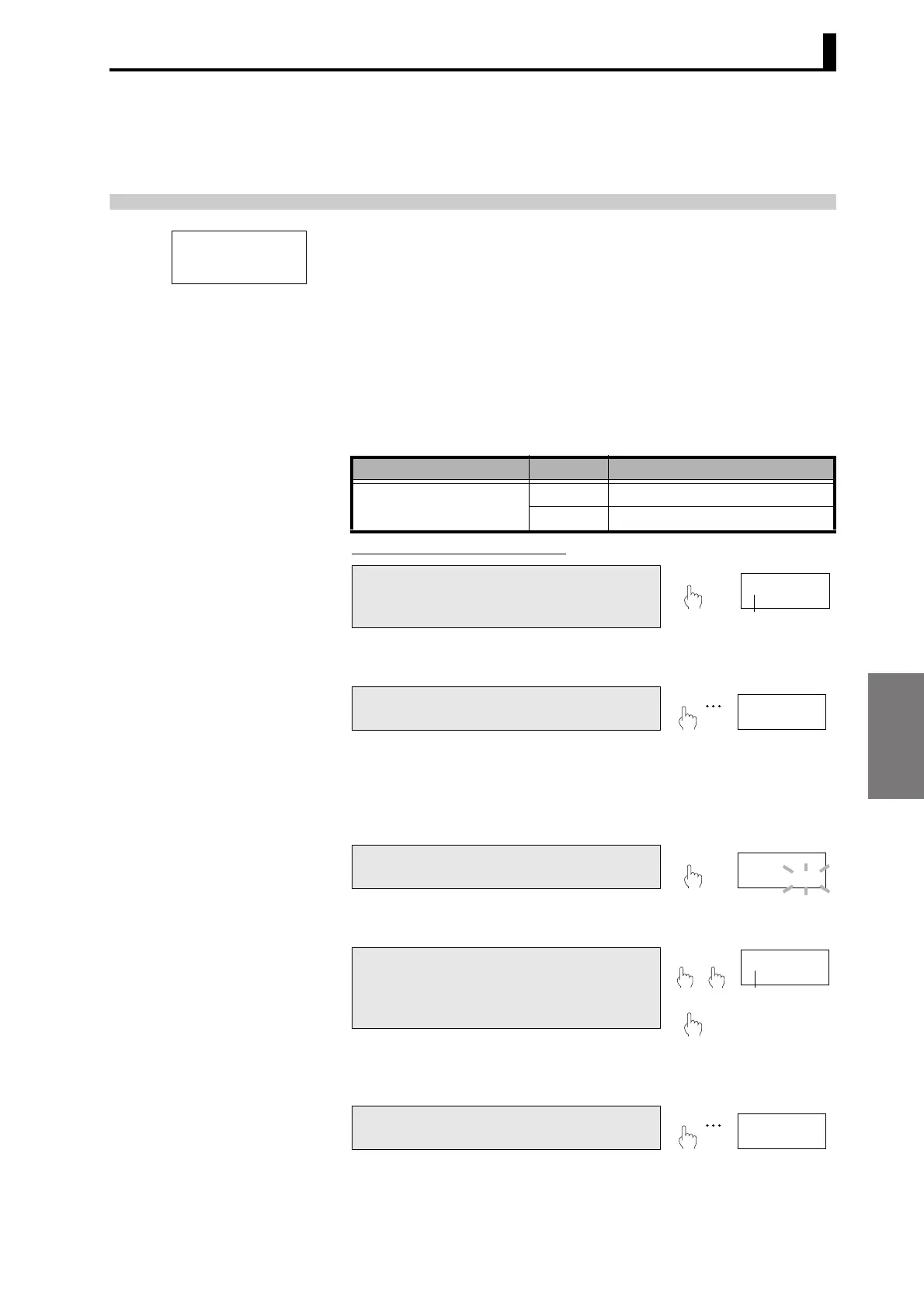

Parameter Setting Procedure
Advanced-function setting level
Parameter
Set value
Meaning of set value
Startup compensation timer
s-tmr
0.
0
Startup compensation timer disabled
0.
.1
to
99.
9
0.1 to 99.9 s
A Press the L[LEVEL] Key for at least 3
s in RUN level to move to the initial
setting level.
3 s min.
•
"
L
0" is displayed on the level/bank
display to indicate the initial setting level.
B Press the M[MODE] Key several times
to change the PV display to "amov".
•
This parameter is not displayed for the
initial status due to setting level protect.
Refer to "Limiting Key Operations" (P.5-
80) for information on removing setting
level protect.
C Press the S[SHIFT] Key to make the
SV display flash.
• The setting can be changed when the
SV display starts to flash.
D Use the U[UP] and S[SHIFT] Keys to
set the password "-0169". Press the
M[MODE] Key to move to the
advanced-function setting level.
•"
L
f" is displayed on the level/bank
display to indicate the advanced-
function setting level.
E Press the M[MODE] Key several times
to change the PV display to "s-tmr".
s-tmr
L
f
(S-TMR)
L
cal
0
Displays "
L
0".
L
0
M
amov
0
L
0
S
amov
00000
L
0
SU
M
init
Displays "
L
f".
off
L
f
M
s-tmr
0. 0
L
f
To Next Page
