Functions and Operations
5.18 Allocating Other Outputs to PASS Output
5-49

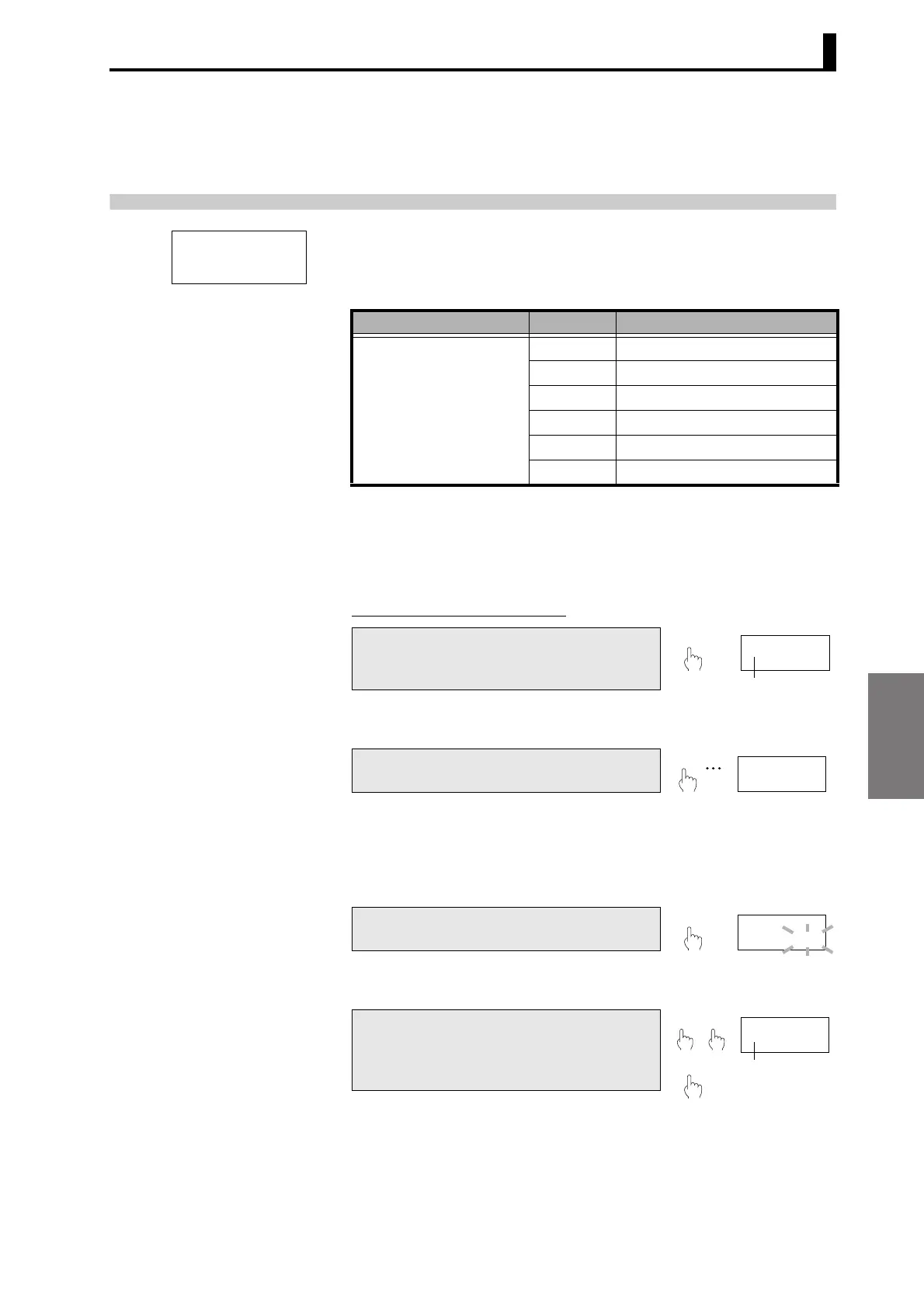

5.18 Allocating Other Outputs to PASS Output
In the default settings, PASS signals are output from the PASS output
terminal. The "PASS output change" parameter can be set to output
comparative output status details other than PASS or errors from the
PASS output terminal. (Enabled when there is a PASS output terminal.)
* To allocate input errors to the PASS output, set the "operation at
input error" parameter to s.err. If the "operation at input error"
parameter is left set to OFF or OVER, no error occurs even if there is
an input error and the allocated output is not output.
• Turning s.err the "operation at input error" parameter → P.5-23
Parameter Setting Procedure
Advanced-function setting level
Parameter Set value Meaning of set value
PASS output change
pass
ll LL
l L
pass PASS
h H
hh HH
err Input error *
A Press the L[LEVEL] Key for at least 3
s in RUN level to move to the initial
setting level.
3 s min.
•
"
L
0" is displayed on the level/bank
display to indicate the initial setting level.
B Press the M[MODE] Key several times
to change the PV display to "amov".
•
This parameter is not displayed for the
initial status due to setting level protect.
Refer to "Limiting Key Operations" (P.5-
80) for information on removing setting
level protect.
C Press the S[SHIFT] Key to make the
SV display flash.
• The setting can be changed when the
SV display starts to flash.
D Use the U[UP] and S[SHIFT] Keys to
set the password "-0169". Press the
M[MODE] Key to move to the
advanced-function setting level.
•"
L
f" is displayed on the level/bank
display to indicate the advanced-
function setting level.
pass
L
f
(PASS)
L
cal
0
Displays "
L
0".
L
0
M
amov
0
L
0
S
amov
00000
L
0
SU
M
init
Displays "
L
f".
off
L
f
To Next Page
