Functions and Operations
5.22 Compensating Forced-zero References
5-57
5.22 Compensating Forced-zero References
Zero-trimming is the function that compensates the forced-zero shift value based on the measurement
value for an OK object (PASS data) while forced-zero is being executed.
This function can be used if the timing hold setting is sampling hold, peak hold, or bottom hold.
Zero-trimming can be used if the timing hold parameter is set to sampling hold, peak hold, or bottom hold.

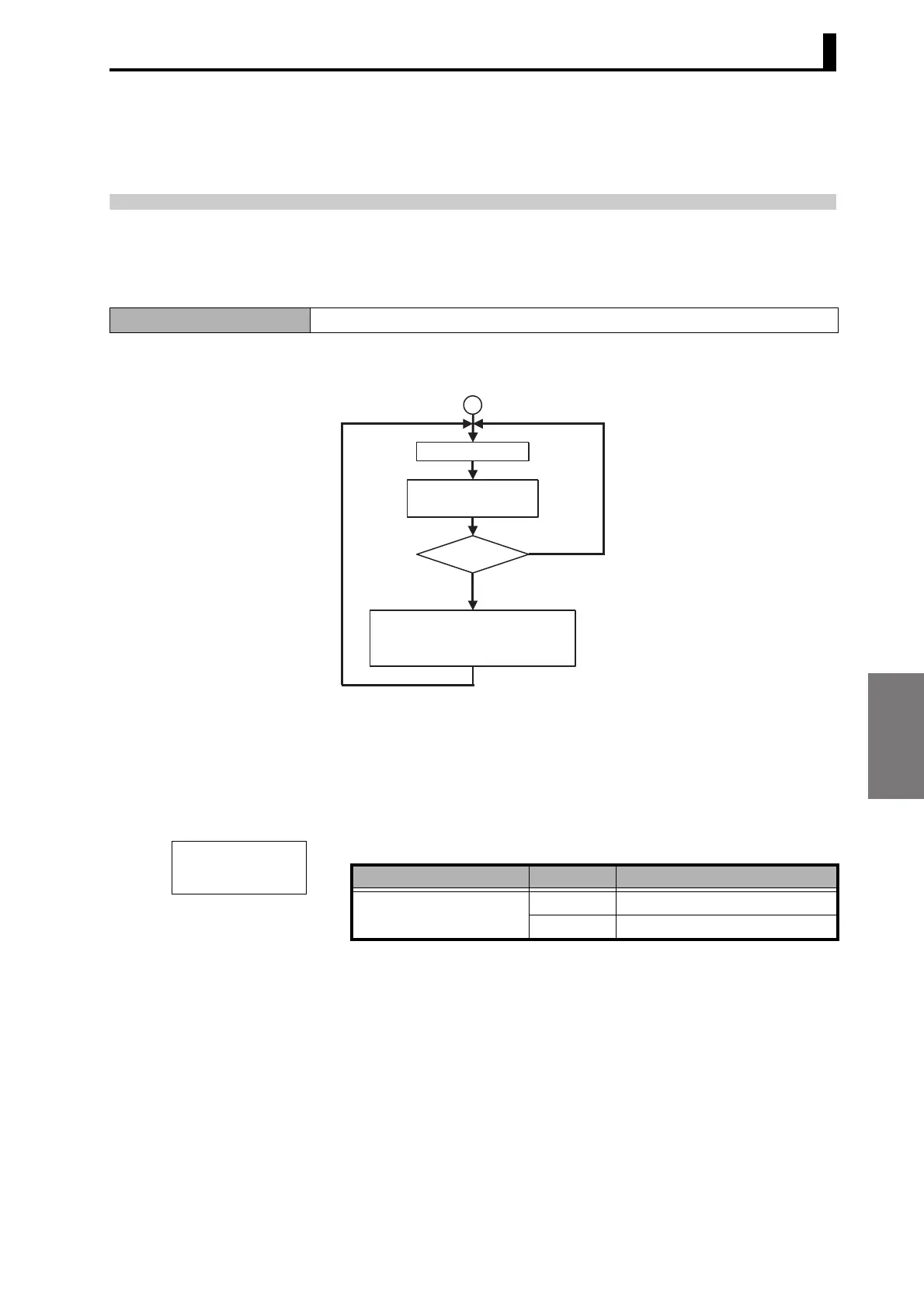

The zero-trimming algorithm is shown below.
[Application example] Absorbing temperature drift for linear sensors
The reference device is measured using the linear sensor and forced-zero is executed first thing in the
morning, when the room temperature is low. While workpieces are subsequently being measured, the
room temperature gradually increases and the measurement values gradually change due to the
temperature characteristics of the linear sensor.
These kinds of gradual changes can be compensated for by using the zero-trimming function.
Zero-trimming is set using the following parameter.
Explanation of Functions Zero-trimming
Advanced-function setting level
PASS=OFF
PASS=ON
Calculates measurement value A.
Comparative
judgement
Forced zero value: ZRn
DispLay value: D = A-ZRn
Forced zero value correction
ZRn+1 = α × ZRn + (1-α) × A
α: Previous zeroed weight (= 0.9)
Parameter Set value Meaning of set value
Zero-trimming
z-trm
on Zero-trimming ON
off Zero-trimming OFF
z-trm
L
f
(Z-TRM)
