Omron K3HB Applications Manual

Functions and Operations
Section 5 Functions and Operations
5-58

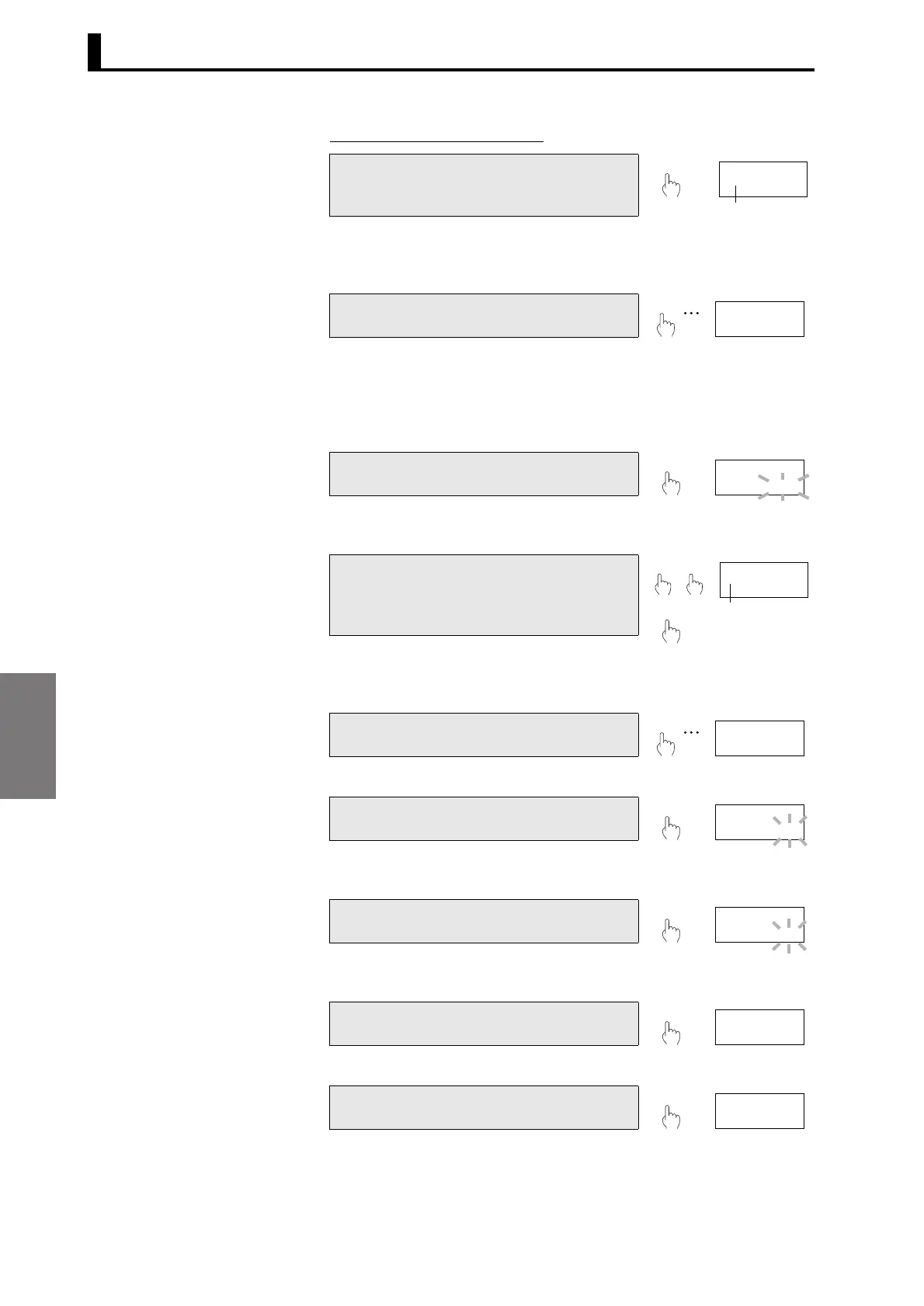

Parameter Setting Procedure
A Press the L[LEVEL] Key for at least 3
s in RUN level to move to the initial
setting level.
3 s min.
•"
L
0" is displayed on the level/bank
display to indicate the initial setting
level.
B Press the M[MODE] Key several times
to change the PV display to "amov".
•
This parameter is not displayed for the
initial status due to setting level protect.
Refer to "Limiting Key Operations" (P.5-
80) for information on removing setting
level protect.
C Press the S[SHIFT] Key to make the
SV display flash.
• The setting can be changed when the
SV display starts to flash.
D Use the U[UP] and S[SHIFT] Keys to
set the password "-0169". Press the
M[MODE] Key to move to the
advanced-function setting level.
•"
L
f" is displayed on the level/bank
display to indicate the advanced-
function setting level.
E Press the M[MODE] Key several times
to switch the PV display to "z-trm".
F Press the S[SHIFT] Key to make the
SV display flash.
• The setting can be changed when the
SV display starts to flash.
G Use the U[UP] Key to change the set
value to "on".
• Change the set value to "off" to turn
OFF zero-trimming.
H Press the M[MODE] Key to switch to
the next parameter.
• The set value is registered.
I Press the L[LEVEL] Key for at least 1
s to return to the initial setting level.
1 s min.
L
cal
0
Displays "
L
0".
L 0
M
amov
0
L
0
S
amov
00000
L
0
SU
M
init
Displays "
L
f".
off
L
f
M
z-trm
off
L
f
S
z-trm
off
L
f
U
z-trm
on
L
f
M
hp-f
off
L
f
L
cal
0
L
0
