Functions and Operations
Section 5 Functions and Operations
5-36

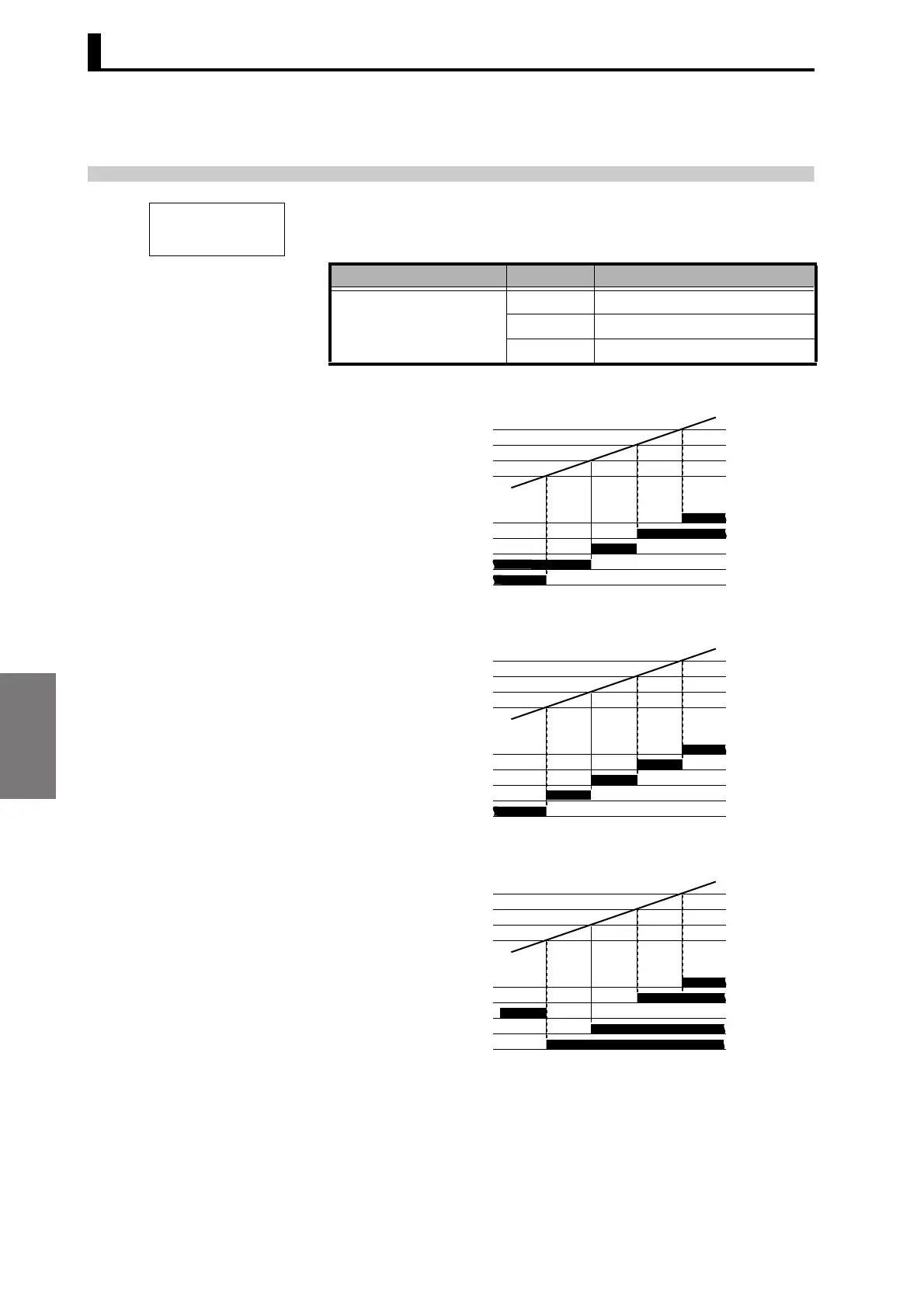

5.12 Changing Comparative Output Patterns
Compares the measurement value and comparative set value and
outputs the comparative result. The output pattern is set using the
following parameter.
Standard output
Zone output
Level output
* PASS output turns ON when any HH, H, L, or LL outputs turn OFF.
Initial setting level
Parameter Set value Meaning of set value
Comparative output
pattern
out-p
nomal Standard output
zone Zone output
level Level output
out-p
L
0
(OUT-P)
Measurement value
OFF
ON
Comparative set value H
Comparative set value HH
Comparative set value L
Comparative set value LL
Output HH
Output H
Output PASS
Output L
Output LL
Measurement value
OFF
ON
Comparative set value H
Comparative set value HH
Comparative set value L
Comparative set value LL
Output HH
Output H
Output PASS
Output L
Output LL
Measurement value
OFF
ON
Comparative set value H
Comparative set value HH
Comparative set value L
Comparative set value LL
Output HH
Output H
Output PASS
Output L
Output LL
