5.16 Holding measurement status
Measurement values, maximum values, minimum values, and output
status can be held while the HOLD input is ON.
• The measurement value when HOLD input turns ON is held.
• When HOLD input turns OFF, the measurement value at that time
is restored.
• During HOLD inputs, signals other than RESET input and bank
number selection using bank selection are not accepted.
• If HOLD input turns ON in no measurement status, a sensor error
has occurred, or there is an overflow, the status at that time is
held.
• Forced-zero is not accepted during HOLD input.

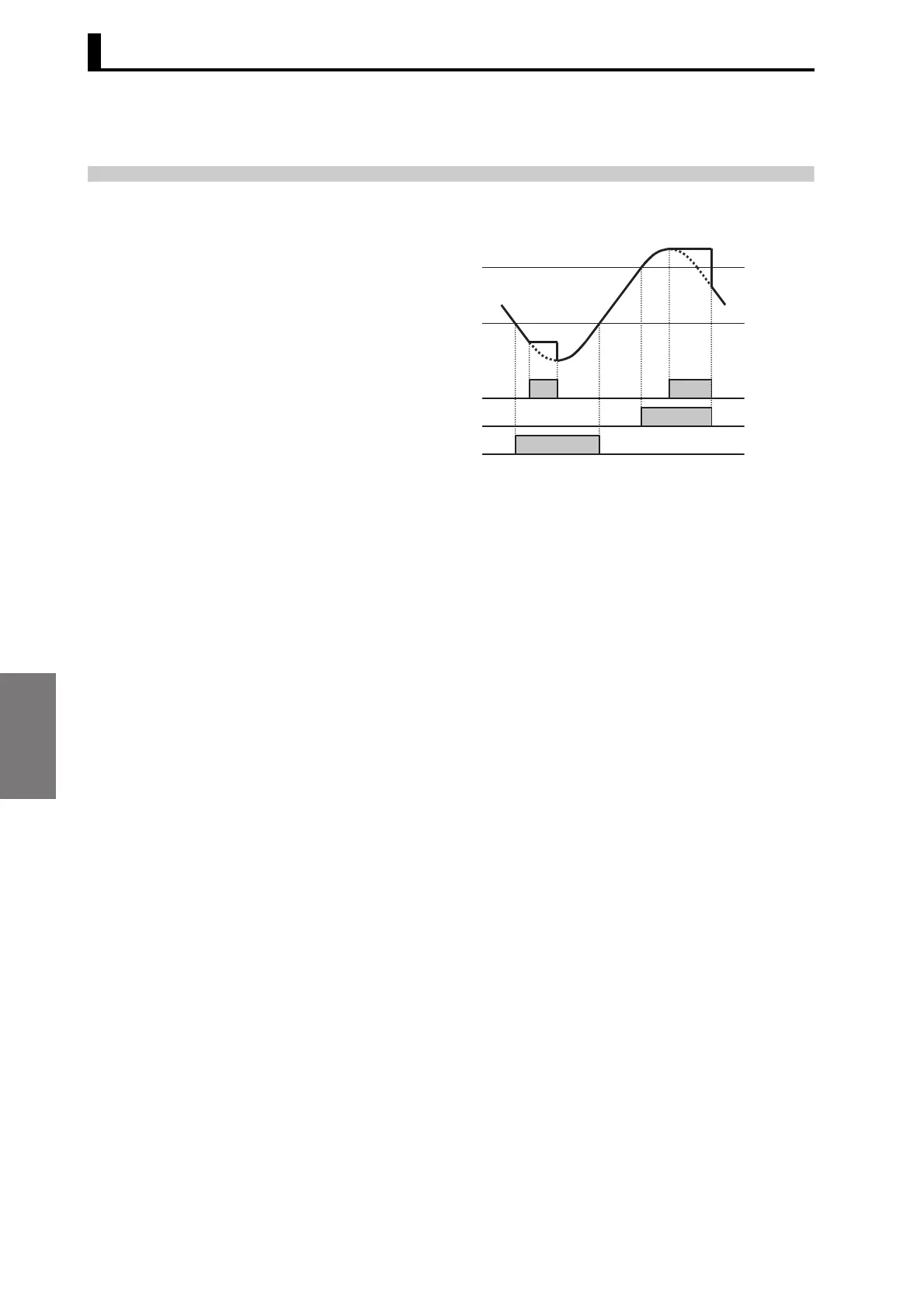

HOLD input
Comparative
set vaLue HH/H
Comparative
set value LL/L
Output HH/H
Output LL/L
