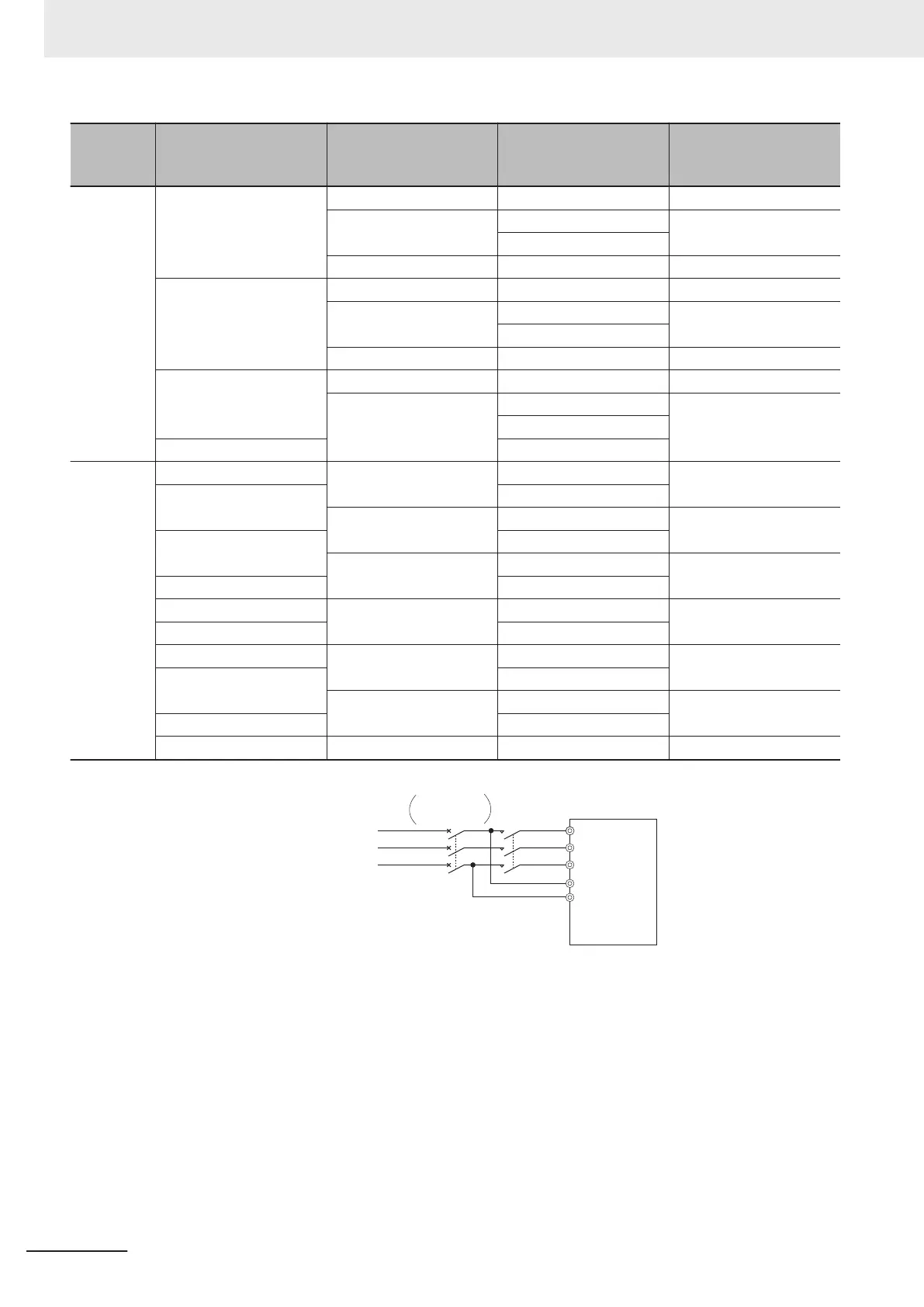

Power
supply
line
Standard applicable
motor (kW)
Inverter model Specifications Fuse rating (A)
Three-
phase 400
V
18.5 3G3M1-A4110 ND 125 (IEC 60269-4)
3G3M1-A4150 HND 160 (IEC 60269-4)
HD
3G3M1-A4185 HHD 160 (IEC 60269-4)
22 3G3M1-A4150 ND 160 (IEC 60269-4)
3G3M1-A4185 HND 160 (IEC 60269-4)
HD
3G3M1-A4220 HHD 200 (IEC 60269-4)
30 3G3M1-A4185 ND 160 (IEC 60269-4)
3G3M1-A4220 HND 200 (IEC 60269-4)
HD
37 ND
Single-
phase 200
V
0.1 3G3M1-AB001 HHD 50 (IEC 60269-4)
0.2 HND
3G3M1-AB002 HHD 50 (IEC 60269-4)
0.4 HND
3G3M1-AB004 HHD 50 (IEC 60269-4)
0.55 HND
0.75 3G3M1-AB007 HHD 50 (IEC 60269-4)
1.1 HND
1.5 3G3M1-AB015 HHD 125 (IEC 60269-4)
2.2 HND
3G3M1-AB022 HHD 125 (IEC 60269-4)
3 HND
3.7 3G3M1-AB037 HHD 160 (IEC 60269-4)
Disconnect
Cutter
MC
Inverter
L1/R
L2/S
L3/T
R0
T0
MCCB
RCD/ELCB, etc,
Power
supply
Power
supply
or
Use a molded case circuit breaker (MCCB), residual current device (RCD) or earth leakage
circuit breaker (ELCB), and magnetic contactor (MC) that are compliance with EN or IEC
Standards.
When using a residual current device (RCD) or earth leakage circuit breaker (ELCB) as
protection against electric shock through direct or indirect contact with the power line or
node, be sure to install a RCD or ELCB of type B (DC capable) model on the input side
(primary side) of the inverter.
2 Design
2-66
M1 Series Standard Type User's Manual (I669)
