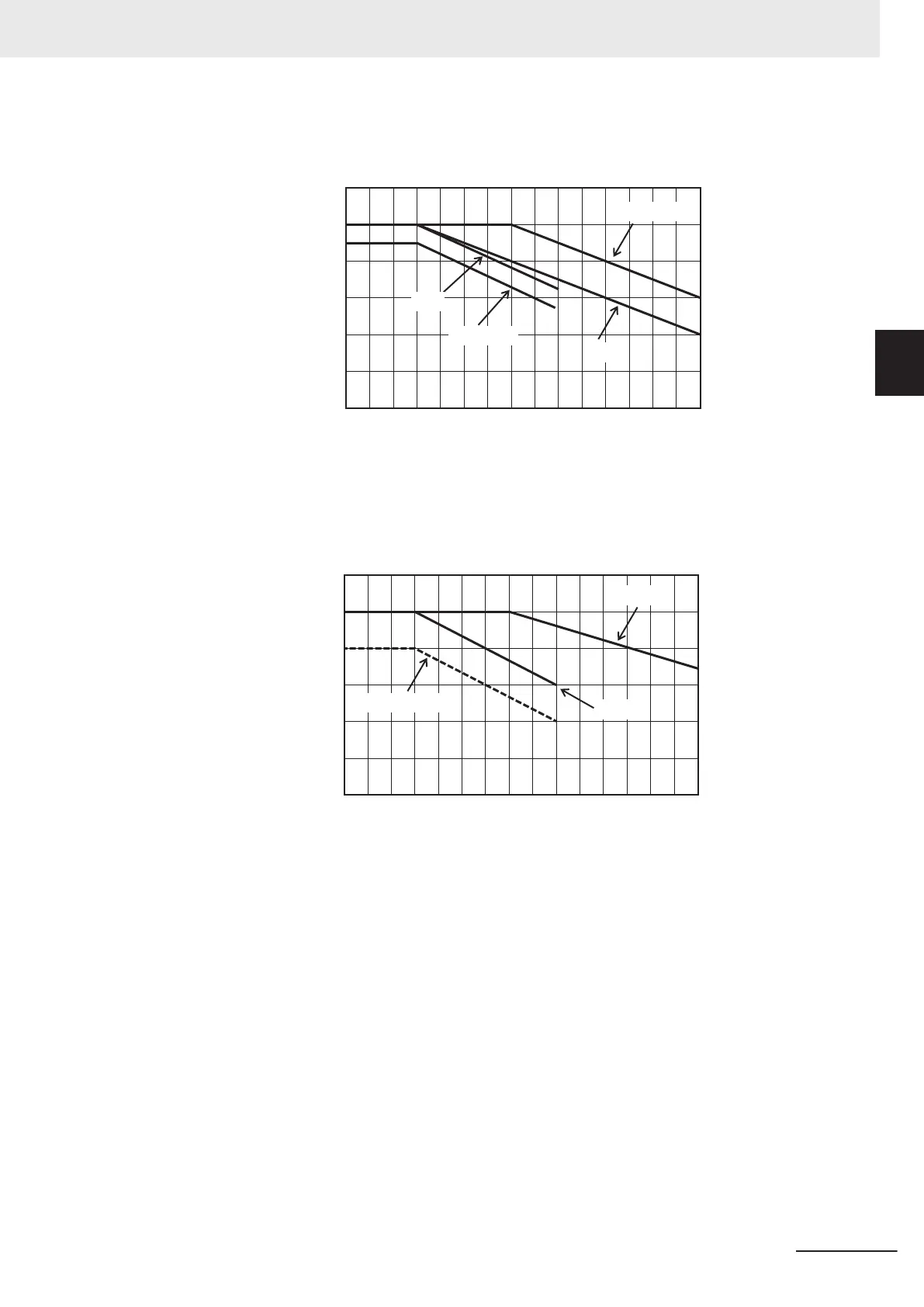

3G3M1-A4022
6 11
16
1
100
120
80
60
40
20
0
Output current derating [%]
Carrier frequency [kHz]
ND
50°C HND
HD
HND/HHD
3G3M1-AB001/AB002/AB004/AB007/AB015/AB022
6 11
16
1
100
120
80
60
40
20
0
Output current derating [%]
Carrier frequency [kHz]
HHD
HND
50°C HND(*1)
*1. When using 3G3M1-AB004/AB007/AB015/AB022 at 50°C.
Appendix
A-5
M1 Series Standard Type User's Manual (I669)
A-1 Derating Table
