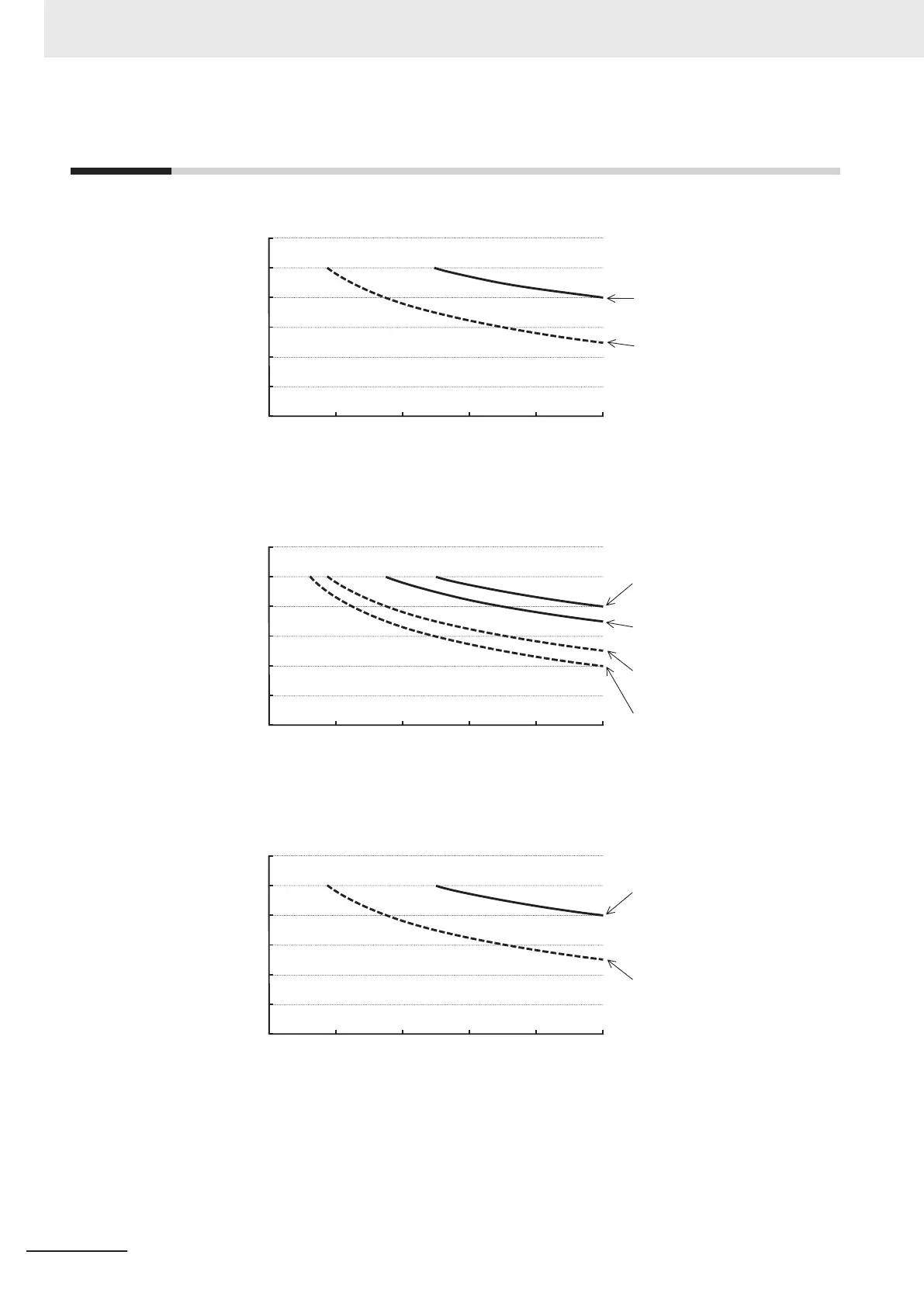

Smoothing Capacitor Life Curve
10
0
20
30
40
50
60
100 2 4 6 8
Ambient temperature [°C]
Capacitor life [Year]
Three-phase 200 V, 1.5 kW or lower, single-phase 200 V, 0.1
kW
Electrification for 24 hours a day,
at load rate of 80% (HHD/HND)
Electrification for 24 hours a day,
at load rate of 100% (HHD/HND)
10
0
20
30
40
50
60
100 2 4 6 8
Ambient temperature [°C]
Capacitor life [Year]
Three-phase 200 V, 2.2 kW, 3.7 kW
Electrification for 24 hours a day,
at load rate of 80% (HND)
Electrification for 24 hours a
day,
at load rate of 80% (HHD)
Electrification for 24 hours a day,
at load rate of 100% (HHD)
Electrification for 24 hours a day,
at load rate of 100% (HND)
10
0
20
30
40
50
60
100 2 4 6 8
Ambient temperature [°C]
Capacitor life [Year]
Three-phase 200 V, 5.5 kW or higher
Electrification for 24 hours a day,
at load rate of 100% (HHD) and
80% (HND)
Electrification for 24 hours a day,
at load rate of 100% (HND)
Appendix
A-6
M1 Series Standard Type User's Manual (I669)

Omron M1 Series Specifications

General

Input Voltage	200-240V AC
Output Voltage	3-phase 200 to 240 VAC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Communication	RS-485, Modbus RTU
Enclosure	IP20
Cooling Method	Fan Cooled
Operating Temperature	-10°C to +50°C
Humidity	5-95% (non-condensing)
Altitude	Up to 1000m
Frequency Range	0.5-400 Hz
Storage Temperature	-20°C to +65°C
