Omron NJ Series User Manual

11-5
11 Example of Actual Application Procedures
NJ-series CPU Unit Software User’s Manual (W501)
11-2 Overview of the Example Procedure
11
11-2-3 Software Settings from the Sysmac Studio
1 Double-click EtherCAT under Configurations and Setup.
2 Create the slave configuration by dragging slaves.
3 Select the master and set the master parameters.
4 Select each slave and set the slave parameters.
Additional Information
At this point, you can use forced resetting from the I/O Map to check the wiring.

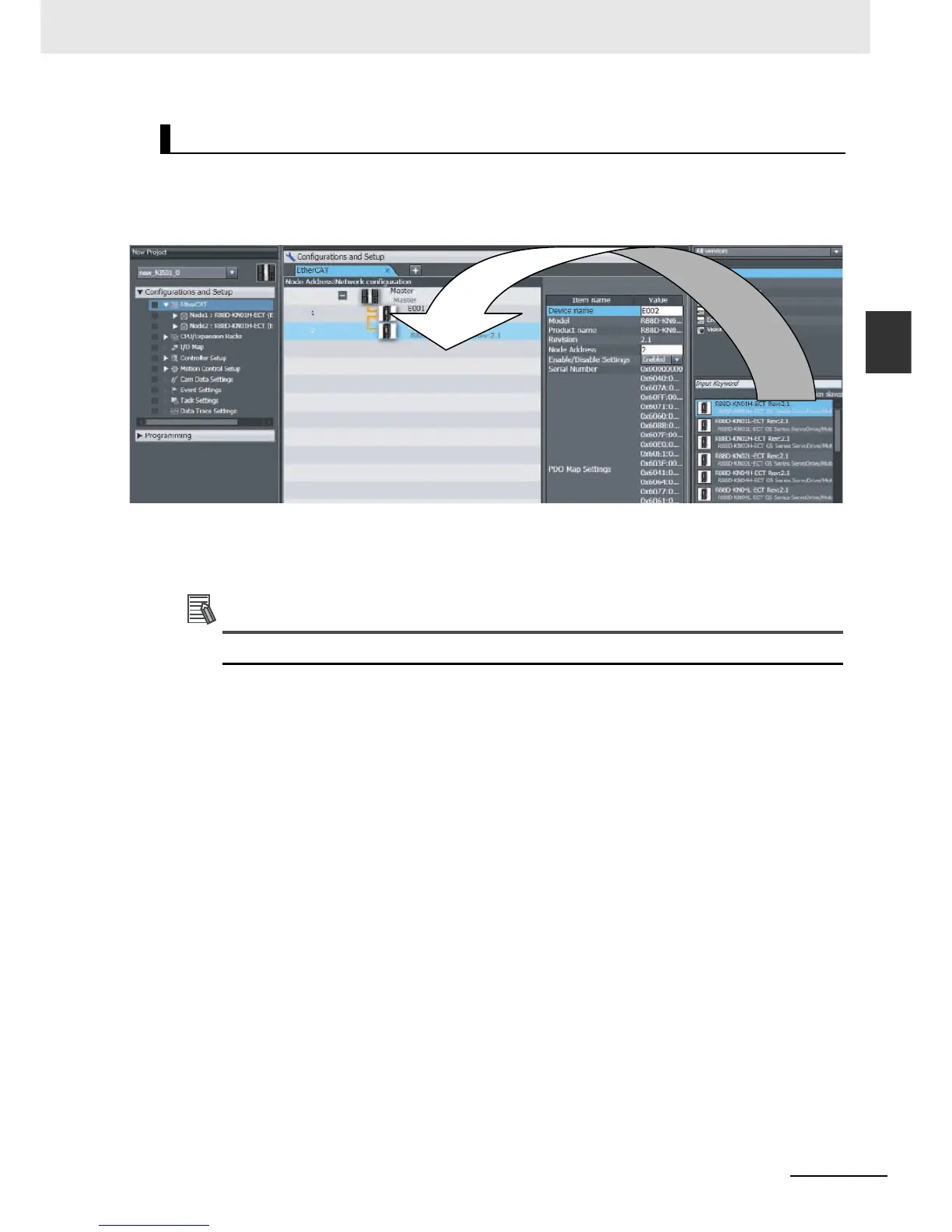

Create the EtherCAT Slave Configuration.

Omron NJ Series Specifications

General

Program Capacity	Up to 128 MB
SD Card Slot	Yes
Power Supply Voltage	24 VDC
Motion Control	Yes
USB Ports	1
Operating Temperature	0°C to 55°C
Communication Interfaces	Ethernet/IP, EtherCAT, USB
Safety Function	Optional
Storage Temperature	-20°C to 75°C
Communication Ports	USB
Dimensions	Varies by model
Weight	Varies by model
