A-11 Replacing CPU Units with Unit Version 1.02 or Earlier
App
A-11-1 Uploading the Data from the CPU Unit

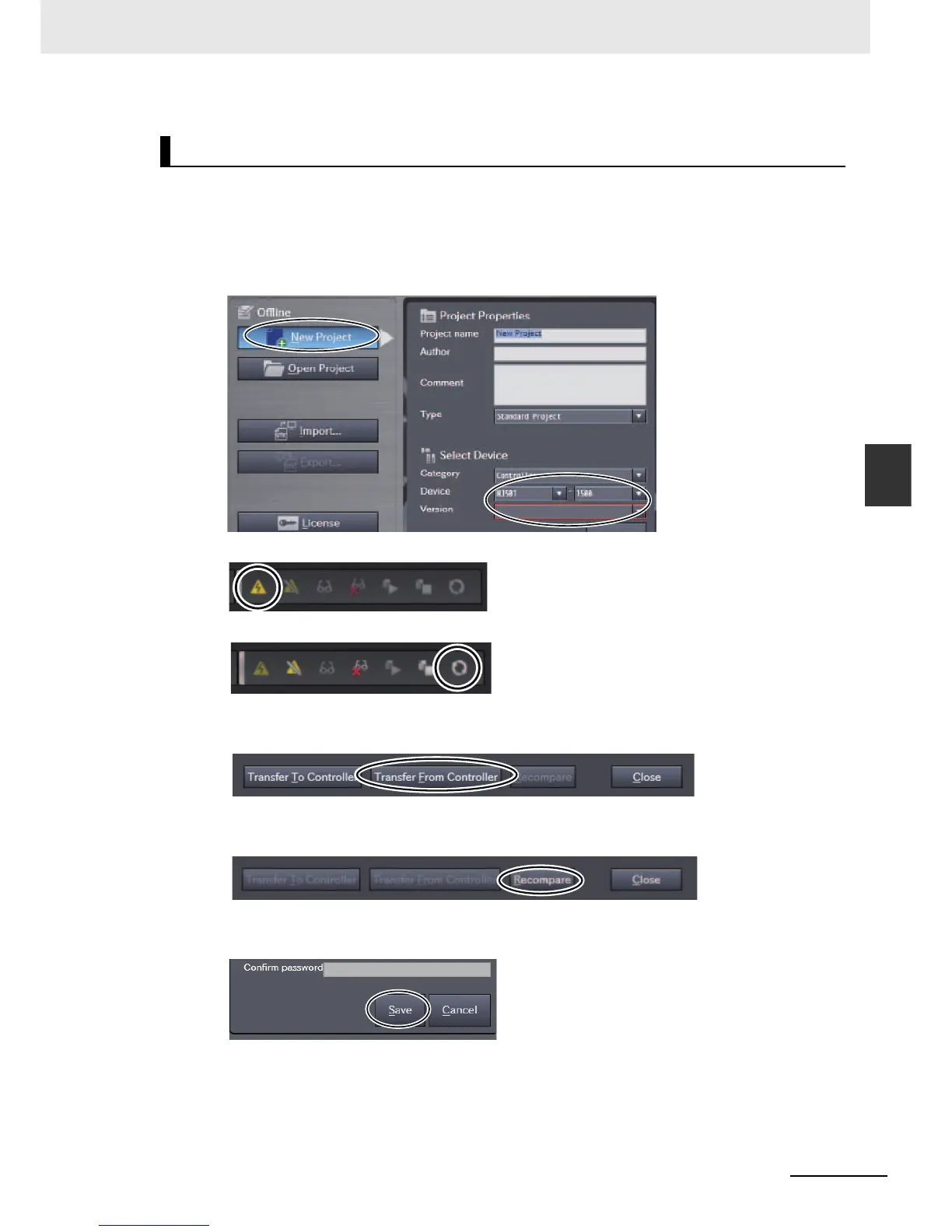

Use the following procedure to upload the project.
1 Start the Sysmac Studio on the computer that is connected to the NJ-series Controller.
2 Click the New Project Button and create a new project.
3 Select the device and version of the CPU Unit to replace.
4 Click the Online Button in the toolbar.
5 Click the Synchronize Button in the toolbar.
6 Click the Transfer From Controller Button.
The project in the Controller is uploaded to the computer.
7 Click the Recompare Button.
The uploaded project is compared to the project in the Controller.
8 Click the Save Button.
The project is saved in the computer.
