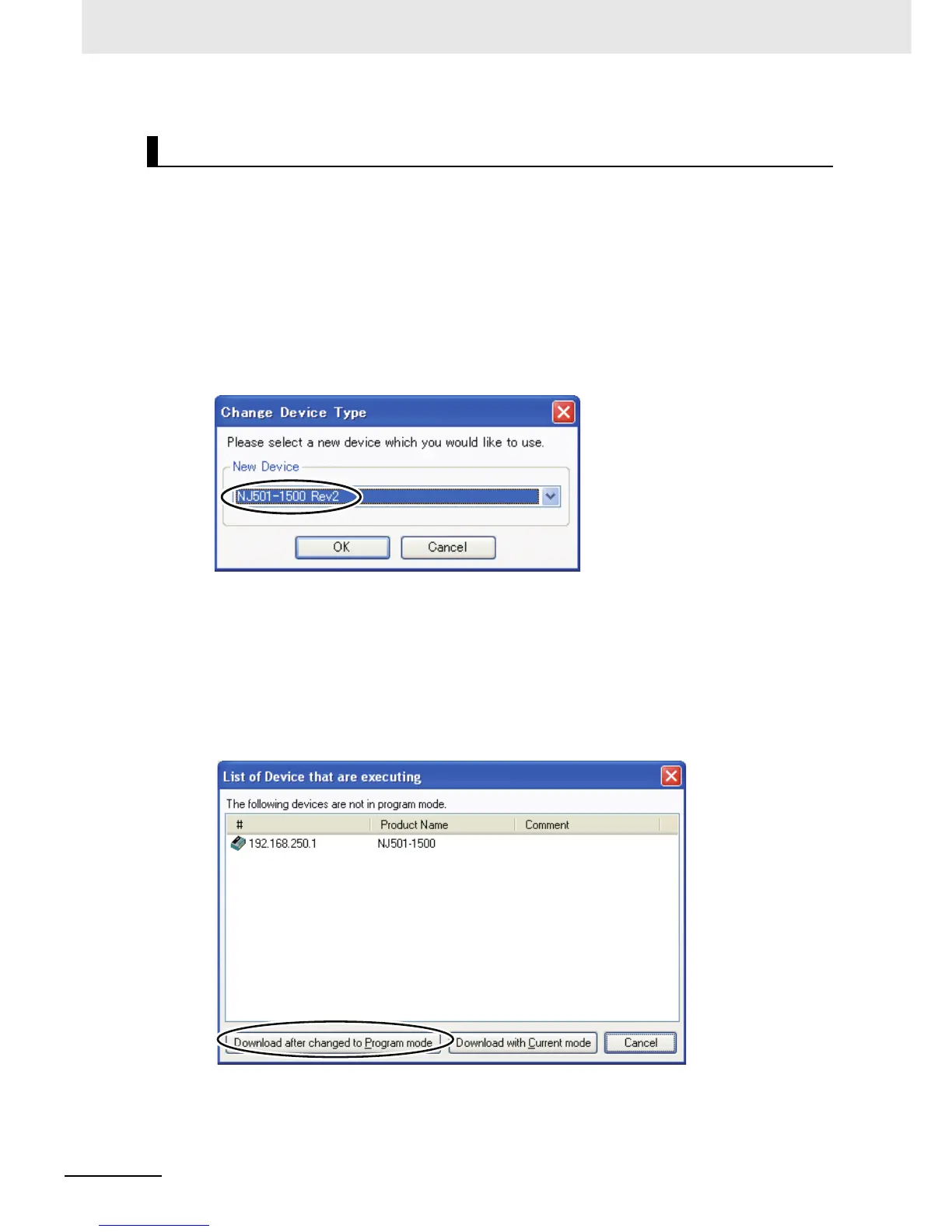

Use the following procedure to download the tag data link tables.
1
Start the Network Configurator on the computer that is connected to the NJ-series Con-
troller.
2
Select Network
Connect from the toolbar.
3
Select File
Open and open the tag data link file that you uploaded from the old CPU
Unit.
4
To download tag data link tables to a CPU Unit with unit version 1.03 or later when the tag
data link tables were uploaded from a CPU Unit with unit version 1.02 or earlier, select
Device
Change Device and select NJ
-1
Rev2 as the new device.
5
Select Network
Download from the toolbar.
The following message is displayed: “In order to enable new configuration, downloading param-
eters to all devices will start, OK?”
6
Click the Yes Button.
A list of the currently active devices is displayed.
7
Click the Download after changed to Program mode Button.
The tag data link tables are downloaded to the Controller.
