Description of Use and Features

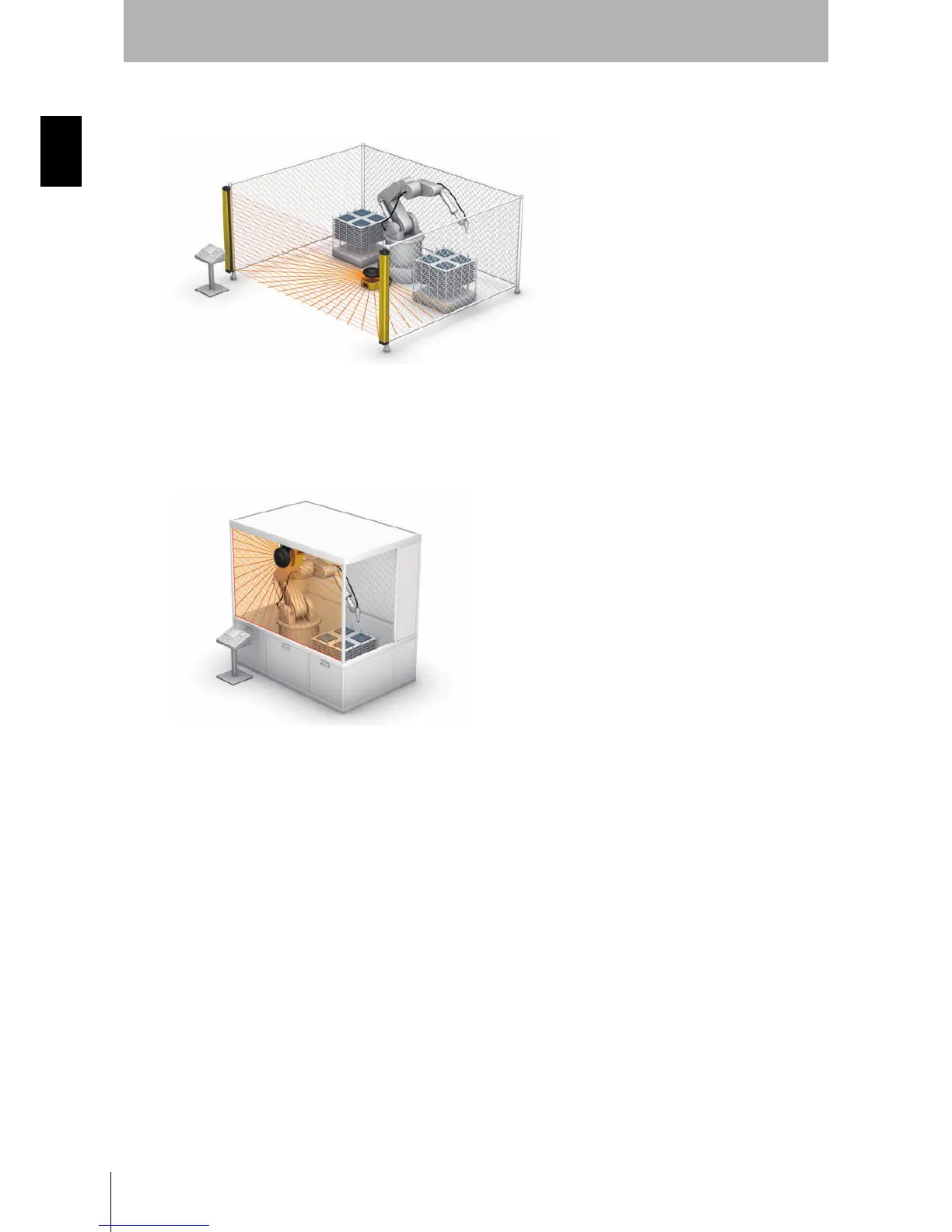

Fig. 1-4 Internal Robot Cell Guarding
In this application the OS32C is the secondary guarding device in conjunction with a safety light
curtain. The OS32C is responsible for detecting that the work area is clear before start-up of the robot
occurs.
Fig. 1-5 Vertical Guarding Installation
In this application the OS32C is the primary guarding device, using a vertical protective field for point of
operation guarding. In some cases the machine’s architecture or production flow may not permit the
installation of a safety light curtain. The OS32C meets all the requirements of IEC 61496-3 for vertical
guarding installations and employs a reference boundary monitoring function.

Omron OS32C Series Specifications

General

Response Time	80 ms
Type	Safety Laser Scanner
Protection Structure	IP65
Safety Category	Type 3
Power Supply	24 VDC
Interface	Ethernet/IP, PROFINET
Operating Temperature	-10°C to 50°C
Output	OSSD
Communication	Ethernet/IP
Configuration	Via software
Warning Zone	Configurable
