Chapter3
Basic Operation of Configuration Software
E
Window Calibration
If the scan window of the OS32C is replaced, window calibration needs to be performed. Do not execute
window calibration except when the scan window is replaced. The steps shown below describe this process.
The window calibration procedure resets the threshold values of window transmittance, which is used for
window contamination warning detection. To execute this procedure, the user must log on with the
supervisory access level.
1. From Utilities menu, select Window Calibration.
2. A screen shown below is displayed. Click Yes to confirm.

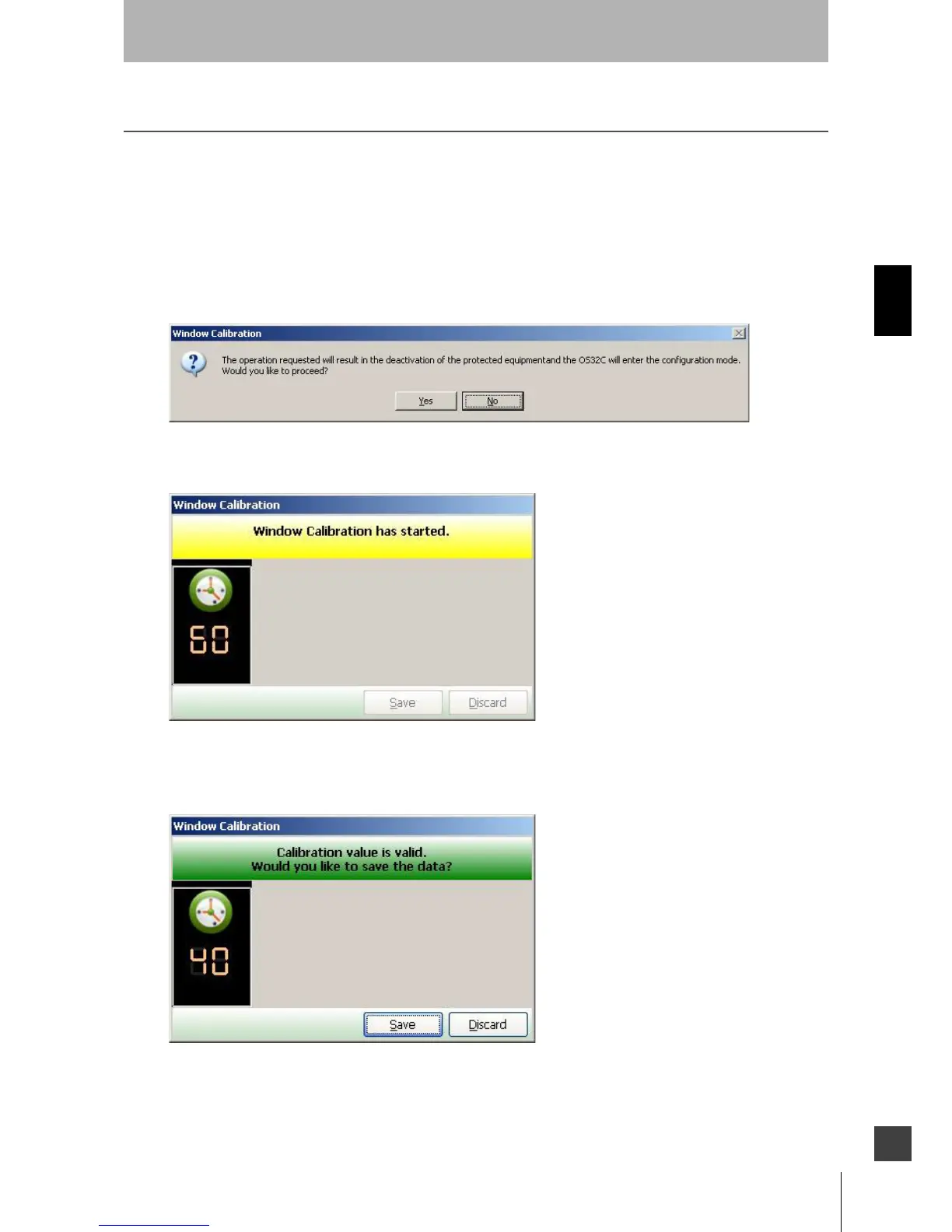

Fig. 3-77 Window Calibration
3. When window calibration starts, the window shown below is displayed.
Fig. 3-78 Calibration Starts
4. When calibration is successfully completed, the window shown below is displayed. Click Save to
confirm.
Fig. 3-79 Calibration Success
Confirm that the window calibration data has changed, and wait for the OS32C to reset. Calibration is
complete.
