Chapter4
OS32C
User’s Manual
Installation
 Mounting Stand

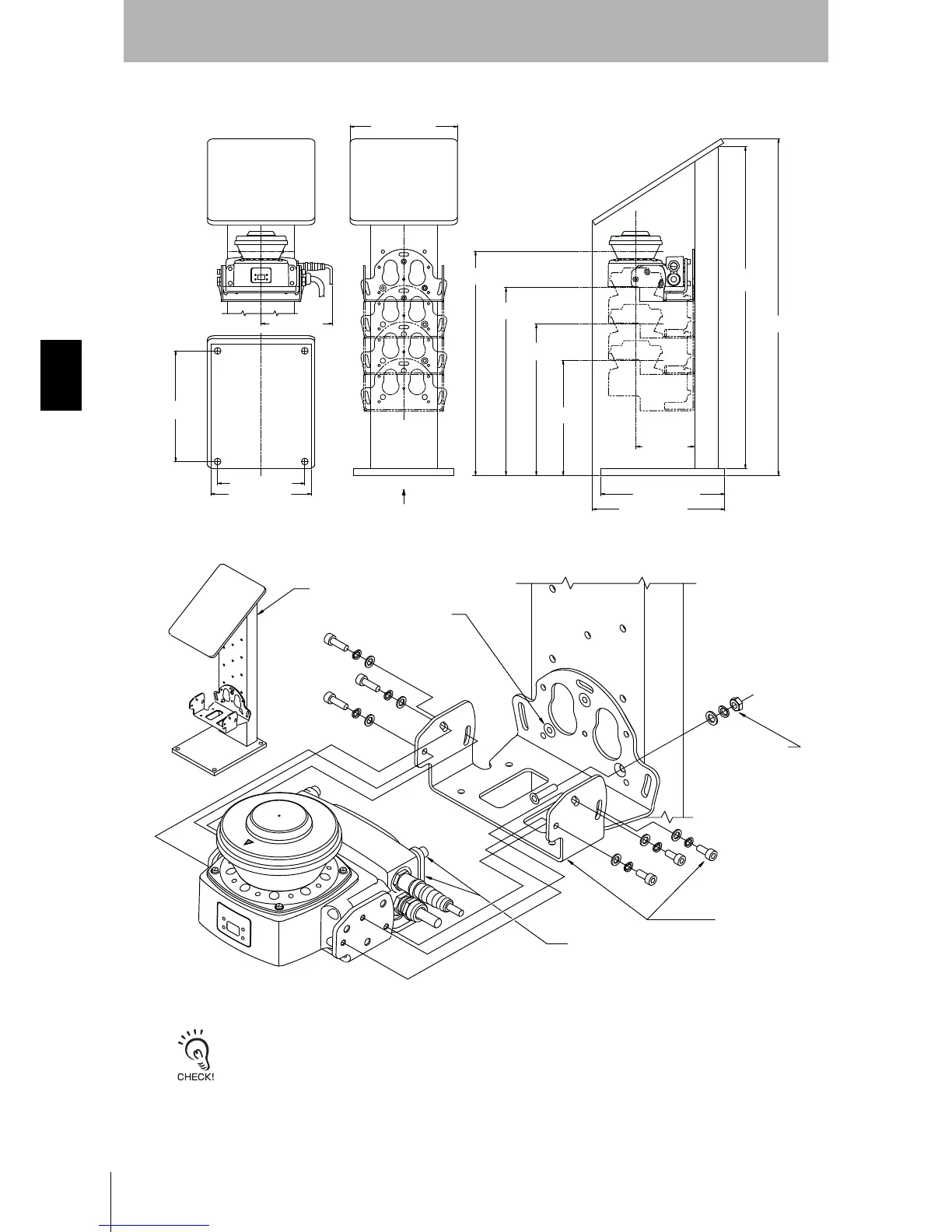

Fig. 4-34 Mounting Stand Kit
Fig. 4-35 Mounting Stand Assembly OS32C-MT
When using a mounting stand, use an OS32C with side cable entry. The OS32C with back cable entry cannot be
used.
111.7[4.40]
165.1 [6.50]
190.5 [7.50]
A
209.6 [8.25]
VIEW
A
637.2 [25.09]
609.6 [24.00]
235.0 [9.25]
250.8 [9.87]
217.3 [8.56]
286.2 [11.27]
355.1 [13.98]
424.0 [16.69]
203.2 [8.00]
137.2 [5.40]
DIMENSIONS: mm [Inches]
FOR STAND MOUNTING:
(x3) HOLES
HARDWARE SHOWN INSTALLED IN
(x2) PLACES ONLY
MODEL OS32C-BKT2
OS32C-MT
MOUNTING STAND
MODEL OS32C-BKT1
MOUNTING KIT
MOUNTING KIT
MODEL OS32C-HDT
HARDWARE KIT
(OPTIONAL - CAN BE
USER SUPPLIED)
M6 x 20 FLAT HEAD 90 DEG
SCREW, FLAT & SPLIT
WASHERS, AND NUT
