OS32C
User’s Manual
Chapter3
Basic Operation of Configuration Software
E

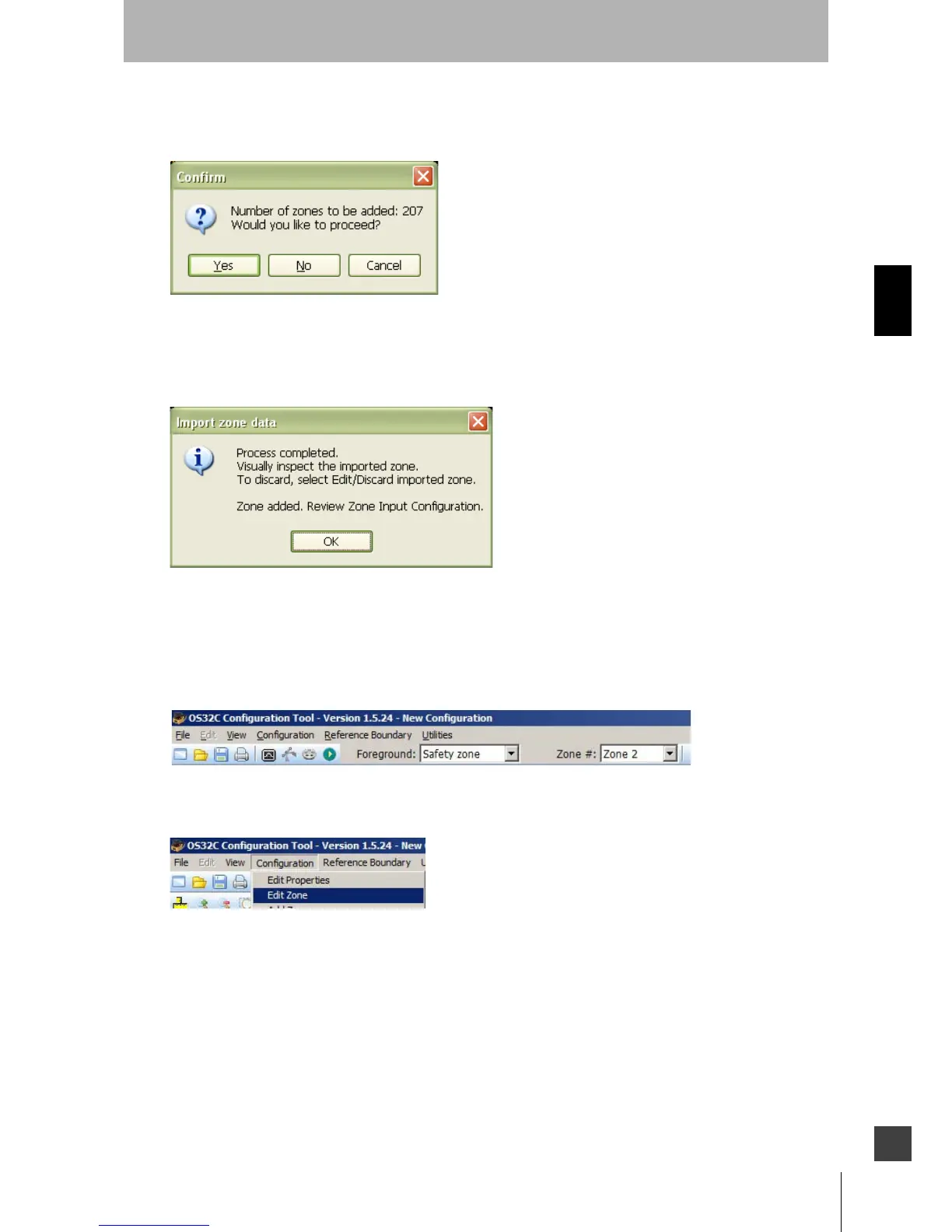

The following message will indicate the number of new zones to be added. If the current configuration
contains one DZS (3 zones) and the text file contains data for 69 DZS’s (207 zones). The process will
create new DZS’s to import the data.
Fig. 3-33 Zones to be added
Once the configuration tool has imported and displayed the zone, verify that the imported zone
displayed is correct. Click OK to accept the imported zone shape and use this shape for the zone
selected in step 3, go to Edit select Discard Imported zone data.
Fig. 3-34 Confirm imported zones
 Exporting Zone Coordinate Data
1. Start the OS32C Configuration Tool
2. Create a new configuration or load an existing one
3. Select the zone to be exported, by selecting the zone number and the desired safety or warning zone:
Fig. 3-35 Select zone
4. From the Configuration menu select Edit Zone
Fig. 3-36 Edit Zone
