Omron OS32C Series User Manual

38
Chapter3
OS32C
User’s Manual
Basic Operation of Configuration Software

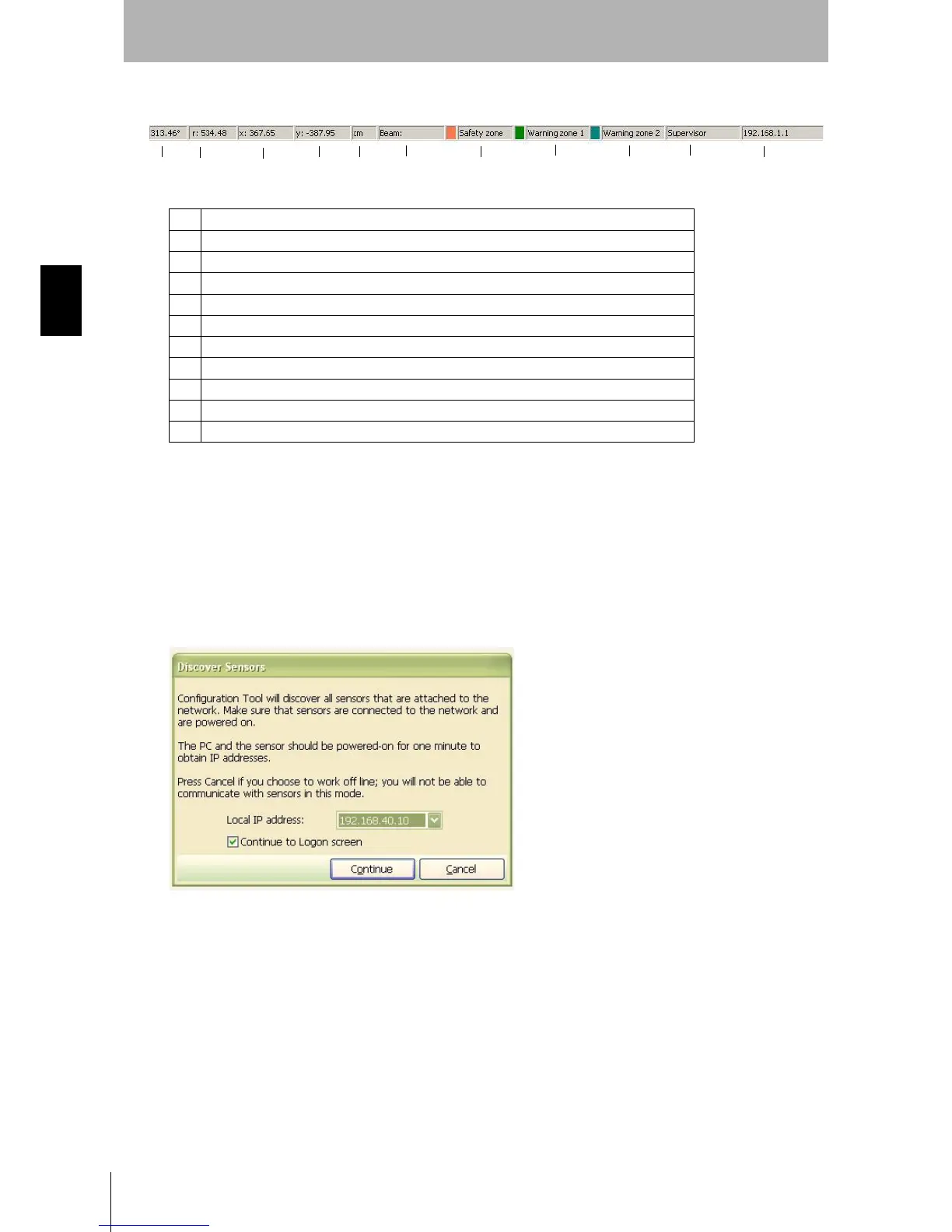

 Information Bar
Fig. 3-4
Table 3-9
 Offline Mode
In offline mode, a user can create, configure, and save a configuration to the PC, as well as load and
edit existing configurations on the PC. To enter offline mode, follow the steps shown below:
1. After the configuration software is launched, the window shown below is displayed.
2. Click Cancel.
3. The configuration software is launched in offline mode.
Fig. 3-5 Offine Configuration
(1) Shows mouse position in polar coordinates (degrees)
(2) Shows mouse position in polar coordinates (radius)
(3) Shows mouse position in cartesian coordinates (x-axis)
(4) Shows mouse position in cartesian coordinates (y-axis)
(5) Shows unit of measure of mouse position
(6) Shows beam number of the mouse position
(7) Shows color of safety zone in the zone information screen
(8) Shows color of warning zone 1 in the zone information screen
(9) Shows color of warning zone 2 in the zone information screen
(10) Shows current logon access level
(11) When connected to an OS32C, displays the IP Address of the OS32C
(1) (2) (3)
(4)
(5) (6)
(8)
(7)
(9)
(10)
(11)

Omron OS32C Series Specifications

General

Response Time	80 ms
Type	Safety Laser Scanner
Protection Structure	IP65
Safety Category	Type 3
Power Supply	24 VDC
Interface	Ethernet/IP, PROFINET
Operating Temperature	-10°C to 50°C
Output	OSSD
Communication	Ethernet/IP
Configuration	Via software
Warning Zone	Configurable
