OS32C
User’s Manual
Basic Operation of Configuration Software
5. From the Edit menu select Import Zone Data:

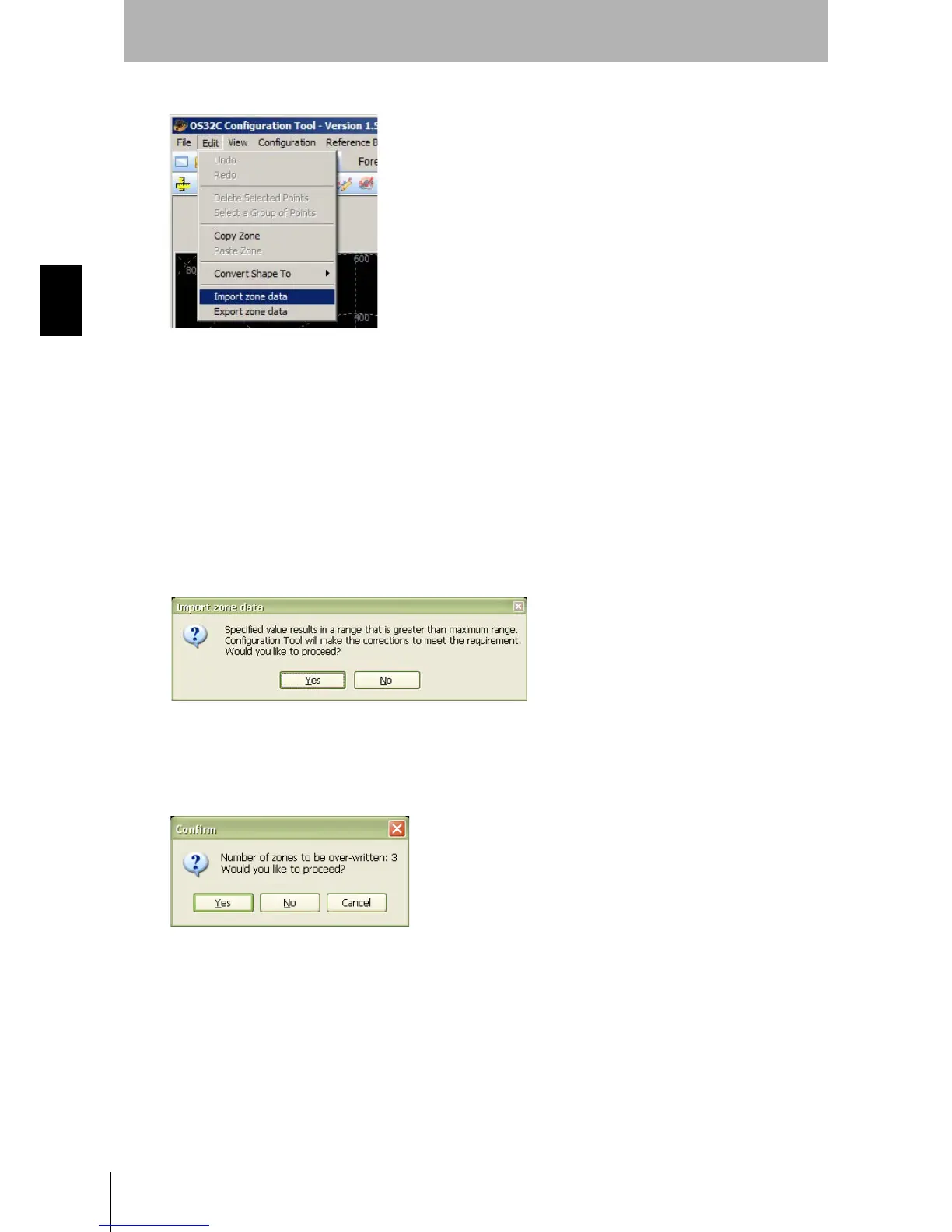

Fig. 3-30 Import Zone Data
6. Locate and select the file with the data to be imported.
7. The configuration tool will import the data from the text file and check the validity of the data.
If the data in the text file is not valid the configuration tool will prompt the user to correct the text file and
try again.
The configuration tool will verify the zone data in the text file:
- is within minimum and maximum range of the zone being imported to
- is within the range allowed by the selected minimum object resolution
- has valid angular boundaries (does not fall within the area between 225° and 315°)
If these criteria are not met, the configuration tool will alert the user and offer to make corrections to the
specified zone in order to meet the requirements. Example error message:
Fig. 3-31 Confirm configuration tool suggested correction
8. The following message will indicate if any zones will be over-written. Example: If the current
configuration already contains DZS #2 and the text file also contains DZS #2 to be imported. The
process will overwrite the existing zones from DZS #2.
Fig. 3-32 Zones over-written
