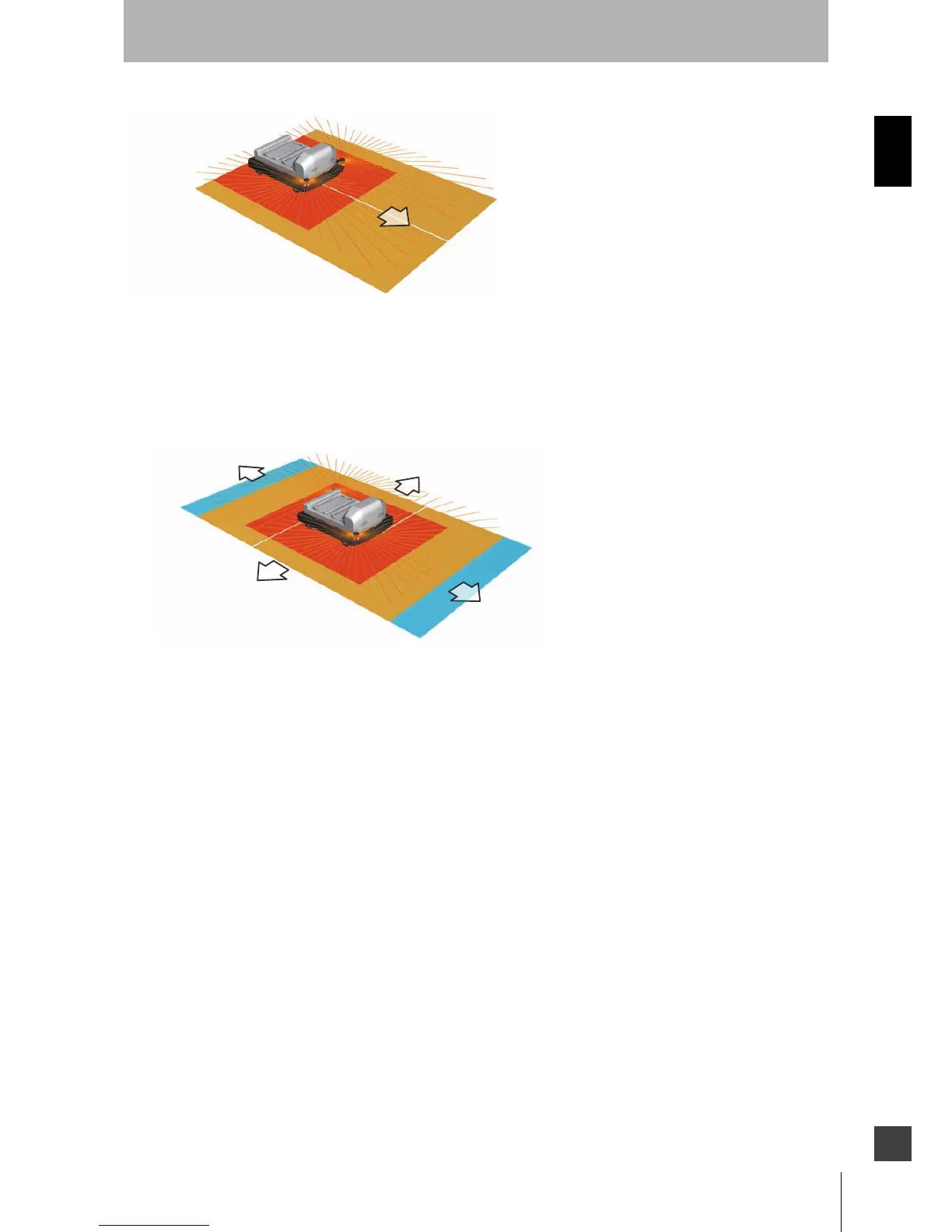

Fig. 1-10 Automated Guided Vehicles (AGV), Two Scanners, Three Sided
In this application two OS32Cs are used as the primary guarding devices, using 270 degree protective
fields. They are positioned at the front corners, this scheme allows for two scanners to guard three
sides of the AGV. This configuration is appropriate for AGVs that can maneuver in three directions,
forward and side-to-side.
Fig. 1-11 Automated Guided Vehicles (AGV), Two Scanners, Four Sided
In this application two OS32Cs are used as the primary guarding devices, using 270 degree protective
fields. They are positioned at opposite corners. This scheme allows for two scanners to guard four
sides of the AGV. This configuration is appropriate for AGVs that can maneuver in four directions,
forward, reverse and side-to-side.

Omron OS32C Series Specifications

General

Response Time	80 ms
Type	Safety Laser Scanner
Protection Structure	IP65
Safety Category	Type 3
Power Supply	24 VDC
Interface	Ethernet/IP, PROFINET
Operating Temperature	-10°C to 50°C
Output	OSSD
Communication	Ethernet/IP
Configuration	Via software
Warning Zone	Configurable
