OS32C
User’s Manual
Chapter3
Basic Operation of Configuration Software
E
6. When the configuration tool detects multiple scanners on a network, the user will be prompted to enter
a 4-digit code from the seven-segment display of the scanner being configured. The order in which
each two-digit pair is entered does not matter.

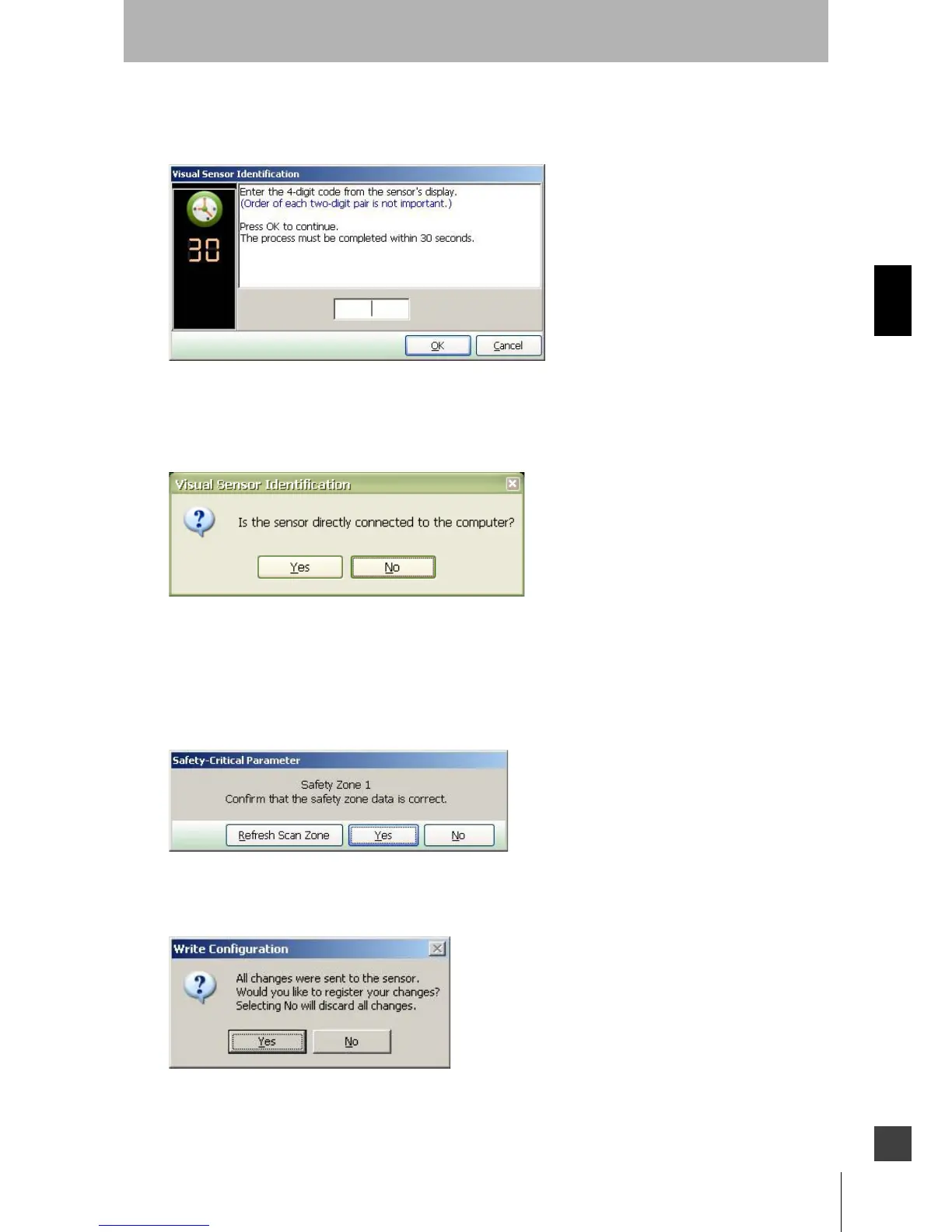

Fig. 3-48 Visual Scanner Identification
When the configuration tool detects only one scanner on the network, the user will be prompted to
confirm that the computer is connected to only one scanner. When this happens, the user will not need
to enter the 4-digit Visual Sensor Identification code when making changes to the scanner.
Fig. 3-49 Directly connected
7. A confirmation message is displayed for the changed item. Verify the message and click Yes to
confirm.
8. A message shown below is displayed for confirmation of zone configuration edits. Clicking Refresh
Scan Zone displays new scanning zone information of the OS32C on the screen. Click Yes to confirm
the configured zone. If a configured zone has not changed, this message will not appear.
Fig. 3-50 Confirming Zone Configuration
9. After transmission is finished, the window shown below is displayed. Click Yes to confirm. If you do not
want to register the configuration, click No.
Fig. 3-51 Write Configuration
