7 Tag Data Link Functions
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
7-2 Setting Tag Data Links
7
7-2-4 Creating Tags and Tag Sets
The Fault Action setting is not required for input (consume) tag sets.
• Retain output for major fault: Hold (default)
Output data maintains its previous status even after a major fault occurs.
• Clear output at major fault: Clear
Output data is cleared to 0 when a major fault occurs.
Precautions for Correct UsePrecautions for Correct Use
Connections are cut off if any of the following errors occurs in the CPU Unit that is the originator
while tag data links are active.
• Major fault level Controller error
• Partial fault level Controller error
9
After you register all of the required tags, click the OK Button in the Edit Tags Dialog Box.

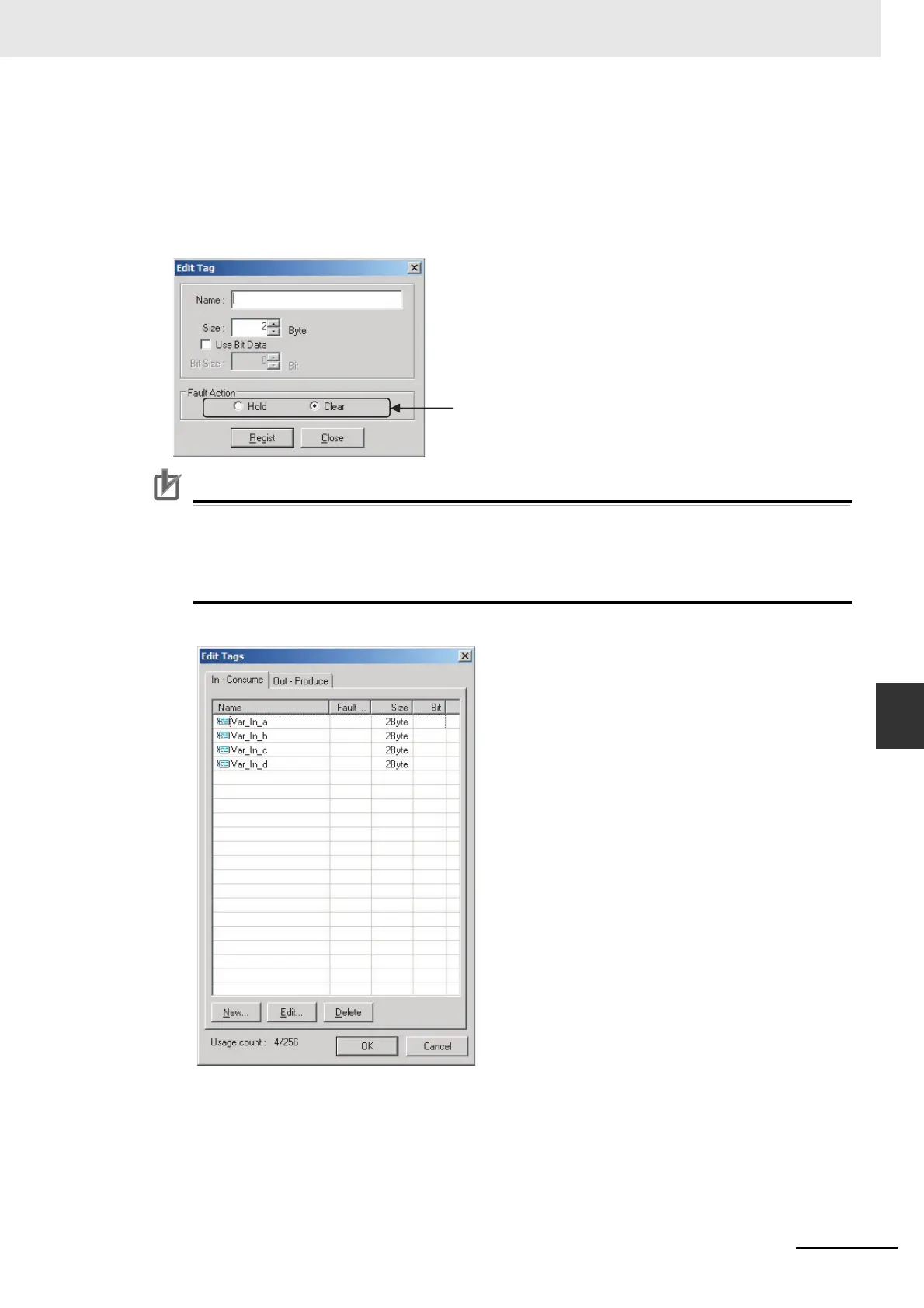

Select the Hold or Clear Option.
