7-31
7 Tag Data Link Functions
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
7-2 Setting Tag Data Links
7
7-2-4 Creating Tags and Tag Sets
18
After you register all of the required tags, click the OK Button at the bottom of the Edit Tags Dia-
log Box.
19

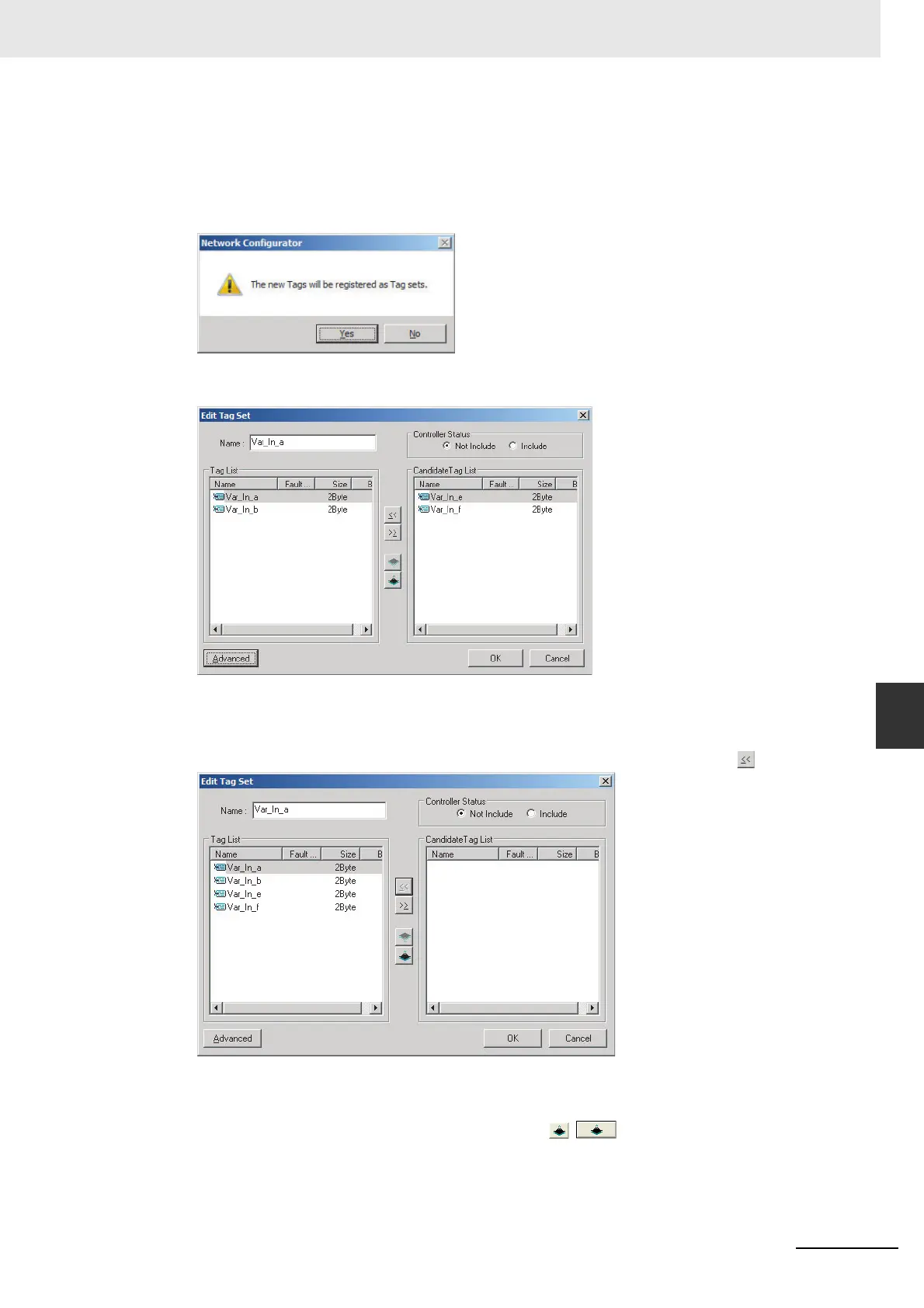

At this point, a confirmation dialog box is displayed to check whether the registered tag names
are used as the tag set names. Tags are just added in this case, so click the No Button. Just the
tags are registered. The tags are not registered as tag sets.
20
To register the newly added tags in a tag set, either double-click the desired tag set, or select
the tag set and click the Edit Button.
The Tag List on the left side of the dialog box shows the tags that are already registered, and the
Candidate Tag List on the right side of the dialog box shows the other tags that are not regis-
tered yet.
21
Select the tags that you want to add from the Candidate Tag List and click the Button.
You can register up to eight tags in a tag set. (If you include the Controller status in the tag set,
you can register up to only seven tags, and two bytes are added to the size.)
Data is sent and received in the order it is displayed in the tag list. To change the order of a tag,
select the tag and click the Up and Down Buttons ( ).
22
To confirm the changes, click the OK Button at the bottom of the Edit Tag Set Dialog Box.
23
Click the OK Button in the Edit Device Parameters Dialog Box.
To Next Page
