7 Tag Data Link Functions
7-36
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
3

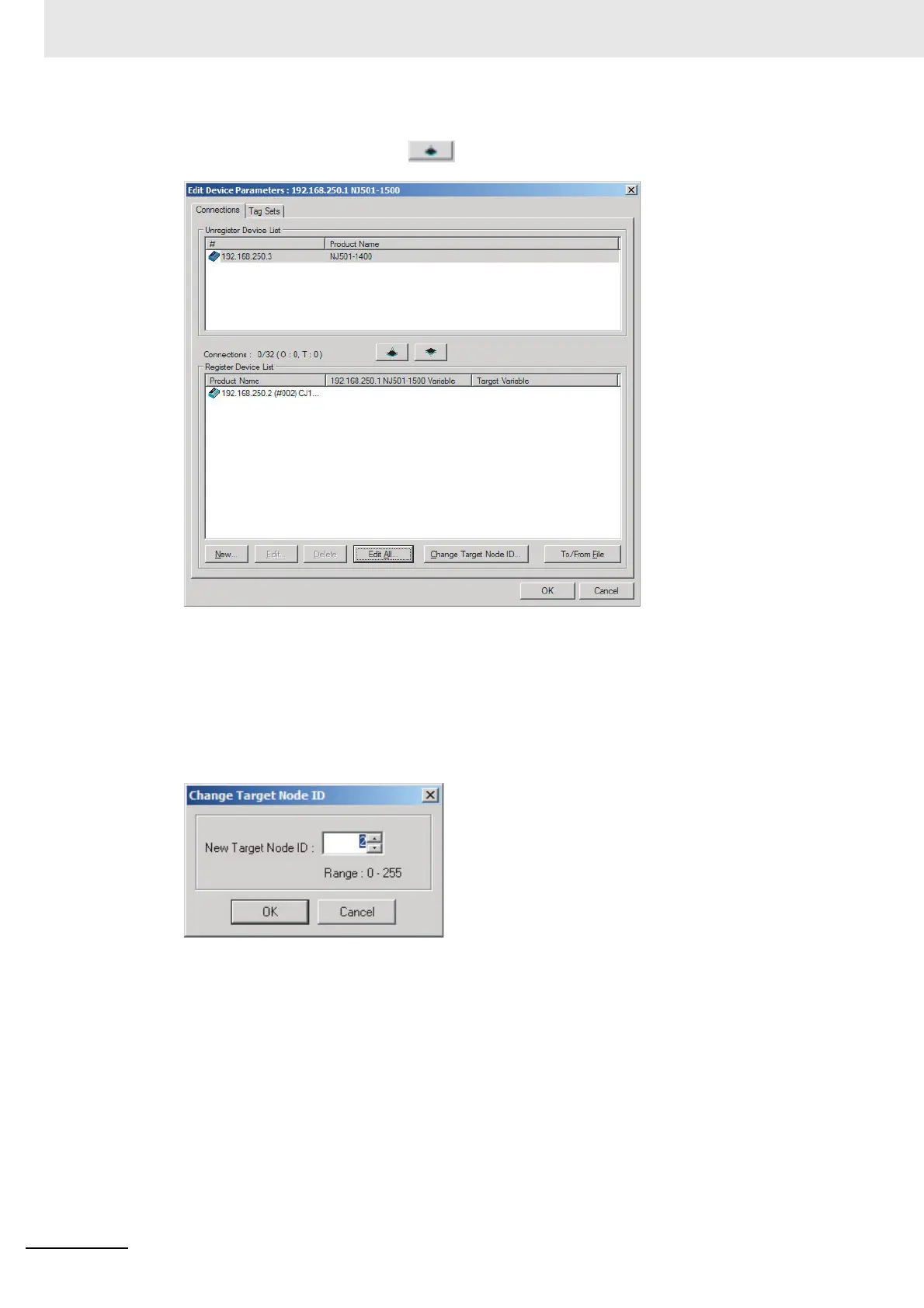

In the Unregister Device List, click the target device that requires connection settings so its color
changes to gray, and click the Button. The selected target device is displayed in the
Register Device List, as shown in the following diagram.
4
Target node IDs are assigned to the devices that are registered in the Register Device List.
The target node ID serves as the bit array position for the following variables in the originator
Controller: Target Node Controller Mode, Target Node Controller Error Information, Target Node
Error Information, Registered Target Node Information, and Normal Target Node Information. By
default, the target ID is automatically set to the rightmost 8 bits of the IP address. In the example
above, the target device’s IP address is 192.168.250.2, so the target node ID is #002. If a target
node ID is duplicated and you want to change the target node ID, click the Change Target
Node ID Button and change the target ID.
To Next Page
