Omron Sysmac NJ-series

7 Tag Data Link Functions
7-42
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
2 Select Auto Connection Configuration from the Network Menu. The connections will be set
automatically.

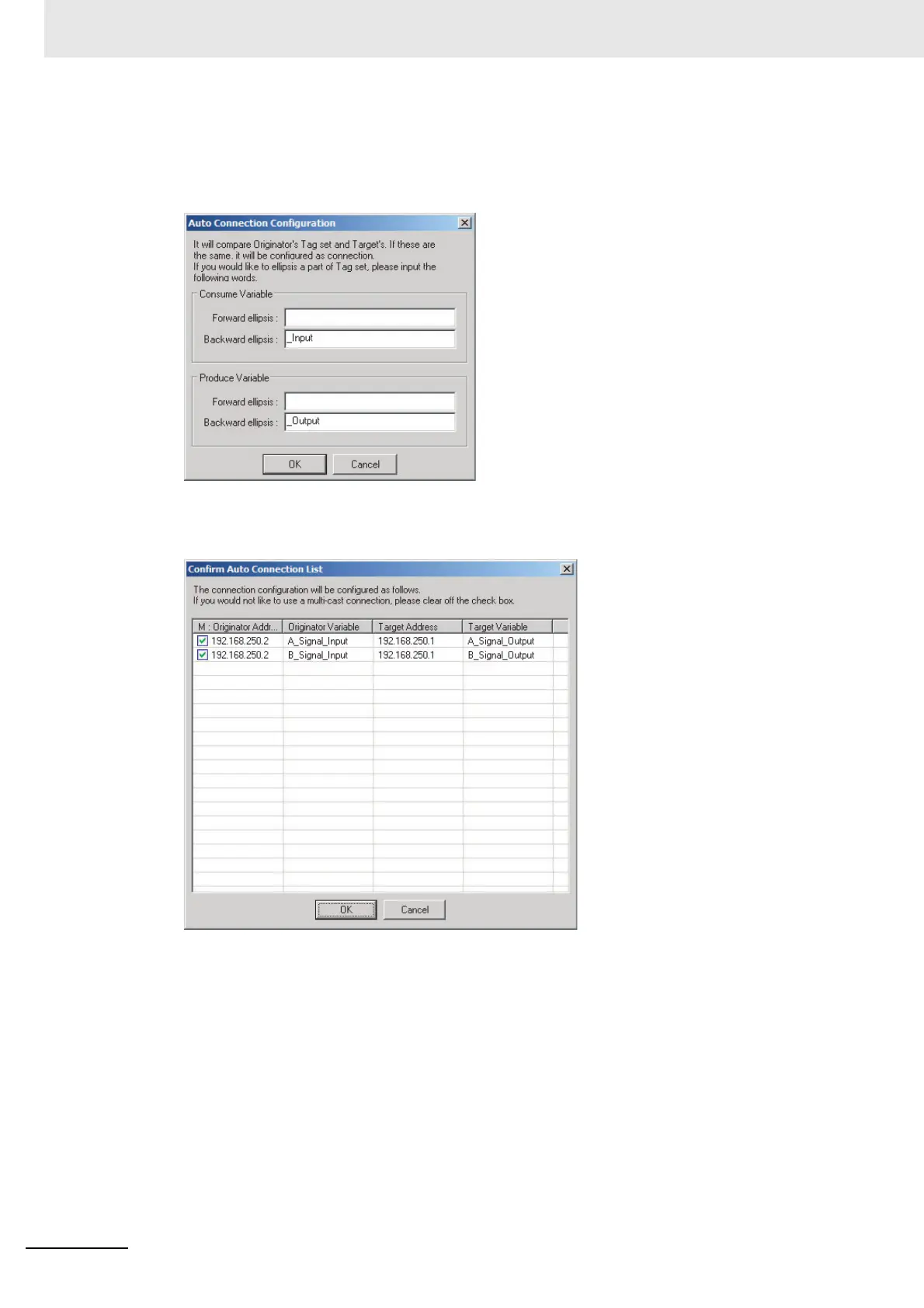

A dialog box will appear to set forward and backward ellipses for both output and input tag sets
as soon as automatic connection setting processing has begun.
Input the ellipses and click the OK Button. Processing for automatic setting is started.
3 If there are tag sets that meet the conditions for automatic connection setting, they are dis-
played.
Click the OK Button. Processing for automatic setting is started.
