7-47
7 Tag Data Link Functions
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
7-2 Setting Tag Data Links
7
7-2-6 Creating Connections Using the Wizard
5

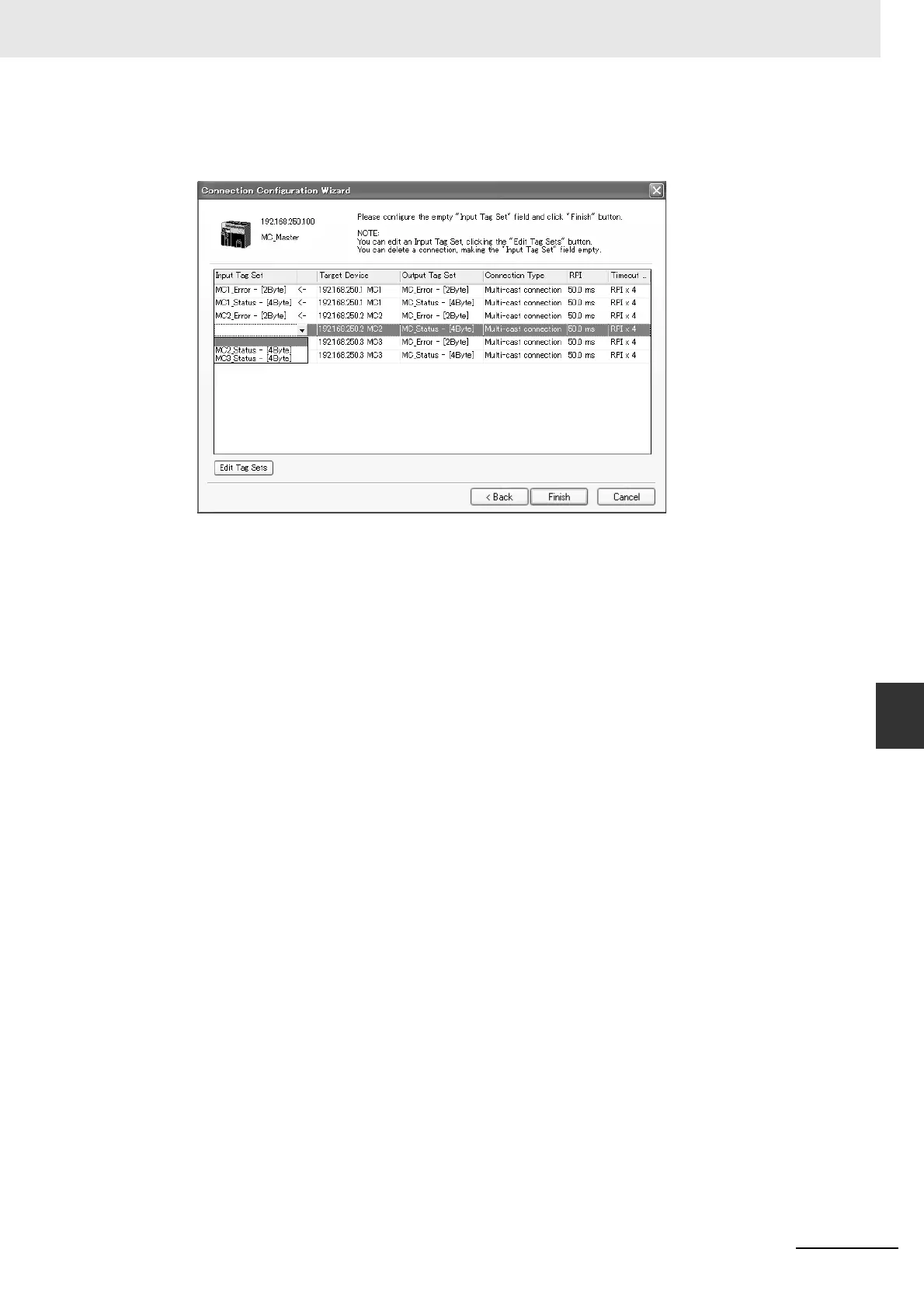

Click the Next Button to switch to the table in the following Wizard Dialog Box. Follow the
instructions to select the input tag set of the originator device that receives the output tag set of
the target device from the list box.
• The blank area in the Input Tag Set Column is the connection that you are creating.
• The rows in which there are input tag sets are connections that are already set.
• To prevent duplicate settings, input tag sets that have been used are not displayed in the list
box for input tag sets.
• If there is no applicable input tag set, you can edit a tag set or create a new one by using the
Edit Tag Sets Button and Edit Tag Button.
6
Once the input tag set settings have been completed, click the Finish Button. You can check
the set connection by selecting Network - View Devices Connection Structure Tree from the
menus.
• The Wizard can be ended even if the input tag set includes a blank row. In that case, a con-
nection is not created for the blank row.
• You can delete a connection by deleting the input tag sets that were previously set.
To Next Page
